Korloy Auto Tools MSB Micro Boring Tool MGRR Round Grooving

Korloy Auto Tools MSB Micro Boring Tool MGRR Round Grooving

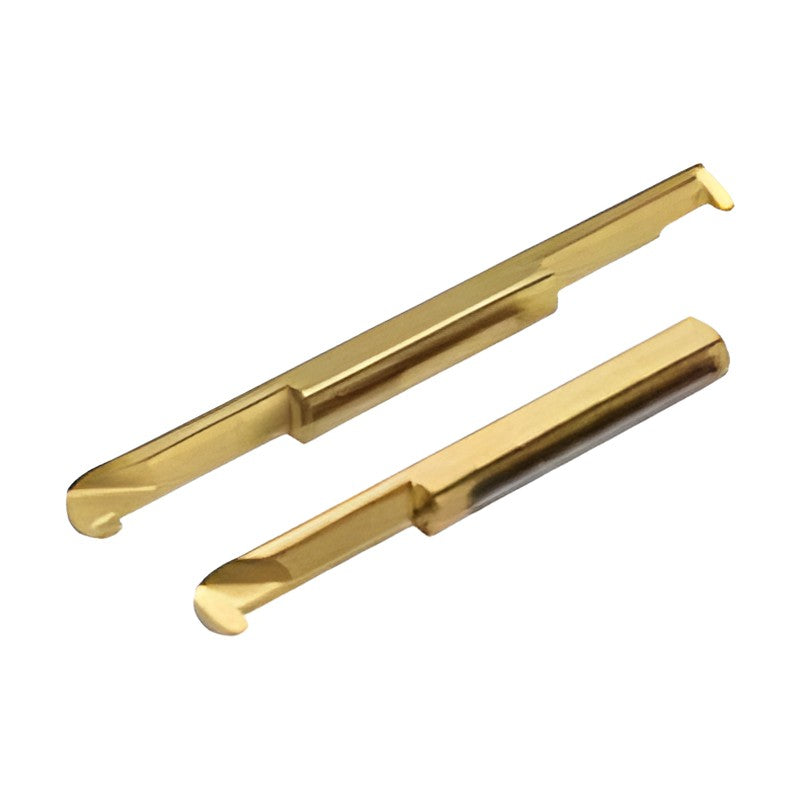

Solid carbide micro small boring tool MGRR for round grooving of small bores on automatic lathes.

Key features

  • Micro small boring bar (MSB) for small-bore machining on automatic lathes
  • High-hardness grade PC30M for long tool life
  • Twin-edge (double-ended) and single-edge versions
  • For fittings, valves, medical and automotive parts
  • Used with SL sleeves

Specifications

Series MGRR
Application Round Grooving
Grade PC30M (coated)
Grades PC30M
Stock Not marked as stock item
MGRR0310-0.8 Bore diameter Ød (mm): 3.0 | Min. machining dia. (mm): 3.2 | Groove width / radius size (mm): 0.8 | Cutting length ℓ (mm): 10 | Overall length L double-ended (mm): 40 | Overall length L single-ended (mm): 35 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0310-0.8-1 Bore diameter Ød (mm): 3.0 | Min. machining dia. (mm): 3.2 | Groove width / radius size (mm): 0.8 | Cutting length ℓ (mm): 10 | Overall length L double-ended (mm): 40 | Overall length L single-ended (mm): 35 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0315-0.8 Bore diameter Ød (mm): 3.0 | Min. machining dia. (mm): 3.2 | Groove width / radius size (mm): 0.8 | Cutting length ℓ (mm): 15 | Overall length L double-ended (mm): 50 | Overall length L single-ended (mm): 45 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0315-0.8-1 Bore diameter Ød (mm): 3.0 | Min. machining dia. (mm): 3.2 | Groove width / radius size (mm): 0.8 | Cutting length ℓ (mm): 15 | Overall length L double-ended (mm): 50 | Overall length L single-ended (mm): 45 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0410-1.0 Bore diameter Ød (mm): 4.0 | Min. machining dia. (mm): 4.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 10 | Overall length L double-ended (mm): 40 | Overall length L single-ended (mm): 35 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0410-1.0-1 Bore diameter Ød (mm): 4.0 | Min. machining dia. (mm): 4.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 10 | Overall length L double-ended (mm): 40 | Overall length L single-ended (mm): 35 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0420-1.0 Bore diameter Ød (mm): 4.0 | Min. machining dia. (mm): 4.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 60 | Overall length L single-ended (mm): 50 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0420-1.0-1 Bore diameter Ød (mm): 4.0 | Min. machining dia. (mm): 4.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 60 | Overall length L single-ended (mm): 50 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0610-1.0 Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 10 | Overall length L double-ended (mm): 45 | Overall length L single-ended (mm): 40 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0610-1.0-1 Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 10 | Overall length L double-ended (mm): 45 | Overall length L single-ended (mm): 40 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0620-1.0 Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 65 | Overall length L single-ended (mm): 50 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0620-1.0-1 Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 65 | Overall length L single-ended (mm): 50 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0610-1.5 Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 1.5 | Cutting length ℓ (mm): 10 | Overall length L double-ended (mm): 45 | Overall length L single-ended (mm): 40 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0610-1.5-1 Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 1.5 | Cutting length ℓ (mm): 10 | Overall length L double-ended (mm): 45 | Overall length L single-ended (mm): 40 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0620-1.5 Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 1.5 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 65 | Overall length L single-ended (mm): 50 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0620-1.5-1 Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 1.5 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 65 | Overall length L single-ended (mm): 50 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0610-2.0 Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 2.0 | Cutting length ℓ (mm): 10 | Overall length L double-ended (mm): 45 | Overall length L single-ended (mm): 40 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0610-2.0-1 Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 2.0 | Cutting length ℓ (mm): 10 | Overall length L double-ended (mm): 45 | Overall length L single-ended (mm): 40 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0620-2.0 Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 2.0 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 65 | Overall length L single-ended (mm): 50 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0620-2.0-1 Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 2.0 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 65 | Overall length L single-ended (mm): 50 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0820-1.0 Bore diameter Ød (mm): 8.0 | Min. machining dia. (mm): 8.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 70 | Overall length L single-ended (mm): 60 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0820-1.0-1 Bore diameter Ød (mm): 8.0 | Min. machining dia. (mm): 8.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 70 | Overall length L single-ended (mm): 60 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0820-1.5 Bore diameter Ød (mm): 8.0 | Min. machining dia. (mm): 8.2 | Groove width / radius size (mm): 1.5 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 70 | Overall length L single-ended (mm): 60 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0820-1.5-1 Bore diameter Ød (mm): 8.0 | Min. machining dia. (mm): 8.2 | Groove width / radius size (mm): 1.5 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 70 | Overall length L single-ended (mm): 60 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0820-2.0 Bore diameter Ød (mm): 8.0 | Min. machining dia. (mm): 8.2 | Groove width / radius size (mm): 2.0 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 70 | Overall length L single-ended (mm): 60 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0820-2.0-1 Bore diameter Ød (mm): 8.0 | Min. machining dia. (mm): 8.2 | Groove width / radius size (mm): 2.0 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 70 | Overall length L single-ended (mm): 60 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR1025-1.0 Bore diameter Ød (mm): 10.0 | Min. machining dia. (mm): 10.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 25 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR1025-1.0-1 Bore diameter Ød (mm): 10.0 | Min. machining dia. (mm): 10.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 25 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR1025-1.5 Bore diameter Ød (mm): 10.0 | Min. machining dia. (mm): 10.2 | Groove width / radius size (mm): 1.5 | Cutting length ℓ (mm): 25 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR1025-1.5-1 Bore diameter Ød (mm): 10.0 | Min. machining dia. (mm): 10.2 | Groove width / radius size (mm): 1.5 | Cutting length ℓ (mm): 25 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR1025-2.0 Bore diameter Ød (mm): 10.0 | Min. machining dia. (mm): 10.2 | Groove width / radius size (mm): 2.0 | Cutting length ℓ (mm): 25 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR1025-2.0-1 Bore diameter Ød (mm): 10.0 | Min. machining dia. (mm): 10.2 | Groove width / radius size (mm): 2.0 | Cutting length ℓ (mm): 25 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
Boring BarsKorloy
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools MSB Micro Boring Tool MGRR Round Grooving

Brand Korloy·Boring Bars

Available part numbers (32)

MGRR0310-0.8, MGRR0310-0.8-1, MGRR0315-0.8, MGRR0315-0.8-1, MGRR0410-1.0, MGRR0410-1.0-1, MGRR0420-1.0, MGRR0420-1.0-1, MGRR0610-1.0, MGRR0610-1.0-1 + 22 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MGRR0310-0.8Bore diameter Ød (mm): 3.0 | Min. machining dia. (mm): 3.2 | Groove width / radius size (mm): 0.8 | Cutting length ℓ (mm): 10 | Overall length L double-ended (mm): 40 | Overall length L single-ended (mm): 35 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0310-0.8-1Bore diameter Ød (mm): 3.0 | Min. machining dia. (mm): 3.2 | Groove width / radius size (mm): 0.8 | Cutting length ℓ (mm): 10 | Overall length L double-ended (mm): 40 | Overall length L single-ended (mm): 35 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0315-0.8Bore diameter Ød (mm): 3.0 | Min. machining dia. (mm): 3.2 | Groove width / radius size (mm): 0.8 | Cutting length ℓ (mm): 15 | Overall length L double-ended (mm): 50 | Overall length L single-ended (mm): 45 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0315-0.8-1Bore diameter Ød (mm): 3.0 | Min. machining dia. (mm): 3.2 | Groove width / radius size (mm): 0.8 | Cutting length ℓ (mm): 15 | Overall length L double-ended (mm): 50 | Overall length L single-ended (mm): 45 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0410-1.0Bore diameter Ød (mm): 4.0 | Min. machining dia. (mm): 4.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 10 | Overall length L double-ended (mm): 40 | Overall length L single-ended (mm): 35 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0410-1.0-1Bore diameter Ød (mm): 4.0 | Min. machining dia. (mm): 4.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 10 | Overall length L double-ended (mm): 40 | Overall length L single-ended (mm): 35 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0420-1.0Bore diameter Ød (mm): 4.0 | Min. machining dia. (mm): 4.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 60 | Overall length L single-ended (mm): 50 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0420-1.0-1Bore diameter Ød (mm): 4.0 | Min. machining dia. (mm): 4.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 60 | Overall length L single-ended (mm): 50 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0610-1.0Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 10 | Overall length L double-ended (mm): 45 | Overall length L single-ended (mm): 40 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0610-1.0-1Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 10 | Overall length L double-ended (mm): 45 | Overall length L single-ended (mm): 40 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0620-1.0Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 65 | Overall length L single-ended (mm): 50 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0620-1.0-1Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 65 | Overall length L single-ended (mm): 50 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0610-1.5Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 1.5 | Cutting length ℓ (mm): 10 | Overall length L double-ended (mm): 45 | Overall length L single-ended (mm): 40 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0610-1.5-1Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 1.5 | Cutting length ℓ (mm): 10 | Overall length L double-ended (mm): 45 | Overall length L single-ended (mm): 40 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0620-1.5Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 1.5 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 65 | Overall length L single-ended (mm): 50 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0620-1.5-1Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 1.5 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 65 | Overall length L single-ended (mm): 50 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0610-2.0Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 2.0 | Cutting length ℓ (mm): 10 | Overall length L double-ended (mm): 45 | Overall length L single-ended (mm): 40 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0610-2.0-1Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 2.0 | Cutting length ℓ (mm): 10 | Overall length L double-ended (mm): 45 | Overall length L single-ended (mm): 40 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0620-2.0Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 2.0 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 65 | Overall length L single-ended (mm): 50 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0620-2.0-1Bore diameter Ød (mm): 6.0 | Min. machining dia. (mm): 6.2 | Groove width / radius size (mm): 2.0 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 65 | Overall length L single-ended (mm): 50 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0820-1.0Bore diameter Ød (mm): 8.0 | Min. machining dia. (mm): 8.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 70 | Overall length L single-ended (mm): 60 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0820-1.0-1Bore diameter Ød (mm): 8.0 | Min. machining dia. (mm): 8.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 70 | Overall length L single-ended (mm): 60 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0820-1.5Bore diameter Ød (mm): 8.0 | Min. machining dia. (mm): 8.2 | Groove width / radius size (mm): 1.5 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 70 | Overall length L single-ended (mm): 60 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0820-1.5-1Bore diameter Ød (mm): 8.0 | Min. machining dia. (mm): 8.2 | Groove width / radius size (mm): 1.5 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 70 | Overall length L single-ended (mm): 60 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0820-2.0Bore diameter Ød (mm): 8.0 | Min. machining dia. (mm): 8.2 | Groove width / radius size (mm): 2.0 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 70 | Overall length L single-ended (mm): 60 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR0820-2.0-1Bore diameter Ød (mm): 8.0 | Min. machining dia. (mm): 8.2 | Groove width / radius size (mm): 2.0 | Cutting length ℓ (mm): 20 | Overall length L double-ended (mm): 70 | Overall length L single-ended (mm): 60 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR1025-1.0Bore diameter Ød (mm): 10.0 | Min. machining dia. (mm): 10.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 25 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR1025-1.0-1Bore diameter Ød (mm): 10.0 | Min. machining dia. (mm): 10.2 | Groove width / radius size (mm): 1.0 | Cutting length ℓ (mm): 25 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR1025-1.5Bore diameter Ød (mm): 10.0 | Min. machining dia. (mm): 10.2 | Groove width / radius size (mm): 1.5 | Cutting length ℓ (mm): 25 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR1025-1.5-1Bore diameter Ød (mm): 10.0 | Min. machining dia. (mm): 10.2 | Groove width / radius size (mm): 1.5 | Cutting length ℓ (mm): 25 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR1025-2.0Bore diameter Ød (mm): 10.0 | Min. machining dia. (mm): 10.2 | Groove width / radius size (mm): 2.0 | Cutting length ℓ (mm): 25 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Twin edge (double ended) | Grades: PC30M | Stock: Not marked as stock item
MGRR1025-2.0-1Bore diameter Ød (mm): 10.0 | Min. machining dia. (mm): 10.2 | Groove width / radius size (mm): 2.0 | Cutting length ℓ (mm): 25 | Overall length L double-ended (mm): 80 | Overall length L single-ended (mm): 70 | Edge: Single edge (single ended) | Grades: PC30M | Stock: Not marked as stock item
