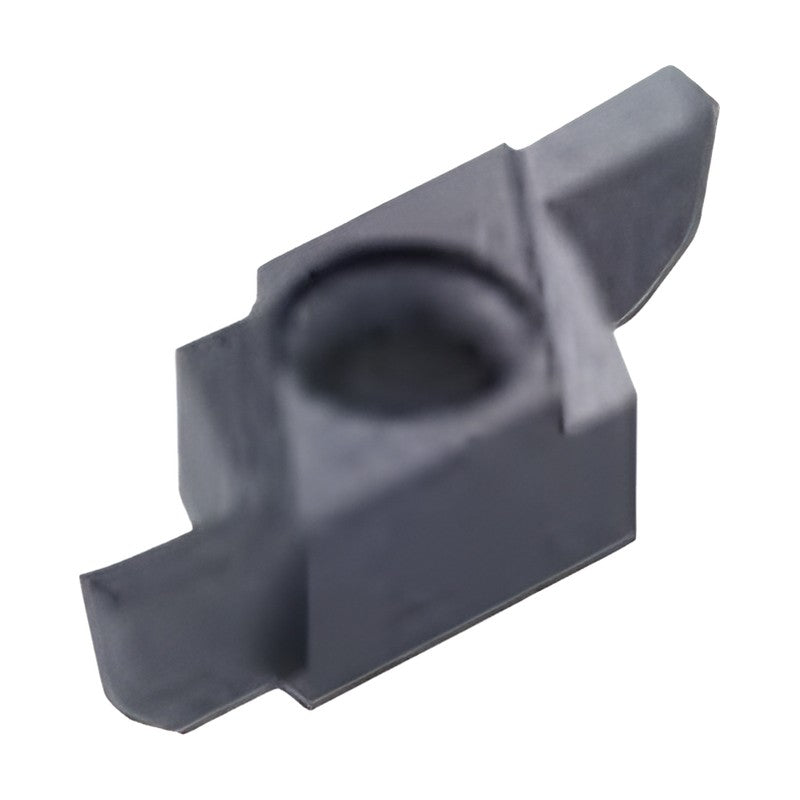

Korloy Auto Tools Multi-Utility Insert SGBR/L Grooving and Back Turning

Korloy Auto Tools Multi-Utility Insert SGBR/L Grooving and Back Turning

Multifunctional grooving and back-turning insert for automatic lathes, used in SXGNR/L holders.

Key features

  • Multifunctional insert system (grooving, threading, back turning, grooving/back turning, parting)
  • Coated grade PC9030
  • Corner radius variants R00 / R05 / R10
  • Fits SXGNR/L holders

Specifications

Application Grooving and Back Turning
Grade PC9030
w (mm) 8
Hand R/L (printed as R/L designation)
Stock Not marked as stock item
Grades PC9030
SGBR/L0604520-R00 Width b (mm): 2 | w (mm): 8 | Length L (mm): 22 | Corner radius r (mm): 0 | h (mm): 6 | T-max (mm): 4.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0604520-R05 Width b (mm): 2 | w (mm): 8 | Length L (mm): 22 | Corner radius r (mm): 0.05 | h (mm): 6 | T-max (mm): 4.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0604520-R10 Width b (mm): 2 | w (mm): 8 | Length L (mm): 22 | Corner radius r (mm): 0.1 | h (mm): 6 | T-max (mm): 4.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0604525-R00 Width b (mm): 2.5 | w (mm): 8 | Length L (mm): 22 | Corner radius r (mm): 0 | h (mm): 6 | T-max (mm): 4.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0604525-R05 Width b (mm): 2.5 | w (mm): 8 | Length L (mm): 22 | Corner radius r (mm): 0.05 | h (mm): 6 | T-max (mm): 4.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0604525-R10 Width b (mm): 2.5 | w (mm): 8 | Length L (mm): 22 | Corner radius r (mm): 0.1 | h (mm): 6 | T-max (mm): 4.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0605530-R00 Width b (mm): 3 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0 | h (mm): 6 | T-max (mm): 5.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0605530-R05 Width b (mm): 3 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0.05 | h (mm): 6 | T-max (mm): 5.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0605530-R10 Width b (mm): 3 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0.1 | h (mm): 6 | T-max (mm): 5.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0805525-R00 Width b (mm): 2.5 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0 | h (mm): 8 | T-max (mm): 5.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0805525-R05 Width b (mm): 2.5 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0.05 | h (mm): 8 | T-max (mm): 5.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0805525-R10 Width b (mm): 2.5 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0.1 | h (mm): 8 | T-max (mm): 5.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0806530-R00 Width b (mm): 3 | w (mm): 8 | Length L (mm): 26 | Corner radius r (mm): 0 | h (mm): 8 | T-max (mm): 6.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0806530-R05 Width b (mm): 3 | w (mm): 8 | Length L (mm): 26 | Corner radius r (mm): 0.05 | h (mm): 8 | T-max (mm): 6.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0806530-R10 Width b (mm): 3 | w (mm): 8 | Length L (mm): 26 | Corner radius r (mm): 0.1 | h (mm): 8 | T-max (mm): 6.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
Grooving InsertsKorloy
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools Multi-Utility Insert SGBR/L Grooving and Back Turning

Brand Korloy·Grooving Inserts

Available part numbers (15)

SGBR/L0604520-R00, SGBR/L0604520-R05, SGBR/L0604520-R10, SGBR/L0604525-R00, SGBR/L0604525-R05, SGBR/L0604525-R10, SGBR/L0605530-R00, SGBR/L0605530-R05, SGBR/L0605530-R10, SGBR/L0805525-R00 + 5 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SGBR/L0604520-R00Width b (mm): 2 | w (mm): 8 | Length L (mm): 22 | Corner radius r (mm): 0 | h (mm): 6 | T-max (mm): 4.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0604520-R05Width b (mm): 2 | w (mm): 8 | Length L (mm): 22 | Corner radius r (mm): 0.05 | h (mm): 6 | T-max (mm): 4.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0604520-R10Width b (mm): 2 | w (mm): 8 | Length L (mm): 22 | Corner radius r (mm): 0.1 | h (mm): 6 | T-max (mm): 4.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0604525-R00Width b (mm): 2.5 | w (mm): 8 | Length L (mm): 22 | Corner radius r (mm): 0 | h (mm): 6 | T-max (mm): 4.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0604525-R05Width b (mm): 2.5 | w (mm): 8 | Length L (mm): 22 | Corner radius r (mm): 0.05 | h (mm): 6 | T-max (mm): 4.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0604525-R10Width b (mm): 2.5 | w (mm): 8 | Length L (mm): 22 | Corner radius r (mm): 0.1 | h (mm): 6 | T-max (mm): 4.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0605530-R00Width b (mm): 3 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0 | h (mm): 6 | T-max (mm): 5.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0605530-R05Width b (mm): 3 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0.05 | h (mm): 6 | T-max (mm): 5.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0605530-R10Width b (mm): 3 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0.1 | h (mm): 6 | T-max (mm): 5.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0805525-R00Width b (mm): 2.5 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0 | h (mm): 8 | T-max (mm): 5.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0805525-R05Width b (mm): 2.5 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0.05 | h (mm): 8 | T-max (mm): 5.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0805525-R10Width b (mm): 2.5 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0.1 | h (mm): 8 | T-max (mm): 5.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0806530-R00Width b (mm): 3 | w (mm): 8 | Length L (mm): 26 | Corner radius r (mm): 0 | h (mm): 8 | T-max (mm): 6.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0806530-R05Width b (mm): 3 | w (mm): 8 | Length L (mm): 26 | Corner radius r (mm): 0.05 | h (mm): 8 | T-max (mm): 6.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGBR/L0806530-R10Width b (mm): 3 | w (mm): 8 | Length L (mm): 26 | Corner radius r (mm): 0.1 | h (mm): 8 | T-max (mm): 6.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
