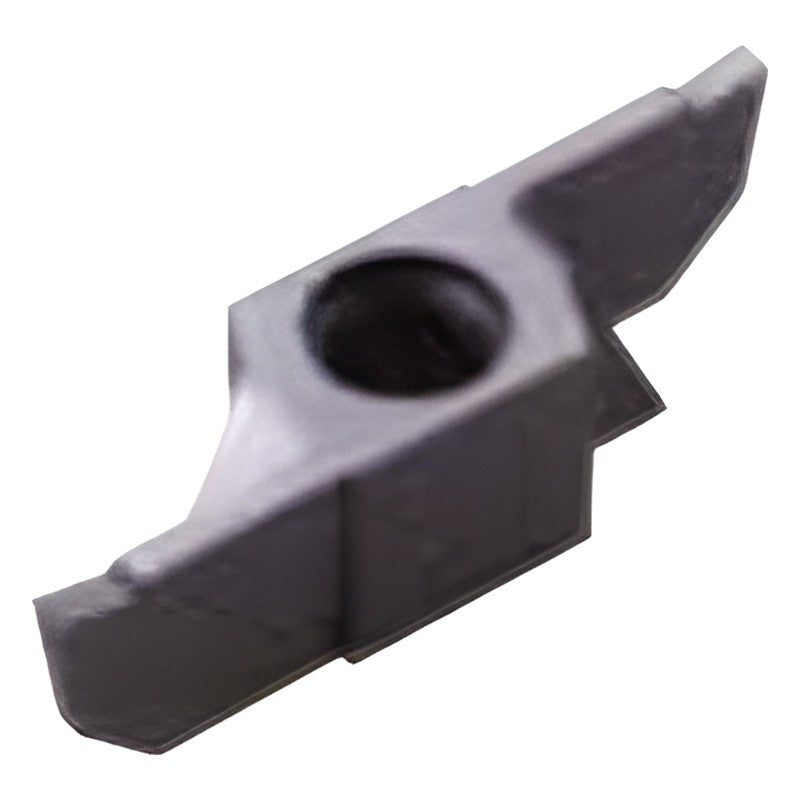

Korloy Auto Tools Multi-Utility Insert SGR/L Grooving

Korloy Auto Tools Multi-Utility Insert SGR/L Grooving

Multifunctional grooving insert for automatic lathes, used in SXGNR/L holders.

Key features

  • Multifunctional insert system (grooving, threading, back turning, grooving/back turning, parting)
  • Coated grade PC9030
  • Corner radius variants R00 / R05 / R10
  • Fits SXGNR/L holders

Specifications

Application Grooving
Grade PC9030
w (mm) 8
SGR/L060610-R00 Width b (mm): 1 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0 | h (mm): 6 | Max. ØD (mm): 11 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR060610-R05 PC9030 Width b (mm): 1 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0.05 | h (mm): 6 | Max. ØD (mm): 11 | Hand: Right | Stock: Yes | Grade: PC9030
SGR060610-R10 PC9030 Width b (mm): 1 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0.1 | h (mm): 6 | Max. ØD (mm): 11 | Hand: Right | Stock: Yes | Grade: PC9030
SGR/L060615-R00 Width b (mm): 1.5 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0 | h (mm): 6 | Max. ØD (mm): 11 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR060615-R05 PC9030 Width b (mm): 1.5 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0.05 | h (mm): 6 | Max. ØD (mm): 11 | Hand: Right | Stock: Yes | Grade: PC9030
SGR060615-R10 PC9030 Width b (mm): 1.5 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0.1 | h (mm): 6 | Max. ØD (mm): 11 | Hand: Right | Stock: Yes | Grade: PC9030
SGR/L060620-R00 Width b (mm): 2 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0 | h (mm): 6 | Max. ØD (mm): 11 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L060620-R05 Width b (mm): 2 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0.05 | h (mm): 6 | Max. ØD (mm): 11 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L060620-R10 Width b (mm): 2 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0.1 | h (mm): 6 | Max. ØD (mm): 11 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L081015-R00 Width b (mm): 1.5 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L081015-R05 Width b (mm): 1.5 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0.05 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L081015-R10 Width b (mm): 1.5 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0.1 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L081020-R00 Width b (mm): 2 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR081020-R05 PC9030 Width b (mm): 2 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0.05 | h (mm): 8 | Max. ØD (mm): 18 | Hand: Right | Stock: Yes | Grade: PC9030
SGR/L081020-R10 Width b (mm): 2 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0.1 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L081025-R00 Width b (mm): 2.5 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L081025-R05 Width b (mm): 2.5 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0.05 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L081025-R10 Width b (mm): 2.5 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0.1 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L081030-R00 Width b (mm): 3 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L081030-R05 Width b (mm): 3 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0.05 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L081030-R10 Width b (mm): 3 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0.1 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
Grooving InsertsKorloy
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools Multi-Utility Insert SGR/L Grooving

Brand Korloy·Grooving Inserts

Available part numbers (21)

SGR/L060610-R00, SGR060610-R05 PC9030, SGR060610-R10 PC9030, SGR/L060615-R00, SGR060615-R05 PC9030, SGR060615-R10 PC9030, SGR/L060620-R00, SGR/L060620-R05, SGR/L060620-R10, SGR/L081015-R00 + 11 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SGR/L060610-R00Width b (mm): 1 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0 | h (mm): 6 | Max. ØD (mm): 11 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR060610-R05 PC9030Width b (mm): 1 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0.05 | h (mm): 6 | Max. ØD (mm): 11 | Hand: Right | Stock: Yes | Grade: PC9030
SGR060610-R10 PC9030Width b (mm): 1 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0.1 | h (mm): 6 | Max. ØD (mm): 11 | Hand: Right | Stock: Yes | Grade: PC9030
SGR/L060615-R00Width b (mm): 1.5 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0 | h (mm): 6 | Max. ØD (mm): 11 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR060615-R05 PC9030Width b (mm): 1.5 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0.05 | h (mm): 6 | Max. ØD (mm): 11 | Hand: Right | Stock: Yes | Grade: PC9030
SGR060615-R10 PC9030Width b (mm): 1.5 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0.1 | h (mm): 6 | Max. ØD (mm): 11 | Hand: Right | Stock: Yes | Grade: PC9030
SGR/L060620-R00Width b (mm): 2 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0 | h (mm): 6 | Max. ØD (mm): 11 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L060620-R05Width b (mm): 2 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0.05 | h (mm): 6 | Max. ØD (mm): 11 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L060620-R10Width b (mm): 2 | w (mm): 8 | Length L (mm): 24 | Corner radius r (mm): 0.1 | h (mm): 6 | Max. ØD (mm): 11 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L081015-R00Width b (mm): 1.5 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L081015-R05Width b (mm): 1.5 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0.05 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L081015-R10Width b (mm): 1.5 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0.1 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L081020-R00Width b (mm): 2 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR081020-R05 PC9030Width b (mm): 2 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0.05 | h (mm): 8 | Max. ØD (mm): 18 | Hand: Right | Stock: Yes | Grade: PC9030
SGR/L081020-R10Width b (mm): 2 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0.1 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L081025-R00Width b (mm): 2.5 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L081025-R05Width b (mm): 2.5 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0.05 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L081025-R10Width b (mm): 2.5 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0.1 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L081030-R00Width b (mm): 3 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L081030-R05Width b (mm): 3 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0.05 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
SGR/L081030-R10Width b (mm): 3 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0.1 | h (mm): 8 | Max. ØD (mm): 18 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
