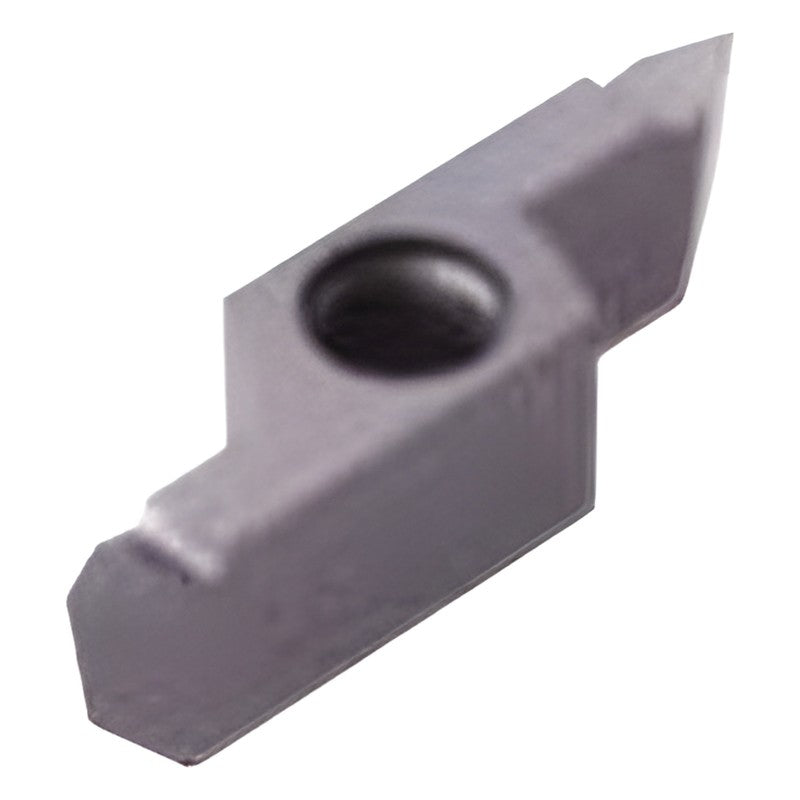

Korloy Auto Tools Multi-Utility Insert STR/L Threading

Korloy Auto Tools Multi-Utility Insert STR/L Threading

Multifunctional threading insert for automatic lathes, used in SXGNR/L holders.

Key features

  • Multifunctional insert system (grooving, threading, back turning, grooving/back turning, parting)
  • Coated grade PC9030
  • 60° thread profile for pitch 0.5~3.0 mm
  • Fits SXGNR/L holders

Specifications

Application Threading
Grade PC9030
Width b (mm) 3.2
w (mm) 8
Hand R/L (printed as R/L designation)
Stock Not marked as stock item
Grades PC9030
STR/L06073215 Width b (mm): 3.2 | w (mm): 8 | Length L (mm): 25 | Corner radius r (mm): 0.06 | h (mm): 6 | T-max (mm): 7 | Pitch (mm): 0.5 ~1.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
STR/L06073230 Width b (mm): 3.2 | w (mm): 8 | Length L (mm): 25 | Corner radius r (mm): 0.19 | h (mm): 6 | T-max (mm): 7 | Pitch (mm): 1.5 ~3.0 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
STR/L08103215 Width b (mm): 3.2 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0.06 | h (mm): 8 | T-max (mm): 10.5 | Pitch (mm): 0.5 ~1.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
STR/L08103230 Width b (mm): 3.2 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0.19 | h (mm): 8 | T-max (mm): 10.5 | Pitch (mm): 1.5 ~3.0 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
Threading InsertsKorloy
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Auto Tools Multi-Utility Insert STR/L Threading

Brand Korloy·Threading Inserts

Available part numbers (4)

STR/L06073215, STR/L06073230, STR/L08103215, STR/L08103230

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STR/L06073215Width b (mm): 3.2 | w (mm): 8 | Length L (mm): 25 | Corner radius r (mm): 0.06 | h (mm): 6 | T-max (mm): 7 | Pitch (mm): 0.5 ~1.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
STR/L06073230Width b (mm): 3.2 | w (mm): 8 | Length L (mm): 25 | Corner radius r (mm): 0.19 | h (mm): 6 | T-max (mm): 7 | Pitch (mm): 1.5 ~3.0 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
STR/L08103215Width b (mm): 3.2 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0.06 | h (mm): 8 | T-max (mm): 10.5 | Pitch (mm): 0.5 ~1.5 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
STR/L08103230Width b (mm): 3.2 | w (mm): 8 | Length L (mm): 31 | Corner radius r (mm): 0.19 | h (mm): 8 | T-max (mm): 10.5 | Pitch (mm): 1.5 ~3.0 | Hand: R/L (printed as R/L designation) | Stock: Not marked as stock item | Grades: PC9030
