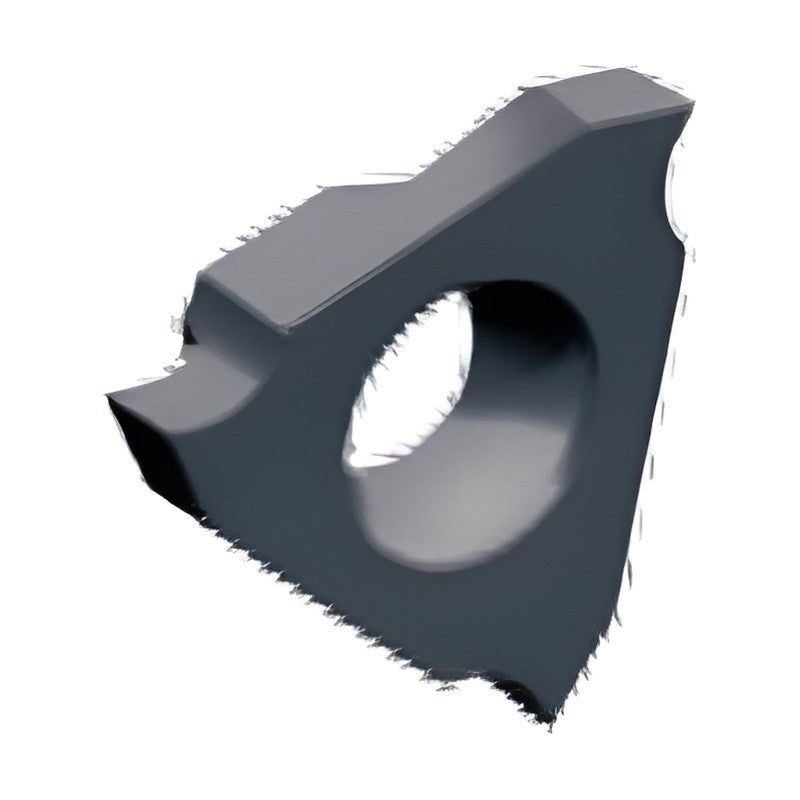

Korloy Auto Tools TBGF Precision Grooving Insert

Korloy Auto Tools TBGF Precision Grooving Insert

Economical 3-corner ground insert for precision small-width grooving on automatic lathes.

Key features

  • Economical 3-cornered insert for precision grooving
  • Groove widths 0.33~2.5 mm
  • Stable chip control in grooving
  • Grades PC5300 and PC8110
  • For TBGFH holders

Specifications

Insert type TBGF 3-corner grooving
Inscribed circle (mm) 9.525
Thickness w (mm) 3.18
Inscribed circle d (mm) 9.525
TBGF3033R-005 Groove width b (mm): 0.33 | Max. groove depth g (mm): 0.8 | Corner radius r (mm): 0.05 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grades: PC5300 / PC8110 | Stock: Not marked as stock item
TBGF3050R-005 PC5300 Groove width b (mm): 0.50 | Max. groove depth g (mm): 1.2 | Corner radius r (mm): 0.05 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC5300 | Stock: Yes
TBGF3050R-005 PC8110 Groove width b (mm): 0.50 | Max. groove depth g (mm): 1.2 | Corner radius r (mm): 0.05 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC8110 | Stock: Yes
TBGF3075R-010 PC5300 Groove width b (mm): 0.75 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC5300 | Stock: Yes
TBGF3075R-010 PC8110 Groove width b (mm): 0.75 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC8110 | Stock: Yes
TBGF3080R-010 Groove width b (mm): 0.80 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grades: PC5300 / PC8110 | Stock: Not marked as stock item
TBGF3100R-010 PC5300 Groove width b (mm): 1.00 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC5300 | Stock: Yes
TBGF3100R-010 PC8110 Groove width b (mm): 1.00 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC8110 | Stock: Yes
TBGF3120R-010 PC5300 Groove width b (mm): 1.20 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC5300 | Stock: Yes
TBGF3120R-010 PC8110 Groove width b (mm): 1.20 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC8110 | Stock: Yes
TBGF3125R-010 PC5300 Groove width b (mm): 1.25 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC5300 | Stock: Yes
TBGF3125R-010 PC8110 Groove width b (mm): 1.25 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC8110 | Stock: Yes
TBGF3140R-010 PC5300 Groove width b (mm): 1.40 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC5300 | Stock: Yes
TBGF3140R-010 PC8110 Groove width b (mm): 1.40 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC8110 | Stock: Yes
TBGF3145R-010 PC5300 Groove width b (mm): 1.45 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC5300 | Stock: Yes
TBGF3145R-010 PC8110 Groove width b (mm): 1.45 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC8110 | Stock: Yes
TBGF3150R-010 PC5300 Groove width b (mm): 1.50 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC5300 | Stock: Yes
TBGF3150R-010 PC8110 Groove width b (mm): 1.50 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC8110 | Stock: Yes
TBGF3175R-010 PC5300 Groove width b (mm): 1.75 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC5300 | Stock: Yes
TBGF3175R-010 PC8110 Groove width b (mm): 1.75 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC8110 | Stock: Yes
TBGF3200R-010 PC5300 Groove width b (mm): 2.00 | Max. groove depth g (mm): 2.5 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC5300 | Stock: Yes
TBGF3200R-010 PC8110 Groove width b (mm): 2.00 | Max. groove depth g (mm): 2.5 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC8110 | Stock: Yes
TBGF3250R-010 PC5300 Groove width b (mm): 2.50 | Max. groove depth g (mm): 2.5 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC5300 | Stock: Yes
TBGF3250R-010 PC8110 Groove width b (mm): 2.50 | Max. groove depth g (mm): 2.5 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Right | Grade: PC8110 | Stock: Yes
TBGF3033L-005 Groove width b (mm): 0.33 | Max. groove depth g (mm): 0.8 | Corner radius r (mm): 0.05 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Left | Grades: PC5300 / PC8110 | Stock: Not marked as stock item
TBGF3050L-005 Groove width b (mm): 0.50 | Max. groove depth g (mm): 1.2 | Corner radius r (mm): 0.05 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Left | Grades: PC5300 / PC8110 | Stock: Not marked as stock item
TBGF3075L-010 Groove width b (mm): 0.75 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Left | Grades: PC5300 / PC8110 | Stock: Not marked as stock item
TBGF3080L-010 Groove width b (mm): 0.80 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Left | Grades: PC5300 / PC8110 | Stock: Not marked as stock item
TBGF3100L-010 Groove width b (mm): 1.00 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Left | Grades: PC5300 / PC8110 | Stock: Not marked as stock item
TBGF3120L-010 Groove width b (mm): 1.20 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Left | Grades: PC5300 / PC8110 | Stock: Not marked as stock item
TBGF3125L-010 Groove width b (mm): 1.25 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Left | Grades: PC5300 / PC8110 | Stock: Not marked as stock item
TBGF3140L-010 Groove width b (mm): 1.40 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Left | Grades: PC5300 / PC8110 | Stock: Not marked as stock item
TBGF3145L-010 Groove width b (mm): 1.45 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Left | Grades: PC5300 / PC8110 | Stock: Not marked as stock item
TBGF3150L-010 Groove width b (mm): 1.50 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Left | Grades: PC5300 / PC8110 | Stock: Not marked as stock item
TBGF3175L-010 Groove width b (mm): 1.75 | Max. groove depth g (mm): 2.0 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Left | Grades: PC5300 / PC8110 | Stock: Not marked as stock item
TBGF3200L-010 Groove width b (mm): 2.00 | Max. groove depth g (mm): 2.5 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Left | Grades: PC5300 / PC8110 | Stock: Not marked as stock item
TBGF3250L-010 Groove width b (mm): 2.50 | Max. groove depth g (mm): 2.5 | Corner radius r (mm): 0.10 | Thickness w (mm): 3.18 | Inscribed circle d (mm): 9.525 | Hand: Left | Grades: PC5300 / PC8110 | Stock: Not marked as stock item
Grooving InsertsKorloy
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →
