• Korloy Bead Removal Insert SDMX (External)
1 1

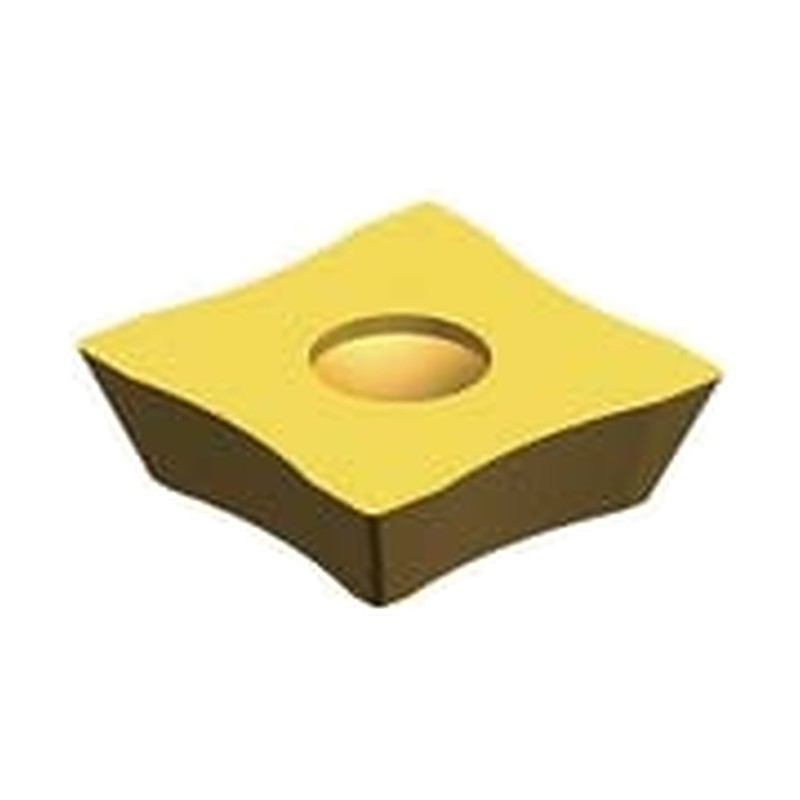

Korloy Bead Removal Insert SDMX (External)

Korloy Bead Removal Insert SDMX (External)

Insert with radiused cutting edges for removing the outer weld bead of welded pipe.

Key features

  • External weld bead removal

Specifications

Application External bead removal
SDMX85-R17 IC (mm): 25.4 | S (mm): 7.94 | L (mm): 16 | CEMR (mm): 17 | D1 (mm): 5.8 | RE (mm): 0.8
SDMX85-R18 IC (mm): 25.4 | S (mm): 7.94 | L (mm): 16 | CEMR (mm): 18 | D1 (mm): 5.8 | RE (mm): 0.8
SDMX85-R20 IC (mm): 25.4 | S (mm): 7.94 | L (mm): 16 | CEMR (mm): 20 | D1 (mm): 5.8 | RE (mm): 0.8
SDMX85-R30 IC (mm): 25.4 | S (mm): 7.94 | L (mm): 16 | CEMR (mm): 30 | D1 (mm): 5.8 | RE (mm): 0.8
SDMX85-80R-0 IC (mm): 25.4 | S (mm): 7.94 | L (mm): 23.8 | CEMR (mm): 80 | D1 (mm): 5.8 | RE (mm): 0.8
SDMX85-90R-0 IC (mm): 25.4 | S (mm): 7.94 | L (mm): 23.8 | CEMR (mm): 90 | D1 (mm): 5.8 | RE (mm): 0.8
SDMX85-100R-0 IC (mm): 25.4 | S (mm): 7.94 | L (mm): 23.8 | CEMR (mm): 100 | D1 (mm): 5.8 | RE (mm): 0.8
Bead Removal InsertsKorloy
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Bead Removal Insert SDMX (External)

Brand Korloy·Bead Removal Inserts

Available part numbers (7)

SDMX85-R17, SDMX85-R18, SDMX85-R20, SDMX85-R30, SDMX85-80R-0, SDMX85-90R-0, SDMX85-100R-0

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SDMX85-R17IC (mm): 25.4 | S (mm): 7.94 | L (mm): 16 | CEMR (mm): 17 | D1 (mm): 5.8 | RE (mm): 0.8
SDMX85-R18IC (mm): 25.4 | S (mm): 7.94 | L (mm): 16 | CEMR (mm): 18 | D1 (mm): 5.8 | RE (mm): 0.8
SDMX85-R20IC (mm): 25.4 | S (mm): 7.94 | L (mm): 16 | CEMR (mm): 20 | D1 (mm): 5.8 | RE (mm): 0.8
SDMX85-R30IC (mm): 25.4 | S (mm): 7.94 | L (mm): 16 | CEMR (mm): 30 | D1 (mm): 5.8 | RE (mm): 0.8
SDMX85-80R-0IC (mm): 25.4 | S (mm): 7.94 | L (mm): 23.8 | CEMR (mm): 80 | D1 (mm): 5.8 | RE (mm): 0.8
SDMX85-90R-0IC (mm): 25.4 | S (mm): 7.94 | L (mm): 23.8 | CEMR (mm): 90 | D1 (mm): 5.8 | RE (mm): 0.8
SDMX85-100R-0IC (mm): 25.4 | S (mm): 7.94 | L (mm): 23.8 | CEMR (mm): 100 | D1 (mm): 5.8 | RE (mm): 0.8
