Korloy Bead Removal Insert SNU (External)

Korloy Bead Removal Insert SNU (External)

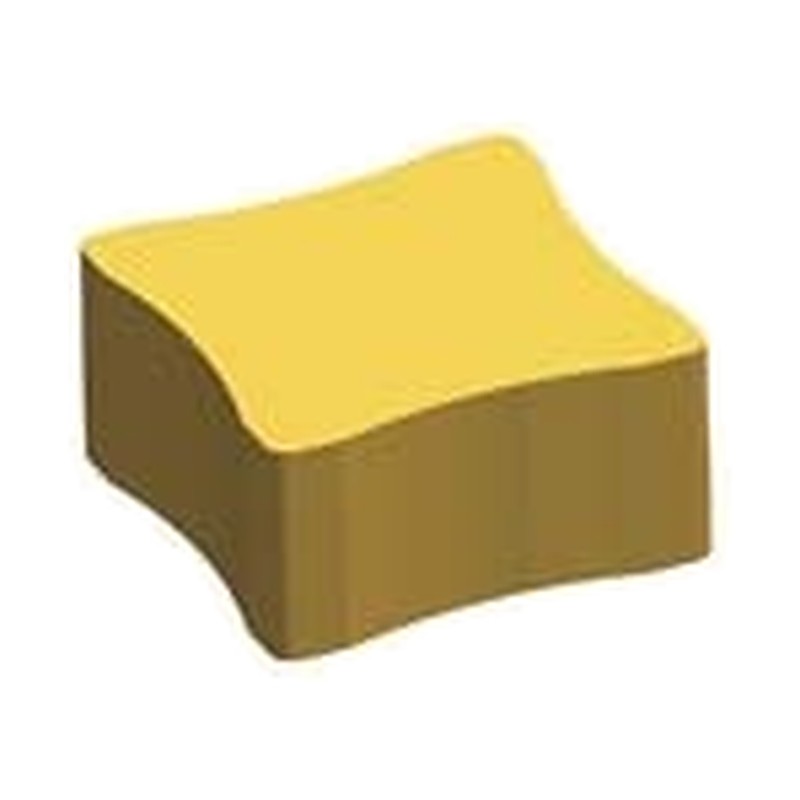

Square insert with radiused cutting edge for removing the outer weld bead of welded pipe.

Key features

  • External weld bead removal

Specifications

Application External bead removal
SNU452-8R IC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 8 | RE (mm): 0.8
SNU452-10R IC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 10 | RE (mm): 0.8
SNU452-12R IC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 12 | RE (mm): 0.8
SNU452-13R IC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 13 | RE (mm): 0.8
SNU452-14R IC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 14 | RE (mm): 0.8
SNU452-15R IC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 15 | RE (mm): 0.8
SNU452-20R IC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 20 | RE (mm): 0.8
SNU452-23R IC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 23 | RE (mm): 0.8
SNU452-24R IC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 24 | RE (mm): 0.8
SNU452-26R IC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 26 | RE (mm): 0.8
SNU452-35R IC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 35 | RE (mm): 0.8
SNU452-40R IC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 40 | RE (mm): 0.8
SNU452-45R IC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 45 | RE (mm): 0.8
SNU452-55R IC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 55 | RE (mm): 0.8
SNU452-80R IC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 80 | RE (mm): 0.8
SNU452-90R IC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 90 | RE (mm): 0.8
SNU452-100R IC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 100 | RE (mm): 0.8
SNU552-30R IC (mm): 15.875 | S (mm): 7.94 | L (mm): 10.875 | CEMR (mm): 30 | RE (mm): 0.8
SNU552-40R IC (mm): 15.875 | S (mm): 7.94 | L (mm): 10.875 | CEMR (mm): 40 | RE (mm): 0.8
SNU552-60R IC (mm): 15.875 | S (mm): 7.94 | L (mm): 10.875 | CEMR (mm): 60 | RE (mm): 0.8
SNU552-70R IC (mm): 15.875 | S (mm): 7.94 | L (mm): 10.875 | CEMR (mm): 70 | RE (mm): 0.8
SNU552-80R IC (mm): 15.875 | S (mm): 7.94 | L (mm): 10.875 | CEMR (mm): 80 | RE (mm): 0.8
SNU552-90R IC (mm): 15.875 | S (mm): 7.94 | L (mm): 10.875 | CEMR (mm): 90 | RE (mm): 0.8
Bead Removal InsertsKorloy
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Bead Removal Insert SNU (External)

Brand Korloy·Bead Removal Inserts

Available part numbers (23)

SNU452-8R, SNU452-10R, SNU452-12R, SNU452-13R, SNU452-14R, SNU452-15R, SNU452-20R, SNU452-23R, SNU452-24R, SNU452-26R + 13 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SNU452-8RIC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 8 | RE (mm): 0.8
SNU452-10RIC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 10 | RE (mm): 0.8
SNU452-12RIC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 12 | RE (mm): 0.8
SNU452-13RIC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 13 | RE (mm): 0.8
SNU452-14RIC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 14 | RE (mm): 0.8
SNU452-15RIC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 15 | RE (mm): 0.8
SNU452-20RIC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 20 | RE (mm): 0.8
SNU452-23RIC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 23 | RE (mm): 0.8
SNU452-24RIC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 24 | RE (mm): 0.8
SNU452-26RIC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 26 | RE (mm): 0.8
SNU452-35RIC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 35 | RE (mm): 0.8
SNU452-40RIC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 40 | RE (mm): 0.8
SNU452-45RIC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 45 | RE (mm): 0.8
SNU452-55RIC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 55 | RE (mm): 0.8
SNU452-80RIC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 80 | RE (mm): 0.8
SNU452-90RIC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 90 | RE (mm): 0.8
SNU452-100RIC (mm): 12.7 | S (mm): 7.94 | L (mm): 8.5 | CEMR (mm): 100 | RE (mm): 0.8
SNU552-30RIC (mm): 15.875 | S (mm): 7.94 | L (mm): 10.875 | CEMR (mm): 30 | RE (mm): 0.8
SNU552-40RIC (mm): 15.875 | S (mm): 7.94 | L (mm): 10.875 | CEMR (mm): 40 | RE (mm): 0.8
SNU552-60RIC (mm): 15.875 | S (mm): 7.94 | L (mm): 10.875 | CEMR (mm): 60 | RE (mm): 0.8
SNU552-70RIC (mm): 15.875 | S (mm): 7.94 | L (mm): 10.875 | CEMR (mm): 70 | RE (mm): 0.8
SNU552-80RIC (mm): 15.875 | S (mm): 7.94 | L (mm): 10.875 | CEMR (mm): 80 | RE (mm): 0.8
SNU552-90RIC (mm): 15.875 | S (mm): 7.94 | L (mm): 10.875 | CEMR (mm): 90 | RE (mm): 0.8
