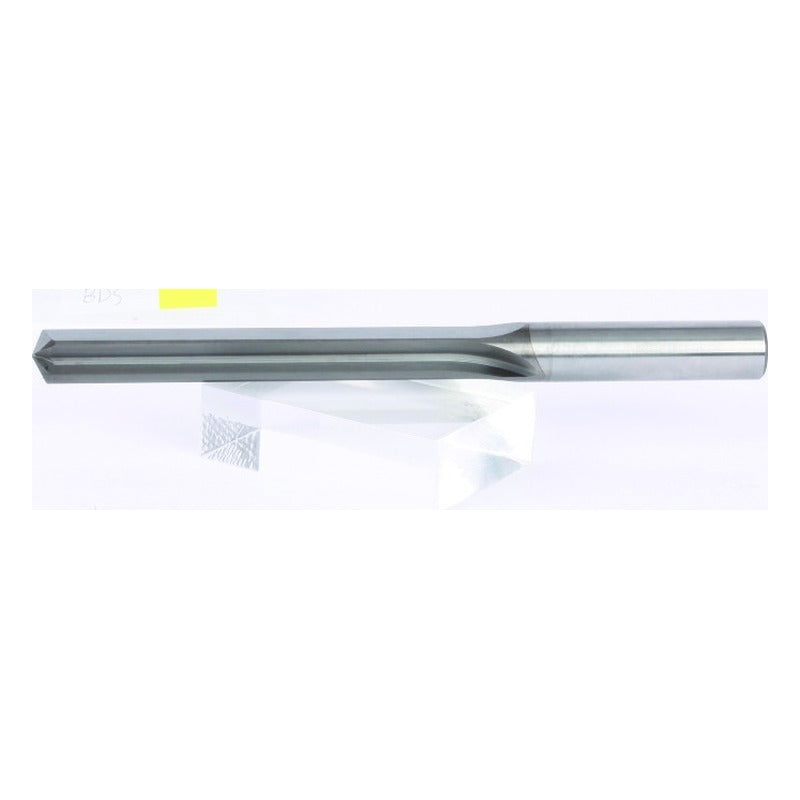

Korloy Brazed Burnishing Drill BDS

Korloy Brazed Burnishing Drill BDS

Brazed carbide burnishing drill for aluminum, copper alloy and cast iron hole making.

Key features

  • Brazed carbide
  • Regrinding possible to lower tool cost
  • Special types available on quotation
BDS040S D (mm): 4.0 | Shank dia. d (mm): 4.0 | l (mm): 35 | L (mm): 80 | Fig.: 1
BDS050S D (mm): 5.0 | Shank dia. d (mm): 5.0 | l (mm): 40 | L (mm): 85 | Fig.: 1
BDS060S D (mm): 6.0 | Shank dia. d (mm): 6.0 | l (mm): 50 | L (mm): 95 | Fig.: 1
BDS070S D (mm): 7.0 | Shank dia. d (mm): 7.0 | l (mm): 55 | L (mm): 100 | Fig.: 1
BDS080S D (mm): 8.0 | Shank dia. d (mm): 8.0 | l (mm): 65 | L (mm): 110 | Fig.: 1
BDS090S D (mm): 9.0 | Shank dia. d (mm): 9.0 | l (mm): 70 | L (mm): 120 | Fig.: 1
BDS100S D (mm): 10.0 | Shank dia. d (mm): 10.0 | l (mm): 80 | L (mm): 130 | Fig.: 1
BDS110S D (mm): 11.0 | Shank dia. d (mm): 11.0 | l (mm): 90 | L (mm): 140 | Fig.: 1
BDS120B D (mm): 12.0 | Shank dia. d (mm): 12.0 | l (mm): 95 | L (mm): 150 | Fig.: 2
BDS130B D (mm): 13.0 | Shank dia. d (mm): 16.0 | l (mm): 105 | L (mm): 160 | Fig.: 2
BDS140B D (mm): 14.0 | Shank dia. d (mm): 16.0 | l (mm): 110 | L (mm): 170 | Fig.: 2
BDS150B D (mm): 15.0 | Shank dia. d (mm): 16.0 | l (mm): 120 | L (mm): 185 | Fig.: 2
BDS160B D (mm): 16.0 | Shank dia. d (mm): 16.0 | l (mm): 125 | L (mm): 190 | Fig.: 2
DrillsKorloy
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Brazed Burnishing Drill BDS

Brand Korloy·Drills

Available part numbers (13)

BDS040S, BDS050S, BDS060S, BDS070S, BDS080S, BDS090S, BDS100S, BDS110S, BDS120B, BDS130B + 3 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BDS040SD (mm): 4.0 | Shank dia. d (mm): 4.0 | l (mm): 35 | L (mm): 80 | Fig.: 1
BDS050SD (mm): 5.0 | Shank dia. d (mm): 5.0 | l (mm): 40 | L (mm): 85 | Fig.: 1
BDS060SD (mm): 6.0 | Shank dia. d (mm): 6.0 | l (mm): 50 | L (mm): 95 | Fig.: 1
BDS070SD (mm): 7.0 | Shank dia. d (mm): 7.0 | l (mm): 55 | L (mm): 100 | Fig.: 1
BDS080SD (mm): 8.0 | Shank dia. d (mm): 8.0 | l (mm): 65 | L (mm): 110 | Fig.: 1
BDS090SD (mm): 9.0 | Shank dia. d (mm): 9.0 | l (mm): 70 | L (mm): 120 | Fig.: 1
BDS100SD (mm): 10.0 | Shank dia. d (mm): 10.0 | l (mm): 80 | L (mm): 130 | Fig.: 1
BDS110SD (mm): 11.0 | Shank dia. d (mm): 11.0 | l (mm): 90 | L (mm): 140 | Fig.: 1
BDS120BD (mm): 12.0 | Shank dia. d (mm): 12.0 | l (mm): 95 | L (mm): 150 | Fig.: 2
BDS130BD (mm): 13.0 | Shank dia. d (mm): 16.0 | l (mm): 105 | L (mm): 160 | Fig.: 2
BDS140BD (mm): 14.0 | Shank dia. d (mm): 16.0 | l (mm): 110 | L (mm): 170 | Fig.: 2
BDS150BD (mm): 15.0 | Shank dia. d (mm): 16.0 | l (mm): 120 | L (mm): 185 | Fig.: 2
BDS160BD (mm): 16.0 | Shank dia. d (mm): 16.0 | l (mm): 125 | L (mm): 190 | Fig.: 2
