• Korloy Brazed Chucking Reamer SCRS
1 1

Korloy Brazed Chucking Reamer SCRS

Korloy Brazed Chucking Reamer SCRS

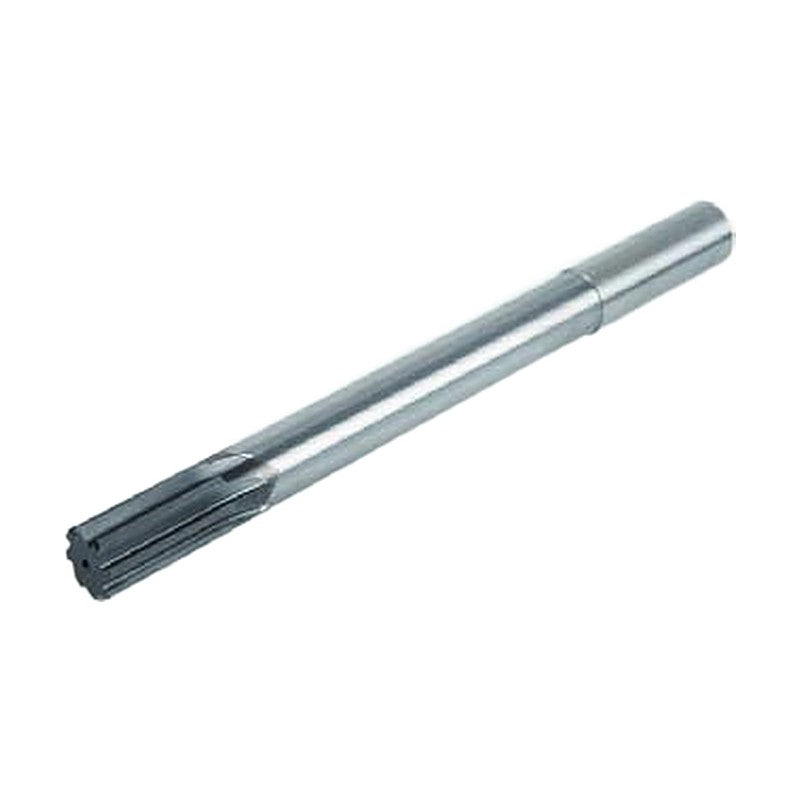

Brazed carbide straight-shank chucking reamer, 5 to 20 mm diameter.

Key features

  • Brazed carbide
  • Regrinding possible to lower tool cost
  • Special types available on quotation
SCRS050S Teeth: 4 | D (mm): 5.0 | Shank dia. d (mm): 6.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 100 | Fig.: 1
SCRS060S Teeth: 4 | D (mm): 6.0 | Shank dia. d (mm): 6.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 115 | Fig.: 1
SCRS070S Teeth: 4 | D (mm): 7.0 | Shank dia. d (mm): 8.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 125 | Fig.: 1
SCRS080S Teeth: 4 | D (mm): 8.0 | Shank dia. d (mm): 8.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 135 | Fig.: 1
SCRS090S Teeth: 4 | D (mm): 9.0 | Shank dia. d (mm): 10.0 | l (mm): 20 | l1 (mm): 45 | L (mm): 140 | Fig.: 1
SCRS100B Teeth: 4 | D (mm): 10.0 | Shank dia. d (mm): 10.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 145 | Fig.: 2
SCRS110B Teeth: 4 | D (mm): 11.0 | Shank dia. d (mm): 12.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 150 | Fig.: 2
SCRS120B Teeth: 4 | D (mm): 12.0 | Shank dia. d (mm): 12.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 160 | Fig.: 2
SCRS130B Teeth: 4 | D (mm): 13.0 | Shank dia. d (mm): 16.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 165 | Fig.: 2
SCRS140B Teeth: 6 | D (mm): 14.0 | Shank dia. d (mm): 16.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 170 | Fig.: 2
SCRS150B Teeth: 6 | D (mm): 15.0 | Shank dia. d (mm): 16.0 | l (mm): 30 | l1 (mm): 50 | L (mm): 180 | Fig.: 2
SCRS160B Teeth: 6 | D (mm): 16.0 | Shank dia. d (mm): 16.0 | l (mm): 30 | l1 (mm): 50 | L (mm): 190 | Fig.: 2
SCRS180B Teeth: 6 | D (mm): 18.0 | Shank dia. d (mm): 20.0 | l (mm): 30 | l1 (mm): 55 | L (mm): 210 | Fig.: 2
SCRS200B Teeth: 6 | D (mm): 20.0 | Shank dia. d (mm): 20.0 | l (mm): 40 | l1 (mm): 60 | L (mm): 230 | Fig.: 2
ReamersKorloy
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Brazed Chucking Reamer SCRS

Brand Korloy·Reamers

Available part numbers (14)

SCRS050S, SCRS060S, SCRS070S, SCRS080S, SCRS090S, SCRS100B, SCRS110B, SCRS120B, SCRS130B, SCRS140B + 4 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCRS050STeeth: 4 | D (mm): 5.0 | Shank dia. d (mm): 6.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 100 | Fig.: 1
SCRS060STeeth: 4 | D (mm): 6.0 | Shank dia. d (mm): 6.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 115 | Fig.: 1
SCRS070STeeth: 4 | D (mm): 7.0 | Shank dia. d (mm): 8.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 125 | Fig.: 1
SCRS080STeeth: 4 | D (mm): 8.0 | Shank dia. d (mm): 8.0 | l (mm): 20 | l1 (mm): 40 | L (mm): 135 | Fig.: 1
SCRS090STeeth: 4 | D (mm): 9.0 | Shank dia. d (mm): 10.0 | l (mm): 20 | l1 (mm): 45 | L (mm): 140 | Fig.: 1
SCRS100BTeeth: 4 | D (mm): 10.0 | Shank dia. d (mm): 10.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 145 | Fig.: 2
SCRS110BTeeth: 4 | D (mm): 11.0 | Shank dia. d (mm): 12.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 150 | Fig.: 2
SCRS120BTeeth: 4 | D (mm): 12.0 | Shank dia. d (mm): 12.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 160 | Fig.: 2
SCRS130BTeeth: 4 | D (mm): 13.0 | Shank dia. d (mm): 16.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 165 | Fig.: 2
SCRS140BTeeth: 6 | D (mm): 14.0 | Shank dia. d (mm): 16.0 | l (mm): 25 | l1 (mm): 50 | L (mm): 170 | Fig.: 2
SCRS150BTeeth: 6 | D (mm): 15.0 | Shank dia. d (mm): 16.0 | l (mm): 30 | l1 (mm): 50 | L (mm): 180 | Fig.: 2
SCRS160BTeeth: 6 | D (mm): 16.0 | Shank dia. d (mm): 16.0 | l (mm): 30 | l1 (mm): 50 | L (mm): 190 | Fig.: 2
SCRS180BTeeth: 6 | D (mm): 18.0 | Shank dia. d (mm): 20.0 | l (mm): 30 | l1 (mm): 55 | L (mm): 210 | Fig.: 2
SCRS200BTeeth: 6 | D (mm): 20.0 | Shank dia. d (mm): 20.0 | l (mm): 40 | l1 (mm): 60 | L (mm): 230 | Fig.: 2
