• Korloy Brazed Taper Shank Chucking Reamer TCRS
1 1

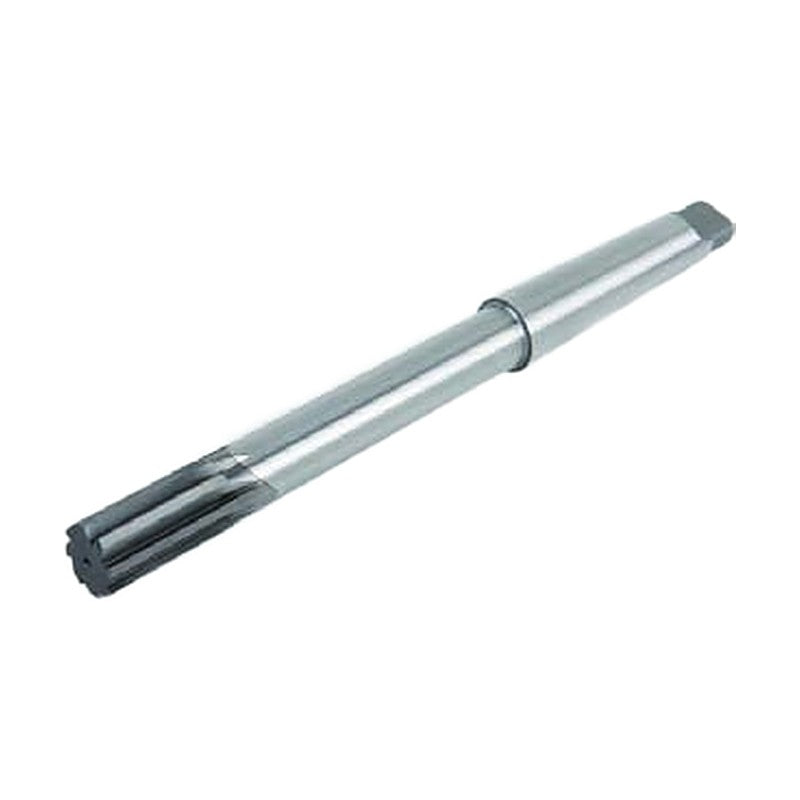

Korloy Brazed Taper Shank Chucking Reamer TCRS

Korloy Brazed Taper Shank Chucking Reamer TCRS

Brazed carbide chucking reamer with Morse taper shank, 7 to 30 mm diameter.

Key features

  • Brazed carbide
  • Regrinding possible to lower tool cost
  • Special types available on quotation
TCRS070 Teeth: 4 | D (mm): 7.0 | l (mm): 20 | L (mm): 150 | Morse taper No.: 1
TCRS080 Teeth: 4 | D (mm): 8.0 | l (mm): 20 | L (mm): 150 | Morse taper No.: 1
TCRS090 Teeth: 4 | D (mm): 9.0 | l (mm): 20 | L (mm): 160 | Morse taper No.: 1
TCRS100 Teeth: 4 | D (mm): 10.0 | l (mm): 25 | L (mm): 160 | Morse taper No.: 1
TCRS110 Teeth: 4 | D (mm): 11.0 | l (mm): 25 | L (mm): 170 | Morse taper No.: 1
TCRS120 Teeth: 4 | D (mm): 12.0 | l (mm): 25 | L (mm): 170 | Morse taper No.: 1
TCRS130 Teeth: 4 | D (mm): 13.0 | l (mm): 25 | L (mm): 180 | Morse taper No.: 1
TCRS140 Teeth: 6 | D (mm): 14.0 | l (mm): 25 | L (mm): 190 | Morse taper No.: 1
TCRS150 Teeth: 6 | D (mm): 15.0 | l (mm): 30 | L (mm): 200 | Morse taper No.: 2
TCRS160 Teeth: 6 | D (mm): 16.0 | l (mm): 30 | L (mm): 200 | Morse taper No.: 2
TCRS180 Teeth: 6 | D (mm): 18.0 | l (mm): 30 | L (mm): 220 | Morse taper No.: 2
TCRS200 Teeth: 6 | D (mm): 20.0 | l (mm): 40 | L (mm): 230 | Morse taper No.: 2
TCRS250 Teeth: 6 | D (mm): 25.0 | l (mm): 40 | L (mm): 260 | Morse taper No.: 3
TCRS280 Teeth: 8 | D (mm): 28.0 | l (mm): 40 | L (mm): 270 | Morse taper No.: 3
TCRS300 Teeth: 8 | D (mm): 30.0 | l (mm): 50 | L (mm): 290 | Morse taper No.: 3
ReamersKorloy
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Brazed Taper Shank Chucking Reamer TCRS

Brand Korloy·Reamers

Available part numbers (15)

TCRS070, TCRS080, TCRS090, TCRS100, TCRS110, TCRS120, TCRS130, TCRS140, TCRS150, TCRS160 + 5 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TCRS070Teeth: 4 | D (mm): 7.0 | l (mm): 20 | L (mm): 150 | Morse taper No.: 1
TCRS080Teeth: 4 | D (mm): 8.0 | l (mm): 20 | L (mm): 150 | Morse taper No.: 1
TCRS090Teeth: 4 | D (mm): 9.0 | l (mm): 20 | L (mm): 160 | Morse taper No.: 1
TCRS100Teeth: 4 | D (mm): 10.0 | l (mm): 25 | L (mm): 160 | Morse taper No.: 1
TCRS110Teeth: 4 | D (mm): 11.0 | l (mm): 25 | L (mm): 170 | Morse taper No.: 1
TCRS120Teeth: 4 | D (mm): 12.0 | l (mm): 25 | L (mm): 170 | Morse taper No.: 1
TCRS130Teeth: 4 | D (mm): 13.0 | l (mm): 25 | L (mm): 180 | Morse taper No.: 1
TCRS140Teeth: 6 | D (mm): 14.0 | l (mm): 25 | L (mm): 190 | Morse taper No.: 1
TCRS150Teeth: 6 | D (mm): 15.0 | l (mm): 30 | L (mm): 200 | Morse taper No.: 2
TCRS160Teeth: 6 | D (mm): 16.0 | l (mm): 30 | L (mm): 200 | Morse taper No.: 2
TCRS180Teeth: 6 | D (mm): 18.0 | l (mm): 30 | L (mm): 220 | Morse taper No.: 2
TCRS200Teeth: 6 | D (mm): 20.0 | l (mm): 40 | L (mm): 230 | Morse taper No.: 2
TCRS250Teeth: 6 | D (mm): 25.0 | l (mm): 40 | L (mm): 260 | Morse taper No.: 3
TCRS280Teeth: 8 | D (mm): 28.0 | l (mm): 40 | L (mm): 270 | Morse taper No.: 3
TCRS300Teeth: 8 | D (mm): 30.0 | l (mm): 50 | L (mm): 290 | Morse taper No.: 3
