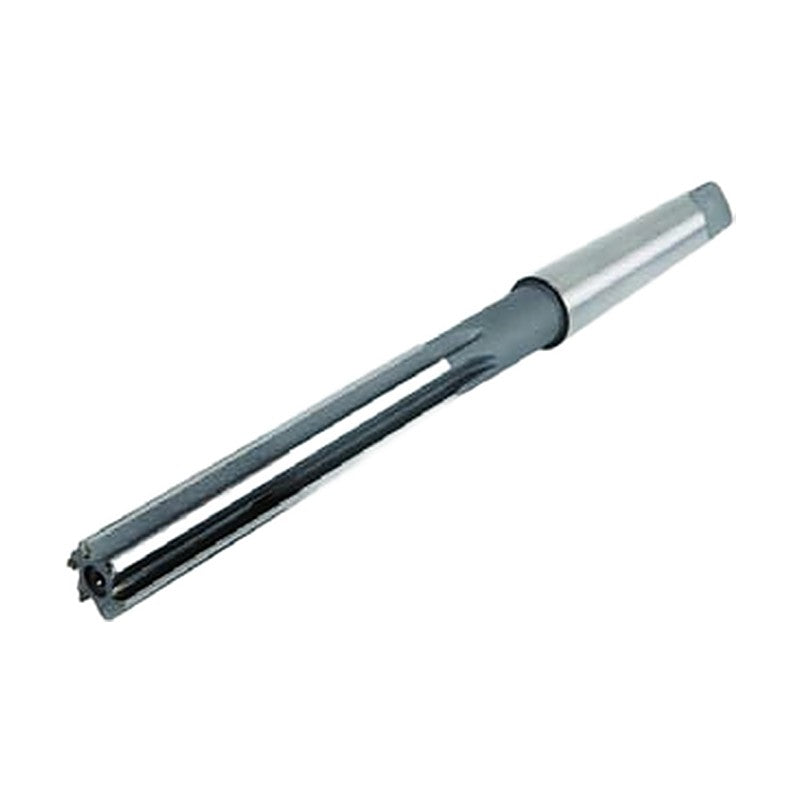

Korloy Brazed Taper Shank Machine Reamer TMRS

Korloy Brazed Taper Shank Machine Reamer TMRS

Brazed carbide machine reamer with Morse taper shank, 7 to 30 mm diameter.

Key features

  • Brazed carbide
  • Regrinding possible to lower tool cost
  • Special types available on quotation
TMRS070 Teeth: 4 | D (mm): 7.0 | l (mm): 60 | l1 (mm): 60 | L (mm): 150 | Morse taper No.: 1
TMRS080 Teeth: 4 | D (mm): 8.0 | l (mm): 70 | l1 (mm): 70 | L (mm): 150 | Morse taper No.: 1
TMRS090 Teeth: 4 | D (mm): 9.0 | l (mm): 70 | l1 (mm): 70 | L (mm): 160 | Morse taper No.: 1
TMRS100 Teeth: 4 | D (mm): 10.0 | l (mm): 75 | l1 (mm): 75 | L (mm): 170 | Morse taper No.: 1
TMRS110 Teeth: 4 | D (mm): 11.0 | l (mm): 75 | l1 (mm): 75 | L (mm): 170 | Morse taper No.: 1
TMRS120 Teeth: 4 | D (mm): 12.0 | l (mm): 80 | l1 (mm): 40 | L (mm): 180 | Morse taper No.: 1
TMRS130 Teeth: 4 | D (mm): 13.0 | l (mm): 85 | l1 (mm): 40 | L (mm): 190 | Morse taper No.: 1
TMRS140 Teeth: 6 | D (mm): 14.0 | l (mm): 90 | l1 (mm): 45 | L (mm): 210 | Morse taper No.: 1
TMRS150 Teeth: 6 | D (mm): 15.0 | l (mm): 90 | l1 (mm): 45 | L (mm): 215 | Morse taper No.: 2
TMRS160 Teeth: 6 | D (mm): 16.0 | l (mm): 100 | l1 (mm): 50 | L (mm): 220 | Morse taper No.: 2
TMRS180 Teeth: 6 | D (mm): 18.0 | l (mm): 105 | l1 (mm): 50 | L (mm): 225 | Morse taper No.: 2
TMRS200 Teeth: 6 | D (mm): 20.0 | l (mm): 120 | l1 (mm): 50 | L (mm): 240 | Morse taper No.: 2
TMRS250 Teeth: 6 | D (mm): 25.0 | l (mm): 130 | l1 (mm): 50 | L (mm): 270 | Morse taper No.: 3
TMRS280 Teeth: 8 | D (mm): 28.0 | l (mm): 140 | l1 (mm): 50 | L (mm): 280 | Morse taper No.: 3
TMRS300 Teeth: 8 | D (mm): 30.0 | l (mm): 150 | l1 (mm): 50 | L (mm): 290 | Morse taper No.: 3
ReamersKorloy
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Brazed Taper Shank Machine Reamer TMRS

Brand Korloy·Reamers

Available part numbers (15)

TMRS070, TMRS080, TMRS090, TMRS100, TMRS110, TMRS120, TMRS130, TMRS140, TMRS150, TMRS160 + 5 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TMRS070Teeth: 4 | D (mm): 7.0 | l (mm): 60 | l1 (mm): 60 | L (mm): 150 | Morse taper No.: 1
TMRS080Teeth: 4 | D (mm): 8.0 | l (mm): 70 | l1 (mm): 70 | L (mm): 150 | Morse taper No.: 1
TMRS090Teeth: 4 | D (mm): 9.0 | l (mm): 70 | l1 (mm): 70 | L (mm): 160 | Morse taper No.: 1
TMRS100Teeth: 4 | D (mm): 10.0 | l (mm): 75 | l1 (mm): 75 | L (mm): 170 | Morse taper No.: 1
TMRS110Teeth: 4 | D (mm): 11.0 | l (mm): 75 | l1 (mm): 75 | L (mm): 170 | Morse taper No.: 1
TMRS120Teeth: 4 | D (mm): 12.0 | l (mm): 80 | l1 (mm): 40 | L (mm): 180 | Morse taper No.: 1
TMRS130Teeth: 4 | D (mm): 13.0 | l (mm): 85 | l1 (mm): 40 | L (mm): 190 | Morse taper No.: 1
TMRS140Teeth: 6 | D (mm): 14.0 | l (mm): 90 | l1 (mm): 45 | L (mm): 210 | Morse taper No.: 1
TMRS150Teeth: 6 | D (mm): 15.0 | l (mm): 90 | l1 (mm): 45 | L (mm): 215 | Morse taper No.: 2
TMRS160Teeth: 6 | D (mm): 16.0 | l (mm): 100 | l1 (mm): 50 | L (mm): 220 | Morse taper No.: 2
TMRS180Teeth: 6 | D (mm): 18.0 | l (mm): 105 | l1 (mm): 50 | L (mm): 225 | Morse taper No.: 2
TMRS200Teeth: 6 | D (mm): 20.0 | l (mm): 120 | l1 (mm): 50 | L (mm): 240 | Morse taper No.: 2
TMRS250Teeth: 6 | D (mm): 25.0 | l (mm): 130 | l1 (mm): 50 | L (mm): 270 | Morse taper No.: 3
TMRS280Teeth: 8 | D (mm): 28.0 | l (mm): 140 | l1 (mm): 50 | L (mm): 280 | Morse taper No.: 3
TMRS300Teeth: 8 | D (mm): 30.0 | l (mm): 150 | l1 (mm): 50 | L (mm): 290 | Morse taper No.: 3
