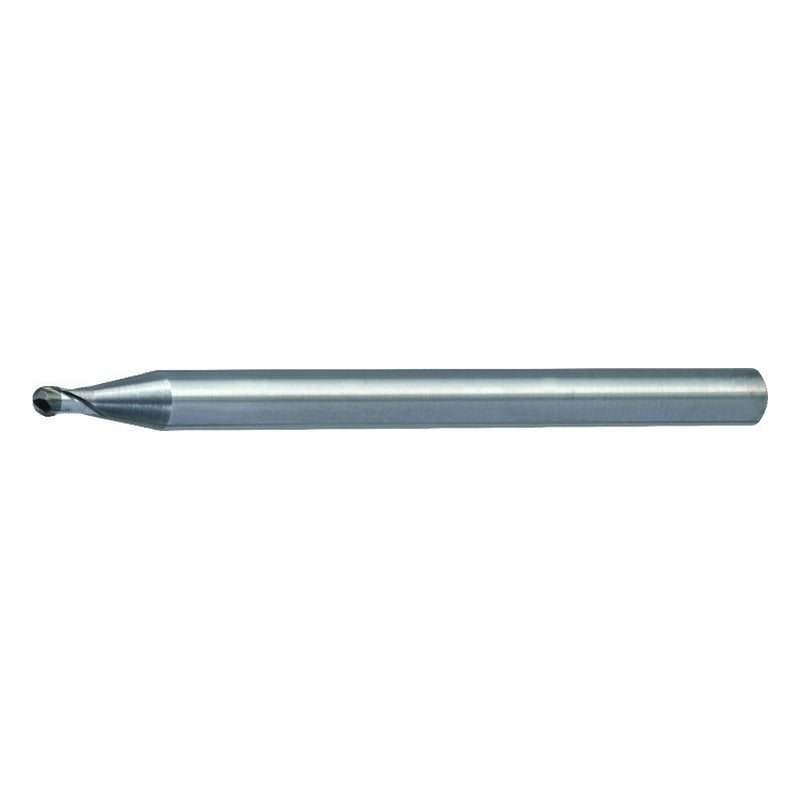

Korloy cBN Ball End Mill CSBE

Korloy cBN Ball End Mill CSBE

Solid cBN 2-flute micro ball end mill for high hardness die and mold machining up to HRC 70.

Key features

  • For high hardness machining up to HRC 70
  • High precision with superior fracture resistance
  • Superb wear resistance and long tool life
  • 2 flutes, 30 degree helix
  • Tolerance 0~-0.005 mm

Specifications

Material cBN
Flutes 2
Helix angle 30°
CSBE020L003 Ball radius R (mm): 0.1 | D (mm): 0.2 | Shank dia. d (mm): 4 | l1 (mm): 0.3 | Neck length l2 (mm): 0.3 | L (mm): 54
CSBE030L008 Ball radius R (mm): 0.15 | D (mm): 0.3 | Shank dia. d (mm): 4 | l1 (mm): 0.3 | Neck length l2 (mm): 0.8 | L (mm): 54
CSBE030L01 Ball radius R (mm): 0.15 | D (mm): 0.3 | Shank dia. d (mm): 4 | l1 (mm): 0.3 | Neck length l2 (mm): 1 | L (mm): 54
CSBE040L01 Ball radius R (mm): 0.2 | D (mm): 0.4 | Shank dia. d (mm): 4 | l1 (mm): 0.4 | Neck length l2 (mm): 1 | L (mm): 54
CSBE040L02 Ball radius R (mm): 0.2 | D (mm): 0.4 | Shank dia. d (mm): 4 | l1 (mm): 0.4 | Neck length l2 (mm): 2 | L (mm): 54
CSBE050L01 Ball radius R (mm): 0.25 | D (mm): 0.5 | Shank dia. d (mm): 4 | l1 (mm): 0.5 | Neck length l2 (mm): 1 | L (mm): 54
CSBE050L02 Ball radius R (mm): 0.25 | D (mm): 0.5 | Shank dia. d (mm): 4 | l1 (mm): 0.5 | Neck length l2 (mm): 2 | L (mm): 54
CSBE060L02 Ball radius R (mm): 0.3 | D (mm): 0.6 | Shank dia. d (mm): 4 | l1 (mm): 0.6 | Neck length l2 (mm): 2 | L (mm): 54
CSBE060L04 Ball radius R (mm): 0.3 | D (mm): 0.6 | Shank dia. d (mm): 4 | l1 (mm): 0.6 | Neck length l2 (mm): 4 | L (mm): 54
CSBE080L02 Ball radius R (mm): 0.4 | D (mm): 0.8 | Shank dia. d (mm): 4 | l1 (mm): 0.7 | Neck length l2 (mm): 2 | L (mm): 54
CSBE080L04 Ball radius R (mm): 0.4 | D (mm): 0.8 | Shank dia. d (mm): 4 | l1 (mm): 0.7 | Neck length l2 (mm): 4 | L (mm): 54
CSBE080L10 Ball radius R (mm): 0.4 | D (mm): 0.8 | Shank dia. d (mm): 4 | l1 (mm): 0.7 | Neck length l2 (mm): 10 | L (mm): 54
CSBE100L03 Ball radius R (mm): 0.5 | D (mm): 1.0 | Shank dia. d (mm): 4 | l1 (mm): 0.8 | Neck length l2 (mm): 3 | L (mm): 54
CSBE100L04 Ball radius R (mm): 0.5 | D (mm): 1.0 | Shank dia. d (mm): 4 | l1 (mm): 0.8 | Neck length l2 (mm): 4 | L (mm): 54
CSBE100L06 Ball radius R (mm): 0.5 | D (mm): 1.0 | Shank dia. d (mm): 4 | l1 (mm): 0.8 | Neck length l2 (mm): 6 | L (mm): 54
CSBE100L08 Ball radius R (mm): 0.5 | D (mm): 1.0 | Shank dia. d (mm): 4 | l1 (mm): 0.8 | Neck length l2 (mm): 8 | L (mm): 54
CSBE100L10 Ball radius R (mm): 0.5 | D (mm): 1.0 | Shank dia. d (mm): 4 | l1 (mm): 0.8 | Neck length l2 (mm): 10 | L (mm): 54
CSBE100L15 Ball radius R (mm): 0.5 | D (mm): 1.0 | Shank dia. d (mm): 4 | l1 (mm): 0.8 | Neck length l2 (mm): 15 | L (mm): 54
CSBE120L03 Ball radius R (mm): 0.6 | D (mm): 1.2 | Shank dia. d (mm): 4 | l1 (mm): 1.0 | Neck length l2 (mm): 3 | L (mm): 54
CSBE120L04 Ball radius R (mm): 0.6 | D (mm): 1.2 | Shank dia. d (mm): 4 | l1 (mm): 1.0 | Neck length l2 (mm): 4 | L (mm): 54
CSBE120L05 Ball radius R (mm): 0.6 | D (mm): 1.2 | Shank dia. d (mm): 4 | l1 (mm): 1.0 | Neck length l2 (mm): 5 | L (mm): 54
CSBE120L06 Ball radius R (mm): 0.6 | D (mm): 1.2 | Shank dia. d (mm): 4 | l1 (mm): 1.0 | Neck length l2 (mm): 6 | L (mm): 54
CSBE150L04 Ball radius R (mm): 0.75 | D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 1.4 | Neck length l2 (mm): 4 | L (mm): 54
CSBE150L06 Ball radius R (mm): 0.75 | D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 1.4 | Neck length l2 (mm): 6 | L (mm): 54
CSBE150L08 Ball radius R (mm): 0.75 | D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 1.4 | Neck length l2 (mm): 8 | L (mm): 54
CSBE150L10 Ball radius R (mm): 0.75 | D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 1.4 | Neck length l2 (mm): 10 | L (mm): 54
CSBE150L15 Ball radius R (mm): 0.75 | D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 1.4 | Neck length l2 (mm): 15 | L (mm): 54
CSBE200L04 Ball radius R (mm): 1.0 | D (mm): 2.0 | Shank dia. d (mm): 4 | l1 (mm): 1.7 | Neck length l2 (mm): 4 | L (mm): 54
CSBE200L06 Ball radius R (mm): 1.0 | D (mm): 2.0 | Shank dia. d (mm): 4 | l1 (mm): 1.7 | Neck length l2 (mm): 6 | L (mm): 54
CSBE200L08 Ball radius R (mm): 1.0 | D (mm): 2.0 | Shank dia. d (mm): 4 | l1 (mm): 1.7 | Neck length l2 (mm): 8 | L (mm): 54
CSBE200L10 Ball radius R (mm): 1.0 | D (mm): 2.0 | Shank dia. d (mm): 4 | l1 (mm): 1.7 | Neck length l2 (mm): 10 | L (mm): 54
CSBE200L15 Ball radius R (mm): 1.0 | D (mm): 2.0 | Shank dia. d (mm): 4 | l1 (mm): 1.7 | Neck length l2 (mm): 15 | L (mm): 54
CSBE200L20 Ball radius R (mm): 1.0 | D (mm): 2.0 | Shank dia. d (mm): 4 | l1 (mm): 1.7 | Neck length l2 (mm): 20 | L (mm): 63
CSBE300L06 Ball radius R (mm): 1.5 | D (mm): 3.0 | Shank dia. d (mm): 4 | l1 (mm): 2.3 | Neck length l2 (mm): 6 | L (mm): 54
CSBE300L08 Ball radius R (mm): 1.5 | D (mm): 3.0 | Shank dia. d (mm): 4 | l1 (mm): 2.3 | Neck length l2 (mm): 8 | L (mm): 54
CSBE300L12 Ball radius R (mm): 1.5 | D (mm): 3.0 | Shank dia. d (mm): 4 | l1 (mm): 2.3 | Neck length l2 (mm): 12 | L (mm): 54
CSBE300L16 Ball radius R (mm): 1.5 | D (mm): 3.0 | Shank dia. d (mm): 4 | l1 (mm): 2.3 | Neck length l2 (mm): 16 | L (mm): 54
CSBE300L20 Ball radius R (mm): 1.5 | D (mm): 3.0 | Shank dia. d (mm): 4 | l1 (mm): 2.3 | Neck length l2 (mm): 20 | L (mm): 63
CSBE400L20 Ball radius R (mm): 2.0 | D (mm): 4.0 | Shank dia. d (mm): 4 | l1 (mm): 3.0 | Neck length l2 (mm): 20 | L (mm): 60
CSBE400L30 Ball radius R (mm): 2.0 | D (mm): 4.0 | Shank dia. d (mm): 4 | l1 (mm): 3.0 | Neck length l2 (mm): 30 | L (mm): 80
Ball End MillsKorloy
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy cBN Ball End Mill CSBE

Brand Korloy·Ball End Mills

Available part numbers (40)

CSBE020L003, CSBE030L008, CSBE030L01, CSBE040L01, CSBE040L02, CSBE050L01, CSBE050L02, CSBE060L02, CSBE060L04, CSBE080L02 + 30 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
