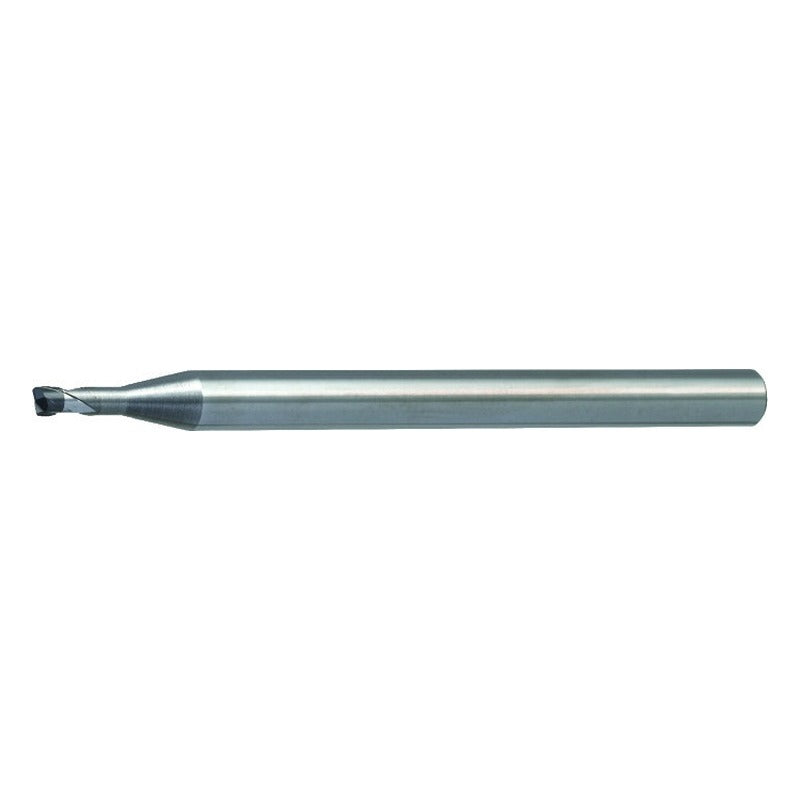

Korloy cBN Corner Radius End Mill CSRE

Korloy cBN Corner Radius End Mill CSRE

Solid cBN 2-flute micro corner radius end mill for high hardness die and mold machining up to HRC 70.

Key features

  • For high hardness machining up to HRC 70
  • High precision with superior fracture resistance
  • Superb wear resistance and long tool life
  • 2 flutes, 30 degree helix
  • Tolerance 0~-0.005 mm

Specifications

Material cBN
Flutes 2
Helix angle 30°
CSRE020L003R003 Corner R (mm): 0.03 | D (mm): 0.2 | Shank dia. d (mm): 4 | l1 (mm): 0.3 | Neck length l2 (mm): 0.3 | L (mm): 54
CSRE030L003R005 Corner R (mm): 0.05 | D (mm): 0.3 | Shank dia. d (mm): 4 | l1 (mm): 0.4 | Neck length l2 (mm): 0.3 | L (mm): 54
CSRE030L008R005 Corner R (mm): 0.05 | D (mm): 0.3 | Shank dia. d (mm): 4 | l1 (mm): 0.4 | Neck length l2 (mm): 0.8 | L (mm): 54
CSRE040L01R005 Corner R (mm): 0.05 | D (mm): 0.4 | Shank dia. d (mm): 4 | l1 (mm): 0.4 | Neck length l2 (mm): 1 | L (mm): 54
CSRE040L01R01 Corner R (mm): 0.1 | D (mm): 0.4 | Shank dia. d (mm): 4 | l1 (mm): 0.4 | Neck length l2 (mm): 1 | L (mm): 54
CSRE050L01R005 Corner R (mm): 0.05 | D (mm): 0.5 | Shank dia. d (mm): 4 | l1 (mm): 0.5 | Neck length l2 (mm): 1 | L (mm): 54
CSRE050L01R01 Corner R (mm): 0.1 | D (mm): 0.5 | Shank dia. d (mm): 4 | l1 (mm): 0.5 | Neck length l2 (mm): 1 | L (mm): 54
CSRE060L02R005 Corner R (mm): 0.05 | D (mm): 0.6 | Shank dia. d (mm): 4 | l1 (mm): 0.6 | Neck length l2 (mm): 2 | L (mm): 54
CSRE060L02R01 Corner R (mm): 0.1 | D (mm): 0.6 | Shank dia. d (mm): 4 | l1 (mm): 0.6 | Neck length l2 (mm): 2 | L (mm): 54
CSRE080L02R01 Corner R (mm): 0.1 | D (mm): 0.8 | Shank dia. d (mm): 4 | l1 (mm): 0.8 | Neck length l2 (mm): 2 | L (mm): 54
CSRE080L03R01 Corner R (mm): 0.1 | D (mm): 0.8 | Shank dia. d (mm): 4 | l1 (mm): 0.8 | Neck length l2 (mm): 3 | L (mm): 54
CSRE100L02R01 Corner R (mm): 0.1 | D (mm): 1.0 | Shank dia. d (mm): 4 | l1 (mm): 0.9 | Neck length l2 (mm): 2 | L (mm): 54
CSRE100L04R01 Corner R (mm): 0.1 | D (mm): 1.0 | Shank dia. d (mm): 4 | l1 (mm): 0.9 | Neck length l2 (mm): 4 | L (mm): 54
CSRE100L06R01 Corner R (mm): 0.1 | D (mm): 1.0 | Shank dia. d (mm): 4 | l1 (mm): 0.9 | Neck length l2 (mm): 6 | L (mm): 54
CSRE100L02R02 Corner R (mm): 0.2 | D (mm): 1.0 | Shank dia. d (mm): 4 | l1 (mm): 0.9 | Neck length l2 (mm): 2 | L (mm): 54
CSRE100L04R02 Corner R (mm): 0.2 | D (mm): 1.0 | Shank dia. d (mm): 4 | l1 (mm): 0.9 | Neck length l2 (mm): 4 | L (mm): 54
CSRE120L02R01 Corner R (mm): 0.1 | D (mm): 1.2 | Shank dia. d (mm): 4 | l1 (mm): 1.0 | Neck length l2 (mm): 2 | L (mm): 54
CSRE120L04R01 Corner R (mm): 0.1 | D (mm): 1.2 | Shank dia. d (mm): 4 | l1 (mm): 1.0 | Neck length l2 (mm): 4 | L (mm): 54
CSRE120L02R02 Corner R (mm): 0.2 | D (mm): 1.2 | Shank dia. d (mm): 4 | l1 (mm): 1.0 | Neck length l2 (mm): 2 | L (mm): 54
CSRE120L04R02 Corner R (mm): 0.2 | D (mm): 1.2 | Shank dia. d (mm): 4 | l1 (mm): 1.0 | Neck length l2 (mm): 4 | L (mm): 54
CSRE150L04R01 Corner R (mm): 0.1 | D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 1.4 | Neck length l2 (mm): 4 | L (mm): 54
CSRE150L06R01 Corner R (mm): 0.1 | D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 1.4 | Neck length l2 (mm): 6 | L (mm): 54
CSRE150L04R02 Corner R (mm): 0.2 | D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 1.4 | Neck length l2 (mm): 4 | L (mm): 54
CSRE150L06R02 Corner R (mm): 0.2 | D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 1.4 | Neck length l2 (mm): 6 | L (mm): 54
CSRE150L04R03 Corner R (mm): 0.3 | D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 1.4 | Neck length l2 (mm): 4 | L (mm): 54
CSRE150L06R03 Corner R (mm): 0.3 | D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 1.4 | Neck length l2 (mm): 6 | L (mm): 54
CSRE200L06R01 Corner R (mm): 0.1 | D (mm): 2.0 | Shank dia. d (mm): 4 | l1 (mm): 1.5 | Neck length l2 (mm): 6 | L (mm): 54
CSRE200L10R01 Corner R (mm): 0.1 | D (mm): 2.0 | Shank dia. d (mm): 4 | l1 (mm): 1.5 | Neck length l2 (mm): 10 | L (mm): 54
CSRE200L06R02 Corner R (mm): 0.2 | D (mm): 2.0 | Shank dia. d (mm): 4 | l1 (mm): 1.5 | Neck length l2 (mm): 6 | L (mm): 54
CSRE200L10R02 Corner R (mm): 0.2 | D (mm): 2.0 | Shank dia. d (mm): 4 | l1 (mm): 1.5 | Neck length l2 (mm): 10 | L (mm): 54
CSRE200L06R03 Corner R (mm): 0.3 | D (mm): 2.0 | Shank dia. d (mm): 4 | l1 (mm): 1.5 | Neck length l2 (mm): 6 | L (mm): 54
CSRE200L10R03 Corner R (mm): 0.3 | D (mm): 2.0 | Shank dia. d (mm): 4 | l1 (mm): 1.5 | Neck length l2 (mm): 10 | L (mm): 54
CSRE300L08R01 Corner R (mm): 0.1 | D (mm): 3.0 | Shank dia. d (mm): 4 | l1 (mm): 2.3 | Neck length l2 (mm): 8 | L (mm): 54
CSRE300L08R02 Corner R (mm): 0.2 | D (mm): 3.0 | Shank dia. d (mm): 4 | l1 (mm): 2.3 | Neck length l2 (mm): 8 | L (mm): 54
CSRE300L08R03 Corner R (mm): 0.3 | D (mm): 3.0 | Shank dia. d (mm): 4 | l1 (mm): 2.3 | Neck length l2 (mm): 8 | L (mm): 54
CSRE400L30R01 Corner R (mm): 0.1 | D (mm): 4.0 | Shank dia. d (mm): 6 | l1 (mm): 3.0 | Neck length l2 (mm): 30 | L (mm): 80
CSRE400L30R02 Corner R (mm): 0.2 | D (mm): 4.0 | Shank dia. d (mm): 6 | l1 (mm): 3.0 | Neck length l2 (mm): 30 | L (mm): 80
CSRE400L30R03 Corner R (mm): 0.3 | D (mm): 4.0 | Shank dia. d (mm): 6 | l1 (mm): 3.0 | Neck length l2 (mm): 30 | L (mm): 80
CSRE400L40R05 Corner R (mm): 0.5 | D (mm): 4.0 | Shank dia. d (mm): 6 | l1 (mm): 3.0 | Neck length l2 (mm): 40 | L (mm): 100
End MillsKorloy
39 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy cBN Corner Radius End Mill CSRE

Brand Korloy·End Mills

Available part numbers (39)

CSRE020L003R003, CSRE030L003R005, CSRE030L008R005, CSRE040L01R005, CSRE040L01R01, CSRE050L01R005, CSRE050L01R01, CSRE060L02R005, CSRE060L02R01, CSRE080L02R01 + 29 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CSRE020L003R003Corner R (mm): 0.03 | D (mm): 0.2 | Shank dia. d (mm): 4 | l1 (mm): 0.3 | Neck length l2 (mm): 0.3 | L (mm): 54
CSRE030L003R005Corner R (mm): 0.05 | D (mm): 0.3 | Shank dia. d (mm): 4 | l1 (mm): 0.4 | Neck length l2 (mm): 0.3 | L (mm): 54
CSRE030L008R005Corner R (mm): 0.05 | D (mm): 0.3 | Shank dia. d (mm): 4 | l1 (mm): 0.4 | Neck length l2 (mm): 0.8 | L (mm): 54
CSRE040L01R005Corner R (mm): 0.05 | D (mm): 0.4 | Shank dia. d (mm): 4 | l1 (mm): 0.4 | Neck length l2 (mm): 1 | L (mm): 54
CSRE040L01R01Corner R (mm): 0.1 | D (mm): 0.4 | Shank dia. d (mm): 4 | l1 (mm): 0.4 | Neck length l2 (mm): 1 | L (mm): 54
CSRE050L01R005Corner R (mm): 0.05 | D (mm): 0.5 | Shank dia. d (mm): 4 | l1 (mm): 0.5 | Neck length l2 (mm): 1 | L (mm): 54
CSRE050L01R01Corner R (mm): 0.1 | D (mm): 0.5 | Shank dia. d (mm): 4 | l1 (mm): 0.5 | Neck length l2 (mm): 1 | L (mm): 54
CSRE060L02R005Corner R (mm): 0.05 | D (mm): 0.6 | Shank dia. d (mm): 4 | l1 (mm): 0.6 | Neck length l2 (mm): 2 | L (mm): 54
CSRE060L02R01Corner R (mm): 0.1 | D (mm): 0.6 | Shank dia. d (mm): 4 | l1 (mm): 0.6 | Neck length l2 (mm): 2 | L (mm): 54
CSRE080L02R01Corner R (mm): 0.1 | D (mm): 0.8 | Shank dia. d (mm): 4 | l1 (mm): 0.8 | Neck length l2 (mm): 2 | L (mm): 54
CSRE080L03R01Corner R (mm): 0.1 | D (mm): 0.8 | Shank dia. d (mm): 4 | l1 (mm): 0.8 | Neck length l2 (mm): 3 | L (mm): 54
CSRE100L02R01Corner R (mm): 0.1 | D (mm): 1.0 | Shank dia. d (mm): 4 | l1 (mm): 0.9 | Neck length l2 (mm): 2 | L (mm): 54
CSRE100L04R01Corner R (mm): 0.1 | D (mm): 1.0 | Shank dia. d (mm): 4 | l1 (mm): 0.9 | Neck length l2 (mm): 4 | L (mm): 54
CSRE100L06R01Corner R (mm): 0.1 | D (mm): 1.0 | Shank dia. d (mm): 4 | l1 (mm): 0.9 | Neck length l2 (mm): 6 | L (mm): 54
CSRE100L02R02Corner R (mm): 0.2 | D (mm): 1.0 | Shank dia. d (mm): 4 | l1 (mm): 0.9 | Neck length l2 (mm): 2 | L (mm): 54
CSRE100L04R02Corner R (mm): 0.2 | D (mm): 1.0 | Shank dia. d (mm): 4 | l1 (mm): 0.9 | Neck length l2 (mm): 4 | L (mm): 54
CSRE120L02R01Corner R (mm): 0.1 | D (mm): 1.2 | Shank dia. d (mm): 4 | l1 (mm): 1.0 | Neck length l2 (mm): 2 | L (mm): 54
CSRE120L04R01Corner R (mm): 0.1 | D (mm): 1.2 | Shank dia. d (mm): 4 | l1 (mm): 1.0 | Neck length l2 (mm): 4 | L (mm): 54
CSRE120L02R02Corner R (mm): 0.2 | D (mm): 1.2 | Shank dia. d (mm): 4 | l1 (mm): 1.0 | Neck length l2 (mm): 2 | L (mm): 54
CSRE120L04R02Corner R (mm): 0.2 | D (mm): 1.2 | Shank dia. d (mm): 4 | l1 (mm): 1.0 | Neck length l2 (mm): 4 | L (mm): 54
CSRE150L04R01Corner R (mm): 0.1 | D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 1.4 | Neck length l2 (mm): 4 | L (mm): 54
CSRE150L06R01Corner R (mm): 0.1 | D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 1.4 | Neck length l2 (mm): 6 | L (mm): 54
CSRE150L04R02Corner R (mm): 0.2 | D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 1.4 | Neck length l2 (mm): 4 | L (mm): 54
CSRE150L06R02Corner R (mm): 0.2 | D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 1.4 | Neck length l2 (mm): 6 | L (mm): 54
CSRE150L04R03Corner R (mm): 0.3 | D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 1.4 | Neck length l2 (mm): 4 | L (mm): 54
CSRE150L06R03Corner R (mm): 0.3 | D (mm): 1.5 | Shank dia. d (mm): 4 | l1 (mm): 1.4 | Neck length l2 (mm): 6 | L (mm): 54
CSRE200L06R01Corner R (mm): 0.1 | D (mm): 2.0 | Shank dia. d (mm): 4 | l1 (mm): 1.5 | Neck length l2 (mm): 6 | L (mm): 54
CSRE200L10R01Corner R (mm): 0.1 | D (mm): 2.0 | Shank dia. d (mm): 4 | l1 (mm): 1.5 | Neck length l2 (mm): 10 | L (mm): 54
CSRE200L06R02Corner R (mm): 0.2 | D (mm): 2.0 | Shank dia. d (mm): 4 | l1 (mm): 1.5 | Neck length l2 (mm): 6 | L (mm): 54
CSRE200L10R02Corner R (mm): 0.2 | D (mm): 2.0 | Shank dia. d (mm): 4 | l1 (mm): 1.5 | Neck length l2 (mm): 10 | L (mm): 54
CSRE200L06R03Corner R (mm): 0.3 | D (mm): 2.0 | Shank dia. d (mm): 4 | l1 (mm): 1.5 | Neck length l2 (mm): 6 | L (mm): 54
CSRE200L10R03Corner R (mm): 0.3 | D (mm): 2.0 | Shank dia. d (mm): 4 | l1 (mm): 1.5 | Neck length l2 (mm): 10 | L (mm): 54
CSRE300L08R01Corner R (mm): 0.1 | D (mm): 3.0 | Shank dia. d (mm): 4 | l1 (mm): 2.3 | Neck length l2 (mm): 8 | L (mm): 54
CSRE300L08R02Corner R (mm): 0.2 | D (mm): 3.0 | Shank dia. d (mm): 4 | l1 (mm): 2.3 | Neck length l2 (mm): 8 | L (mm): 54
CSRE300L08R03Corner R (mm): 0.3 | D (mm): 3.0 | Shank dia. d (mm): 4 | l1 (mm): 2.3 | Neck length l2 (mm): 8 | L (mm): 54
CSRE400L30R01Corner R (mm): 0.1 | D (mm): 4.0 | Shank dia. d (mm): 6 | l1 (mm): 3.0 | Neck length l2 (mm): 30 | L (mm): 80
CSRE400L30R02Corner R (mm): 0.2 | D (mm): 4.0 | Shank dia. d (mm): 6 | l1 (mm): 3.0 | Neck length l2 (mm): 30 | L (mm): 80
CSRE400L30R03Corner R (mm): 0.3 | D (mm): 4.0 | Shank dia. d (mm): 6 | l1 (mm): 3.0 | Neck length l2 (mm): 30 | L (mm): 80
CSRE400L40R05Corner R (mm): 0.5 | D (mm): 4.0 | Shank dia. d (mm): 6 | l1 (mm): 3.0 | Neck length l2 (mm): 40 | L (mm): 100
