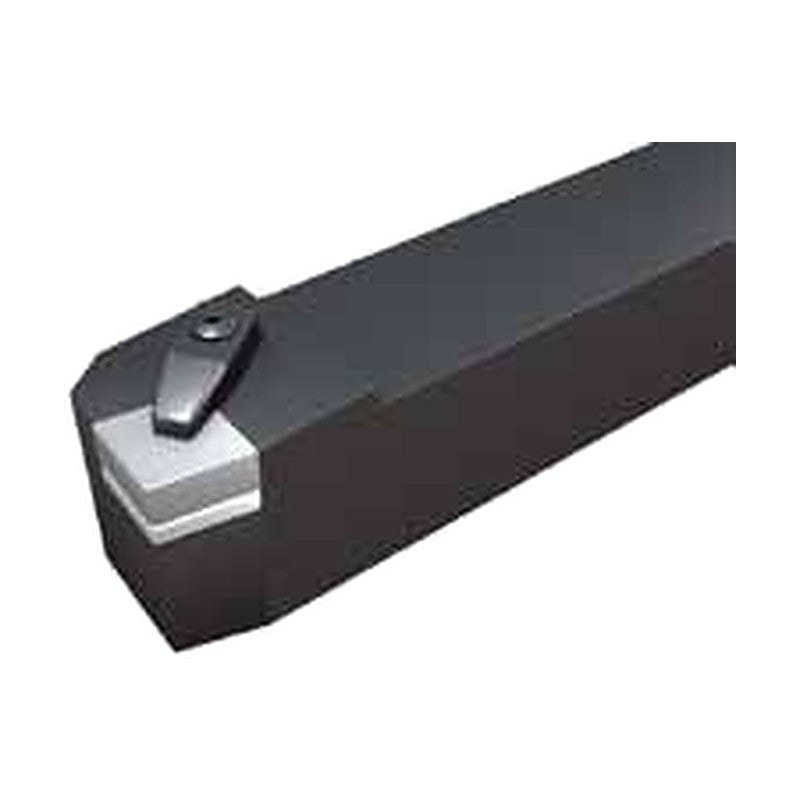

Korloy Ceramic Insert Turning Holder CCBN

External turning toolholder with top clamp and shim for CNGX/CNVX, CNGN ceramic inserts, 75° angle.

Key features

Shank sizes: 2525, 3225, 4040, 5050
Fits inserts: CNG(V)X1207, CNG(V)X1607, CNGN1204, CNGN1207, CNGN1607, CNGN1907, CNGN2509

Specifications

Holder type	External toolholder
Approach angle (drawing)	75°

CCBNR2525M12-A4		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Right \| Insert: CNGN1204 \| Clamp & clamp screw: UH1 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
CCBNL2525M12-A4		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Left \| Insert: CNGN1204 \| Clamp & clamp screw: UH1 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
CCBNR2525M12-A7		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Right \| Insert: CNGN1207 \| Clamp & clamp screw: UH1 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
CCBNL2525M12-A7		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Left \| Insert: CNGN1207 \| Clamp & clamp screw: UH1 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
CCBNR2525M12-X7		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Right \| Insert: CNG(V)X1207 \| Clamp & clamp screw: UH5 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
CCBNL2525M12-X7		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Left \| Insert: CNG(V)X1207 \| Clamp & clamp screw: UH5 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
CCBNR3225P12-A4		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Right \| Insert: CNGN1204 \| Clamp & clamp screw: UH1 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
CCBNL3225P12-A4		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Left \| Insert: CNGN1204 \| Clamp & clamp screw: UH1 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
CCBNR3225P12-A7		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Right \| Insert: CNGN1207 \| Clamp & clamp screw: UH1 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
CCBNL3225P12-A7		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Left \| Insert: CNGN1207 \| Clamp & clamp screw: UH1 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
CCBNR3225P12-X7		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Right \| Insert: CNG(V)X1207 \| Clamp & clamp screw: UH5 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
CCBNL3225P12-X7		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Left \| Insert: CNG(V)X1207 \| Clamp & clamp screw: UH5 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
CCBNR3225P16-A7		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 27 \| Hand: Right \| Insert: CNG(V)X1607 \| Clamp & clamp screw: UH1 \| Shim: SHCN5A \| Shim screw: FM510 \| Wrench: LW4
CCBNL3225P16-A7		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 27 \| Hand: Left \| Insert: CNG(V)X1607 \| Clamp & clamp screw: UH1 \| Shim: SHCN5A \| Shim screw: FM510 \| Wrench: LW4
CCBNR3225P16-X7		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 27 \| Hand: Right \| Insert: CNGN1607 \| Clamp & clamp screw: UH5 \| Shim: SHCN5A \| Shim screw: FM510 \| Wrench: LW4
CCBNL3225P16-X7		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 27 \| Hand: Left \| Insert: CNGN1607 \| Clamp & clamp screw: UH5 \| Shim: SHCN5A \| Shim screw: FM510 \| Wrench: LW4
CCBNR4040S19-A7		H (mm): 40 \| W (mm): 40 \| L (mm): 250 \| l1 (mm): 60 \| S (mm): 36 \| Hand: Right \| Insert: CNGN1907 \| Clamp & clamp screw: UH4 \| Shim: SHCN6A \| Shim screw: FM615 \| Wrench: LW6
CCBNL4040S19-A7		H (mm): 40 \| W (mm): 40 \| L (mm): 250 \| l1 (mm): 60 \| S (mm): 36 \| Hand: Left \| Insert: CNGN1907 \| Clamp & clamp screw: UH4 \| Shim: SHCN6A \| Shim screw: FM615 \| Wrench: LW6
CCBNR5050T25-A9		H (mm): 50 \| W (mm): 50 \| L (mm): 300 \| l1 (mm): 65 \| S (mm): 45 \| Hand: Right \| Insert: CNGN2509 \| Clamp & clamp screw: UH25 \| Shim: SHCN8 \| Shim screw: FM815 \| Wrench: LW6
CCBNL5050T25-A9		H (mm): 50 \| W (mm): 50 \| L (mm): 300 \| l1 (mm): 65 \| S (mm): 45 \| Hand: Left \| Insert: CNGN2509 \| Clamp & clamp screw: UH25 \| Shim: SHCN8 \| Shim screw: FM815 \| Wrench: LW6

Turning HoldersKorloy

20 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Insert Turning Holder CCBN

Brand Korloy·Turning Holders

Available part numbers (20)

CCBNR2525M12-A4, CCBNL2525M12-A4, CCBNR2525M12-A7, CCBNL2525M12-A7, CCBNR2525M12-X7, CCBNL2525M12-X7, CCBNR3225P12-A4, CCBNL3225P12-A4, CCBNR3225P12-A7, CCBNL3225P12-A7 + 10 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CCBNR2525M12-A4	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Right \| Insert: CNGN1204 \| Clamp & clamp screw: UH1 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
	CCBNL2525M12-A4	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Left \| Insert: CNGN1204 \| Clamp & clamp screw: UH1 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
	CCBNR2525M12-A7	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Right \| Insert: CNGN1207 \| Clamp & clamp screw: UH1 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
	CCBNL2525M12-A7	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Left \| Insert: CNGN1207 \| Clamp & clamp screw: UH1 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
	CCBNR2525M12-X7	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Right \| Insert: CNG(V)X1207 \| Clamp & clamp screw: UH5 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
	CCBNL2525M12-X7	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Left \| Insert: CNG(V)X1207 \| Clamp & clamp screw: UH5 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
	CCBNR3225P12-A4	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Right \| Insert: CNGN1204 \| Clamp & clamp screw: UH1 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
	CCBNL3225P12-A4	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Left \| Insert: CNGN1204 \| Clamp & clamp screw: UH1 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
	CCBNR3225P12-A7	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Right \| Insert: CNGN1207 \| Clamp & clamp screw: UH1 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
	CCBNL3225P12-A7	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Left \| Insert: CNGN1207 \| Clamp & clamp screw: UH1 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
	CCBNR3225P12-X7	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Right \| Insert: CNG(V)X1207 \| Clamp & clamp screw: UH5 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
	CCBNL3225P12-X7	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 22 \| Hand: Left \| Insert: CNG(V)X1207 \| Clamp & clamp screw: UH5 \| Shim: SHCN4A \| Shim screw: BM510 \| Wrench: LW4
	CCBNR3225P16-A7	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 27 \| Hand: Right \| Insert: CNG(V)X1607 \| Clamp & clamp screw: UH1 \| Shim: SHCN5A \| Shim screw: FM510 \| Wrench: LW4
	CCBNL3225P16-A7	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 27 \| Hand: Left \| Insert: CNG(V)X1607 \| Clamp & clamp screw: UH1 \| Shim: SHCN5A \| Shim screw: FM510 \| Wrench: LW4
	CCBNR3225P16-X7	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 27 \| Hand: Right \| Insert: CNGN1607 \| Clamp & clamp screw: UH5 \| Shim: SHCN5A \| Shim screw: FM510 \| Wrench: LW4
	CCBNL3225P16-X7	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 27 \| Hand: Left \| Insert: CNGN1607 \| Clamp & clamp screw: UH5 \| Shim: SHCN5A \| Shim screw: FM510 \| Wrench: LW4
	CCBNR4040S19-A7	H (mm): 40 \| W (mm): 40 \| L (mm): 250 \| l1 (mm): 60 \| S (mm): 36 \| Hand: Right \| Insert: CNGN1907 \| Clamp & clamp screw: UH4 \| Shim: SHCN6A \| Shim screw: FM615 \| Wrench: LW6
	CCBNL4040S19-A7	H (mm): 40 \| W (mm): 40 \| L (mm): 250 \| l1 (mm): 60 \| S (mm): 36 \| Hand: Left \| Insert: CNGN1907 \| Clamp & clamp screw: UH4 \| Shim: SHCN6A \| Shim screw: FM615 \| Wrench: LW6
	CCBNR5050T25-A9	H (mm): 50 \| W (mm): 50 \| L (mm): 300 \| l1 (mm): 65 \| S (mm): 45 \| Hand: Right \| Insert: CNGN2509 \| Clamp & clamp screw: UH25 \| Shim: SHCN8 \| Shim screw: FM815 \| Wrench: LW6
	CCBNL5050T25-A9	H (mm): 50 \| W (mm): 50 \| L (mm): 300 \| l1 (mm): 65 \| S (mm): 45 \| Hand: Left \| Insert: CNGN2509 \| Clamp & clamp screw: UH25 \| Shim: SHCN8 \| Shim screw: FM815 \| Wrench: LW6

Need a different model, or a part not listed here? Send us your parts list →
