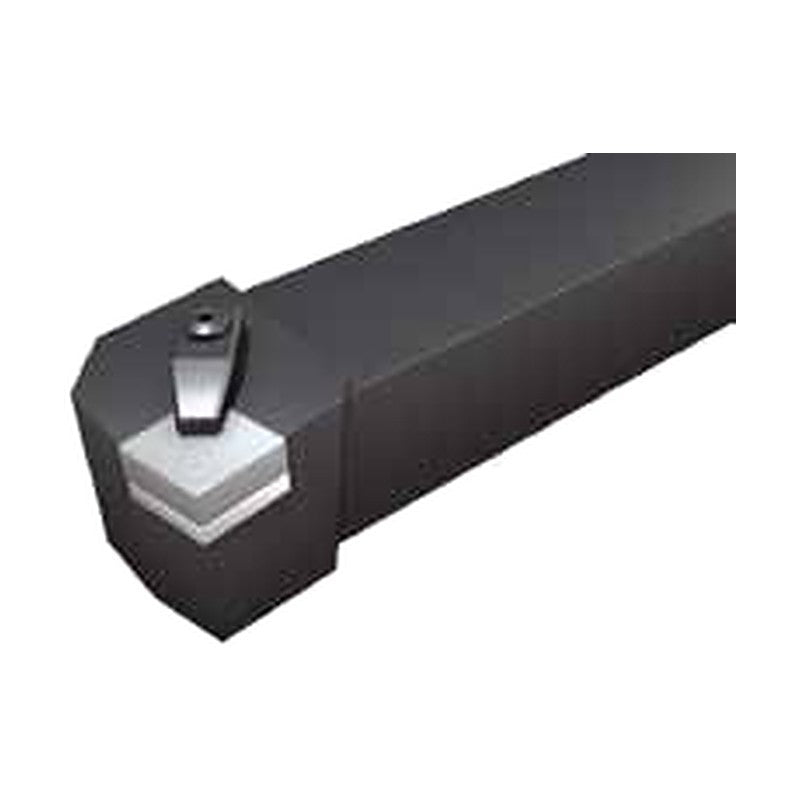

Korloy Ceramic Insert Turning Holder CCKN

Korloy Ceramic Insert Turning Holder CCKN

External turning toolholder with top clamp and shim for CNGX/CNVX, CNGN ceramic inserts, 75° angle.

Key features

  • Shank sizes: 2525, 3225
  • Fits inserts: CNG(V)X1207, CNGN1204, CNGN1207

Specifications

Holder type External toolholder
Approach angle (drawing) 75°
CCKNR2525M12-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 29 | S (mm): 32 | Hand: Right | Insert: CNGN1204 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNL2525M12-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 29 | S (mm): 32 | Hand: Left | Insert: CNGN1204 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNR2525M12-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 29 | S (mm): 32 | Hand: Right | Insert: CNGN1207 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNL2525M12-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 29 | S (mm): 32 | Hand: Left | Insert: CNGN1207 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNR2525M12-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 29 | S (mm): 32 | Hand: Right | Insert: CNG(V)X1207 | Clamp & clamp screw: UH5 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNL2525M12-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 29 | S (mm): 32 | Hand: Left | Insert: CNG(V)X1207 | Clamp & clamp screw: UH5 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNR3225P12-A4 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 29 | S (mm): 32 | Hand: Right | Insert: CNGN1204 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNL3225P12-A4 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 29 | S (mm): 32 | Hand: Left | Insert: CNGN1204 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNR3225P12-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 29 | S (mm): 32 | Hand: Right | Insert: CNGN1207 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNL3225P12-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 29 | S (mm): 32 | Hand: Left | Insert: CNGN1207 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNR3225P12-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 29 | S (mm): 32 | Hand: Right | Insert: CNG(V)X1207 | Clamp & clamp screw: UH5 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNL3225P12-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 29 | S (mm): 32 | Hand: Left | Insert: CNG(V)X1207 | Clamp & clamp screw: UH5 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
Turning HoldersKorloy
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Insert Turning Holder CCKN

Brand Korloy·Turning Holders

Available part numbers (12)

CCKNR2525M12-A4, CCKNL2525M12-A4, CCKNR2525M12-A7, CCKNL2525M12-A7, CCKNR2525M12-X7, CCKNL2525M12-X7, CCKNR3225P12-A4, CCKNL3225P12-A4, CCKNR3225P12-A7, CCKNL3225P12-A7 + 2 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CCKNR2525M12-A4H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 29 | S (mm): 32 | Hand: Right | Insert: CNGN1204 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNL2525M12-A4H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 29 | S (mm): 32 | Hand: Left | Insert: CNGN1204 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNR2525M12-A7H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 29 | S (mm): 32 | Hand: Right | Insert: CNGN1207 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNL2525M12-A7H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 29 | S (mm): 32 | Hand: Left | Insert: CNGN1207 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNR2525M12-X7H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 29 | S (mm): 32 | Hand: Right | Insert: CNG(V)X1207 | Clamp & clamp screw: UH5 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNL2525M12-X7H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 29 | S (mm): 32 | Hand: Left | Insert: CNG(V)X1207 | Clamp & clamp screw: UH5 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNR3225P12-A4H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 29 | S (mm): 32 | Hand: Right | Insert: CNGN1204 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNL3225P12-A4H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 29 | S (mm): 32 | Hand: Left | Insert: CNGN1204 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNR3225P12-A7H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 29 | S (mm): 32 | Hand: Right | Insert: CNGN1207 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNL3225P12-A7H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 29 | S (mm): 32 | Hand: Left | Insert: CNGN1207 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNR3225P12-X7H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 29 | S (mm): 32 | Hand: Right | Insert: CNG(V)X1207 | Clamp & clamp screw: UH5 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCKNL3225P12-X7H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 29 | S (mm): 32 | Hand: Left | Insert: CNG(V)X1207 | Clamp & clamp screw: UH5 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
