Korloy Ceramic Insert Turning Holder CCLN

Korloy Ceramic Insert Turning Holder CCLN

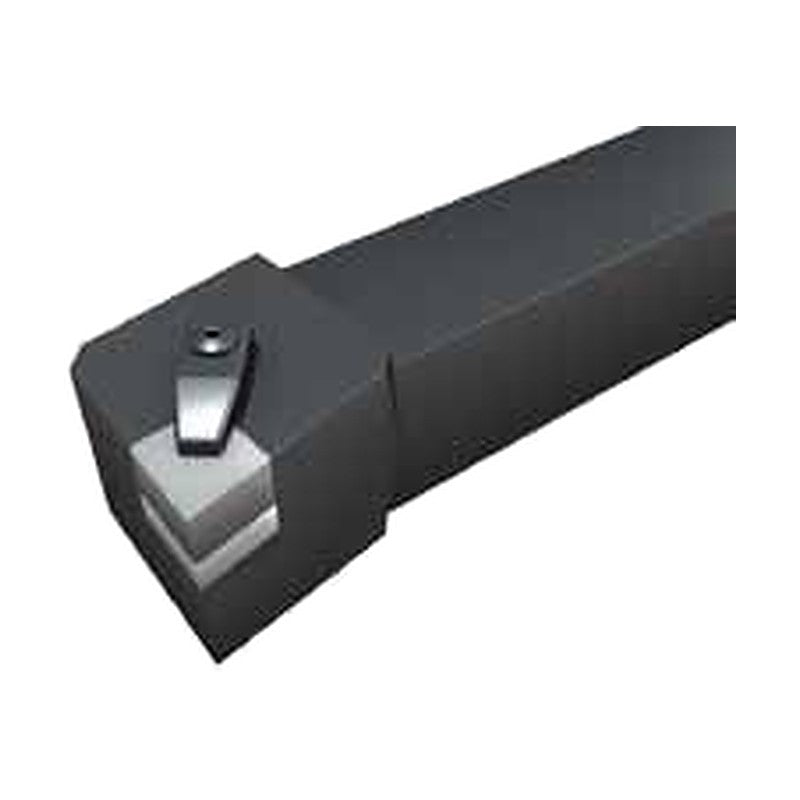

External turning toolholder with top clamp and shim for CNGX/CNVX, CNGN ceramic inserts, 95° angle.

Key features

  • Shank sizes: 2525, 3225, 4040, 5050
  • Fits inserts: CNG(V)X1207, CNG(V)X1607, CNGN1204, CNGN1207, CNGN1607, CNGN1907, CNGN2509

Specifications

Holder type External toolholder
Approach angle (drawing) 95°
CCLNR2525M12-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: CNGN1204 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCLNL2525M12-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: CNGN1204 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCLNR2525M12-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: CNGN1207 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCLNL2525M12-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: CNGN1207 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCLNR2525M12-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: CNG(V)X1207 | Clamp & clamp screw: UH5 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCLNL2525M12-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: CNG(V)X1207 | Clamp & clamp screw: UH5 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCLNR3225P12-A4 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: CNGN1204 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCLNL3225P12-A4 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: CNGN1204 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCLNR3225P12-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: CNGN1207 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCLNL3225P12-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: CNGN1207 | Clamp & clamp screw: UH1 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCLNR3225P12-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: CNG(V)X1207 | Clamp & clamp screw: UH5 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCLNL3225P12-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: CNG(V)X1207 | Clamp & clamp screw: UH5 | Shim: SHCN4A | Shim screw: BM510 | Wrench: LW4
CCLNR3225P16-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: CNG(V)X1607 | Clamp & clamp screw: UH5 | Shim: SHCN5A | Shim screw: FM510 | Wrench: LW4
CCLNL3225P16-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: CNG(V)X1607 | Clamp & clamp screw: UH5 | Shim: SHCN5A | Shim screw: FM510 | Wrench: LW4
CCLNR3225P16-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: CNGN1607 | Clamp & clamp screw: UH1 | Shim: SHCN5A | Shim screw: FM510 | Wrench: LW4
CCLNL3225P16-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: CNGN1607 | Clamp & clamp screw: UH1 | Shim: SHCN5A | Shim screw: FM510 | Wrench: LW4
CCLNR4040S19-A7 H (mm): 40 | W (mm): 40 | L (mm): 250 | l1 (mm): 60 | S (mm): 50 | Hand: Right | Insert: CNGN1907 | Clamp & clamp screw: UH4 | Shim: SHCN6A | Shim screw: FM615 | Wrench: LW6
CCLNL4040S19-A7 H (mm): 40 | W (mm): 40 | L (mm): 250 | l1 (mm): 60 | S (mm): 50 | Hand: Left | Insert: CNGN1907 | Clamp & clamp screw: UH4 | Shim: SHCN6A | Shim screw: FM615 | Wrench: LW6
CCLNR5050T25-A9 H (mm): 50 | W (mm): 50 | L (mm): 300 | l1 (mm): 65 | S (mm): 60 | Hand: Right | Insert: CNGN2509 | Clamp & clamp screw: UH25 | Shim: SHCN8 | Shim screw: FM815 | Wrench: LW6
CCLNL5050T25-A9 H (mm): 50 | W (mm): 50 | L (mm): 300 | l1 (mm): 65 | S (mm): 60 | Hand: Left | Insert: CNGN2509 | Clamp & clamp screw: UH25 | Shim: SHCN8 | Shim screw: FM815 | Wrench: LW6
