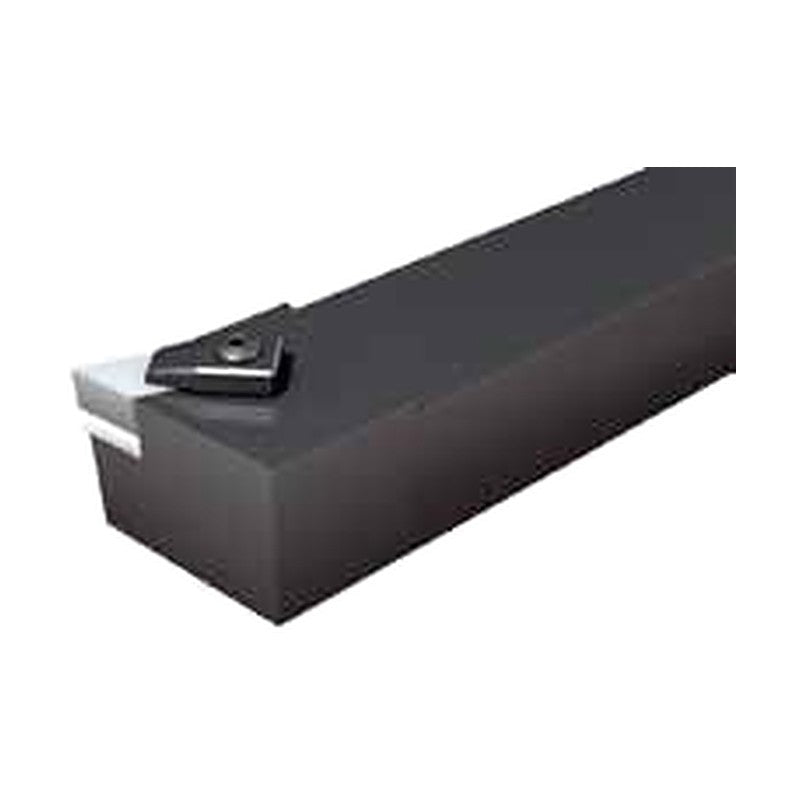

Korloy Ceramic Insert Turning Holder CDHN

External turning toolholder with top clamp and shim for DNGN, DNGX ceramic inserts, 107.5° angle.

Key features

Shank sizes: 2525, 3225
Fits inserts: DNGN1504, DNGN1507, DNGX1207, DNGX1507

Specifications

Holder type	External toolholder
Approach angle (drawing)	107.5°

CDHNR2525M15-A4		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Right \| Insert: DNGN1504 \| Clamp & clamp screw: UH1 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
CDHNL2525M15-A4		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Left \| Insert: DNGN1504 \| Clamp & clamp screw: UH1 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
CDHNR2525M15-A7		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Right \| Insert: DNGN1507 \| Clamp & clamp screw: UH1 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
CDHNL2525M15-A7		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Left \| Insert: DNGN1507 \| Clamp & clamp screw: UH1 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
CDHNR2525M12-X7		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 30 \| S (mm): 32 \| Hand: Right \| Insert: DNGX1207 \| Clamp & clamp screw: UH5 \| Shim: SHDN3A \| Shim screw: TM3507 \| Wrench: LW4
CDHNL2525M12-X7		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 30 \| S (mm): 32 \| Hand: Left \| Insert: DNGX1207 \| Clamp & clamp screw: UH5 \| Shim: SHDN3A \| Shim screw: TM3507 \| Wrench: LW4
CDHNR2525M15-X7		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Right \| Insert: DNGX1507 \| Clamp & clamp screw: UH5 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
CDHNL2525M15-X7		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Left \| Insert: DNGX1507 \| Clamp & clamp screw: UH5 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
CDHNR3225P15-A4		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Right \| Insert: DNGN1504 \| Clamp & clamp screw: UH1 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
CDHNL3225P15-A4		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Left \| Insert: DNGN1504 \| Clamp & clamp screw: UH1 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
CDHNR3225P15-A7		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Right \| Insert: DNGN1507 \| Clamp & clamp screw: UH1 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
CDHNL3225P15-A7		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Left \| Insert: DNGN1507 \| Clamp & clamp screw: UH1 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
CDHNR3225P12-X7		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 30 \| S (mm): 32 \| Hand: Right \| Insert: DNGX1207 \| Clamp & clamp screw: UH5 \| Shim: SHDN3A \| Shim screw: TM3507 \| Wrench: LW4
CDHNL3225P12-X7		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 30 \| S (mm): 32 \| Hand: Left \| Insert: DNGX1207 \| Clamp & clamp screw: UH5 \| Shim: SHDN3A \| Shim screw: TM3507 \| Wrench: LW4
CDHNR3225P15-X7		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Right \| Insert: DNGX1507 \| Clamp & clamp screw: UH5 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
CDHNL3225P15-X7		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Left \| Insert: DNGX1507 \| Clamp & clamp screw: UH5 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4

Turning HoldersKorloy

16 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Insert Turning Holder CDHN

Brand Korloy·Turning Holders

Available part numbers (16)

CDHNR2525M15-A4, CDHNL2525M15-A4, CDHNR2525M15-A7, CDHNL2525M15-A7, CDHNR2525M12-X7, CDHNL2525M12-X7, CDHNR2525M15-X7, CDHNL2525M15-X7, CDHNR3225P15-A4, CDHNL3225P15-A4 + 6 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CDHNR2525M15-A4	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Right \| Insert: DNGN1504 \| Clamp & clamp screw: UH1 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
	CDHNL2525M15-A4	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Left \| Insert: DNGN1504 \| Clamp & clamp screw: UH1 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
	CDHNR2525M15-A7	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Right \| Insert: DNGN1507 \| Clamp & clamp screw: UH1 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
	CDHNL2525M15-A7	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Left \| Insert: DNGN1507 \| Clamp & clamp screw: UH1 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
	CDHNR2525M12-X7	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 30 \| S (mm): 32 \| Hand: Right \| Insert: DNGX1207 \| Clamp & clamp screw: UH5 \| Shim: SHDN3A \| Shim screw: TM3507 \| Wrench: LW4
	CDHNL2525M12-X7	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 30 \| S (mm): 32 \| Hand: Left \| Insert: DNGX1207 \| Clamp & clamp screw: UH5 \| Shim: SHDN3A \| Shim screw: TM3507 \| Wrench: LW4
	CDHNR2525M15-X7	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Right \| Insert: DNGX1507 \| Clamp & clamp screw: UH5 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
	CDHNL2525M15-X7	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Left \| Insert: DNGX1507 \| Clamp & clamp screw: UH5 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
	CDHNR3225P15-A4	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Right \| Insert: DNGN1504 \| Clamp & clamp screw: UH1 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
	CDHNL3225P15-A4	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Left \| Insert: DNGN1504 \| Clamp & clamp screw: UH1 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
	CDHNR3225P15-A7	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Right \| Insert: DNGN1507 \| Clamp & clamp screw: UH1 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
	CDHNL3225P15-A7	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Left \| Insert: DNGN1507 \| Clamp & clamp screw: UH1 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
	CDHNR3225P12-X7	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 30 \| S (mm): 32 \| Hand: Right \| Insert: DNGX1207 \| Clamp & clamp screw: UH5 \| Shim: SHDN3A \| Shim screw: TM3507 \| Wrench: LW4
	CDHNL3225P12-X7	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 30 \| S (mm): 32 \| Hand: Left \| Insert: DNGX1207 \| Clamp & clamp screw: UH5 \| Shim: SHDN3A \| Shim screw: TM3507 \| Wrench: LW4
	CDHNR3225P15-X7	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Right \| Insert: DNGX1507 \| Clamp & clamp screw: UH5 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
	CDHNL3225P15-X7	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 33 \| S (mm): 32 \| Hand: Left \| Insert: DNGX1507 \| Clamp & clamp screw: UH5 \| Shim: SHDN4A \| Shim screw: BM510 \| Wrench: LW4
