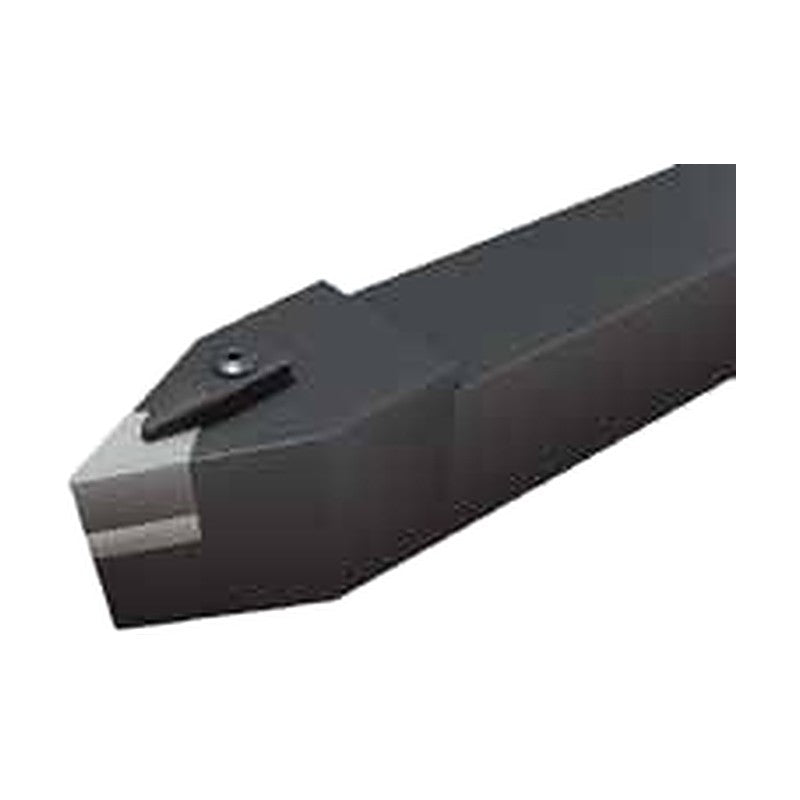

Korloy Ceramic Insert Turning Holder CDNN

Korloy Ceramic Insert Turning Holder CDNN

External turning toolholder with top clamp and shim for DNGN ceramic inserts, 63° angle.

Key features

  • Shank sizes: 2525, 4025
  • Fits inserts: DNGN1504, DNGN1507

Specifications

Holder type External toolholder
Approach angle (drawing) 63°
CDNNN2525M15-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 40 | S (mm): 12.5 | Insert: DNGN1504 | Clamp & clamp screw: UH1 | Shim: SHDN4A | Shim screw: BM510 | Wrench: LW4
CDNNN2525M15-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 40 | S (mm): 12.5 | Insert: DNGN1507 | Clamp & clamp screw: UH1 | Shim: SHDN4A | Shim screw: BM510 | Wrench: LW4
CDNNN4025M15-A7 H (mm): 40 | W (mm): 25 | L (mm): 150 | l1 (mm): 40 | S (mm): 12.5 | Insert: DNGN1507 | Clamp & clamp screw: UH1 | Shim: SHDN4A | Shim screw: BM510 | Wrench: LW4
Turning HoldersKorloy
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Insert Turning Holder CDNN

Brand Korloy·Turning Holders

Available part numbers (3)

CDNNN2525M15-A4, CDNNN2525M15-A7, CDNNN4025M15-A7

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CDNNN2525M15-A4H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 40 | S (mm): 12.5 | Insert: DNGN1504 | Clamp & clamp screw: UH1 | Shim: SHDN4A | Shim screw: BM510 | Wrench: LW4
CDNNN2525M15-A7H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 40 | S (mm): 12.5 | Insert: DNGN1507 | Clamp & clamp screw: UH1 | Shim: SHDN4A | Shim screw: BM510 | Wrench: LW4
CDNNN4025M15-A7H (mm): 40 | W (mm): 25 | L (mm): 150 | l1 (mm): 40 | S (mm): 12.5 | Insert: DNGN1507 | Clamp & clamp screw: UH1 | Shim: SHDN4A | Shim screw: BM510 | Wrench: LW4
