• Korloy Ceramic Insert Turning Holder CEFN
1 1

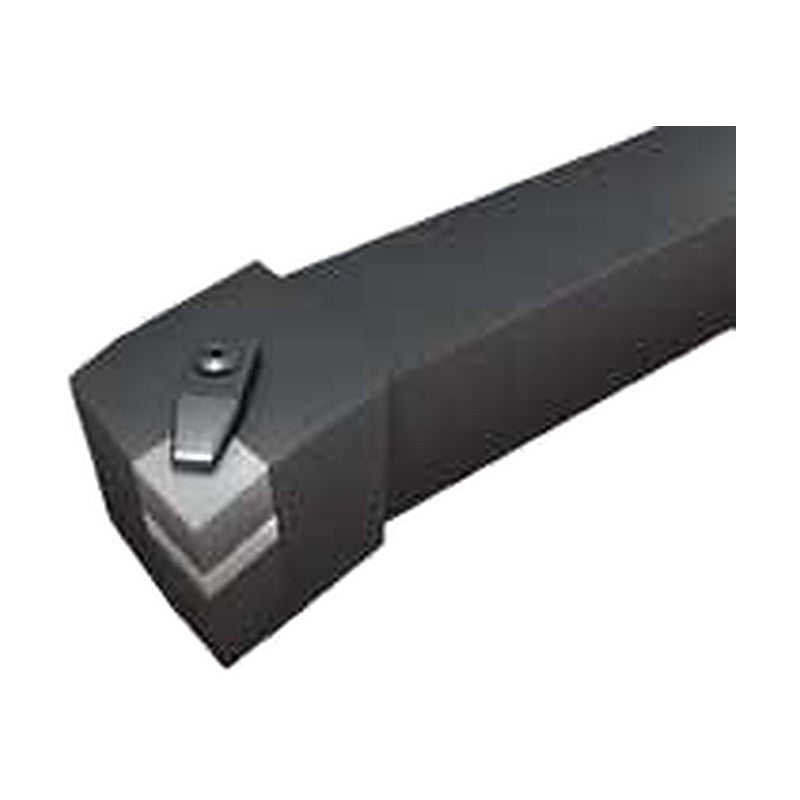

Korloy Ceramic Insert Turning Holder CEFN

Korloy Ceramic Insert Turning Holder CEFN

External turning toolholder with top clamp and shim for ENGN ceramic inserts, 90° angle.

Key features

  • Shank sizes: 2525, 3225
  • Fits inserts: ENGN1307

Specifications

Holder type External toolholder
Approach angle (drawing) 90°
CEFNR2525M13-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 29 | S (mm): 32 | Hand: Right | Insert: ENGN1307 | Clamp & clamp screw: UH1 | Shim: SHEN4A | Shim screw: BM510 | Wrench: LW4
CEFNL2525M13-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 29 | S (mm): 32 | Hand: Left | Insert: ENGN1307 | Clamp & clamp screw: UH1 | Shim: SHEN4A | Shim screw: BM510 | Wrench: LW4
CEFNR3225P13-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 29 | S (mm): 32 | Hand: Right | Insert: ENGN1307 | Clamp & clamp screw: UH1 | Shim: SHEN4A | Shim screw: BM510 | Wrench: LW4
CEFNL3225P13-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 29 | S (mm): 32 | Hand: Left | Insert: ENGN1307 | Clamp & clamp screw: UH1 | Shim: SHEN4A | Shim screw: BM510 | Wrench: LW4
Turning HoldersKorloy
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Insert Turning Holder CEFN

Brand Korloy·Turning Holders

Available part numbers (4)

CEFNR2525M13-A7, CEFNL2525M13-A7, CEFNR3225P13-A7, CEFNL3225P13-A7

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CEFNR2525M13-A7H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 29 | S (mm): 32 | Hand: Right | Insert: ENGN1307 | Clamp & clamp screw: UH1 | Shim: SHEN4A | Shim screw: BM510 | Wrench: LW4
CEFNL2525M13-A7H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 29 | S (mm): 32 | Hand: Left | Insert: ENGN1307 | Clamp & clamp screw: UH1 | Shim: SHEN4A | Shim screw: BM510 | Wrench: LW4
CEFNR3225P13-A7H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 29 | S (mm): 32 | Hand: Right | Insert: ENGN1307 | Clamp & clamp screw: UH1 | Shim: SHEN4A | Shim screw: BM510 | Wrench: LW4
CEFNL3225P13-A7H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 29 | S (mm): 32 | Hand: Left | Insert: ENGN1307 | Clamp & clamp screw: UH1 | Shim: SHEN4A | Shim screw: BM510 | Wrench: LW4
