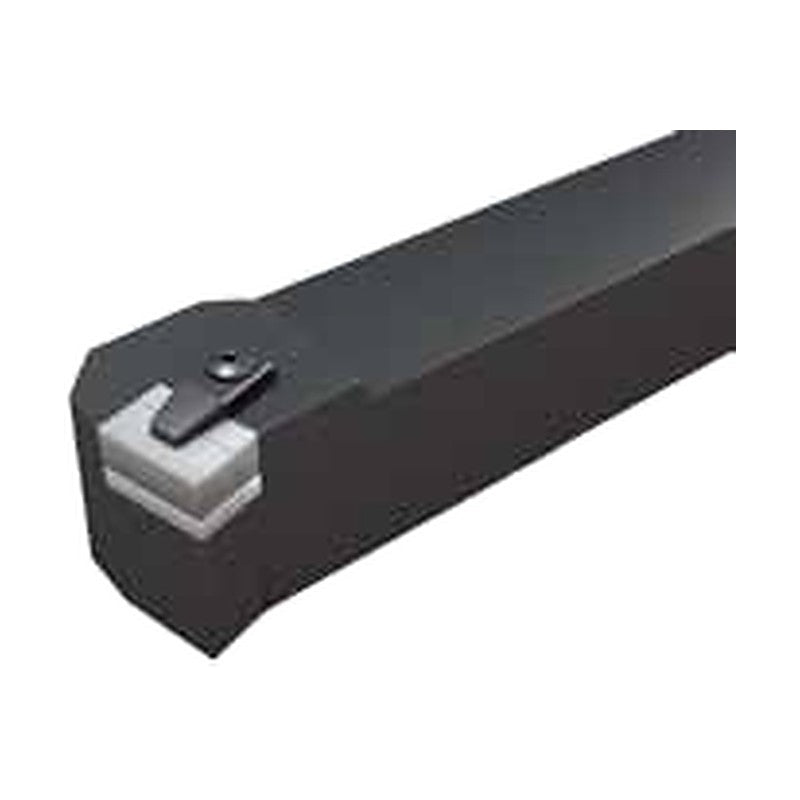

Korloy Ceramic Insert Turning Holder CLKN

Korloy Ceramic Insert Turning Holder CLKN

External turning toolholder with top clamp and shim for LNJ ceramic inserts.

Key features

  • Shank sizes: 6060
  • Fits inserts: LNJ6588, LNJ6688

Specifications

Holder type External toolholder
CLKNR6060V65-A H (mm): 60 | W (mm): 60 | L (mm): 400 | S (mm): 70 | Hand: Right | Insert: LNJ6588 | Clamp & clamp screw: UH25 | Shim: SHLJ65 | Shim screw: BM510 | Wrench: LW6
CLKNL6060V65-A H (mm): 60 | W (mm): 60 | L (mm): 400 | S (mm): 70 | Hand: Left | Insert: LNJ6588 | Clamp & clamp screw: UH25 | Shim: SHLJ65 | Shim screw: BM510 | Wrench: LW6
CLKNR6060V66-A H (mm): 60 | W (mm): 60 | L (mm): 400 | S (mm): 70 | Hand: Right | Insert: LNJ6688 | Clamp & clamp screw: UH25 | Shim: SHLJ66 | Shim screw: BM510 | Wrench: LW6
CLKNL6060V66-A H (mm): 60 | W (mm): 60 | L (mm): 400 | S (mm): 70 | Hand: Left | Insert: LNJ6688 | Clamp & clamp screw: UH25 | Shim: SHLJ66 | Shim screw: BM510 | Wrench: LW6
Turning HoldersKorloy
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Insert Turning Holder CLKN

Brand Korloy·Turning Holders

Available part numbers (4)

CLKNR6060V65-A, CLKNL6060V65-A, CLKNR6060V66-A, CLKNL6060V66-A

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CLKNR6060V65-AH (mm): 60 | W (mm): 60 | L (mm): 400 | S (mm): 70 | Hand: Right | Insert: LNJ6588 | Clamp & clamp screw: UH25 | Shim: SHLJ65 | Shim screw: BM510 | Wrench: LW6
CLKNL6060V65-AH (mm): 60 | W (mm): 60 | L (mm): 400 | S (mm): 70 | Hand: Left | Insert: LNJ6588 | Clamp & clamp screw: UH25 | Shim: SHLJ65 | Shim screw: BM510 | Wrench: LW6
CLKNR6060V66-AH (mm): 60 | W (mm): 60 | L (mm): 400 | S (mm): 70 | Hand: Right | Insert: LNJ6688 | Clamp & clamp screw: UH25 | Shim: SHLJ66 | Shim screw: BM510 | Wrench: LW6
CLKNL6060V66-AH (mm): 60 | W (mm): 60 | L (mm): 400 | S (mm): 70 | Hand: Left | Insert: LNJ6688 | Clamp & clamp screw: UH25 | Shim: SHLJ66 | Shim screw: BM510 | Wrench: LW6
