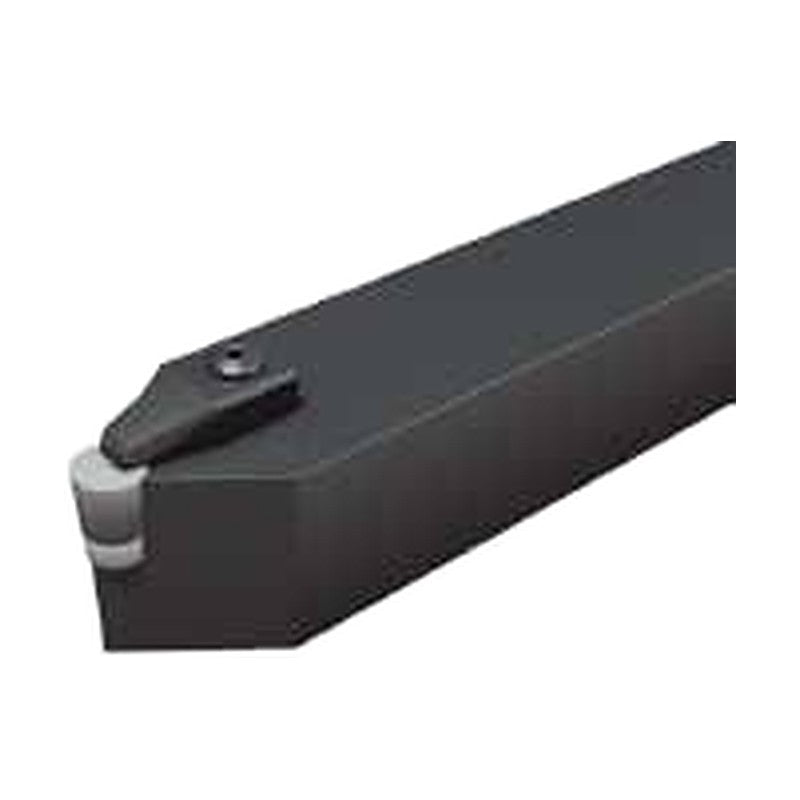

Korloy Ceramic Insert Turning Holder CRDB

Korloy Ceramic Insert Turning Holder CRDB

External turning toolholder with top clamp and shim for RBGX ceramic inserts.

Key features

  • Shank sizes: 2525, 3232
  • Fits inserts: RBGX12T, RBGX16T, RBGX20T, RBGX26T

Specifications

Holder type External toolholder
CRDBN2525M12-A H (mm): 25 | W (mm): 25 | L (mm): 150 | S (mm): 12.5 | Insert: RBGX12T | Clamp & clamp screw: UH1 | Shim: SHRB12 | Shim screw: SH3015 | Wrench: LW4
CRDBN2525M16-A H (mm): 25 | W (mm): 25 | L (mm): 150 | S (mm): 12.5 | Insert: RBGX16T | Clamp & clamp screw: UH1 | Shim: SHRB16 | Shim screw: SH3515 | Wrench: LW4
CRDBN3232P12-A H (mm): 32 | W (mm): 32 | L (mm): 170 | S (mm): 16 | Insert: RBGX12T | Clamp & clamp screw: UH1 | Shim: SHRB12 | Shim screw: SH3015 | Wrench: LW4
CRDBN3232P16-A H (mm): 32 | W (mm): 32 | L (mm): 170 | S (mm): 16 | Insert: RBGX16T | Clamp & clamp screw: UH1 | Shim: SHRB16 | Shim screw: SH3515 | Wrench: LW4
CRDBN3232P20-A H (mm): 32 | W (mm): 32 | L (mm): 170 | S (mm): 16 | Insert: RBGX20T | Clamp & clamp screw: UH4 | Shim: SHRB20 | Shim screw: SH5015 | Wrench: LW6
CRDBN3232P26-A H (mm): 32 | W (mm): 32 | L (mm): 170 | S (mm): 16 | Insert: RBGX26T | Clamp & clamp screw: UH4 | Shim: SHRB26 | Shim screw: SH6015 | Wrench: LW6
Turning HoldersKorloy
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Insert Turning Holder CRDB

Brand Korloy·Turning Holders

Available part numbers (6)

CRDBN2525M12-A, CRDBN2525M16-A, CRDBN3232P12-A, CRDBN3232P16-A, CRDBN3232P20-A, CRDBN3232P26-A

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CRDBN2525M12-AH (mm): 25 | W (mm): 25 | L (mm): 150 | S (mm): 12.5 | Insert: RBGX12T | Clamp & clamp screw: UH1 | Shim: SHRB12 | Shim screw: SH3015 | Wrench: LW4
CRDBN2525M16-AH (mm): 25 | W (mm): 25 | L (mm): 150 | S (mm): 12.5 | Insert: RBGX16T | Clamp & clamp screw: UH1 | Shim: SHRB16 | Shim screw: SH3515 | Wrench: LW4
CRDBN3232P12-AH (mm): 32 | W (mm): 32 | L (mm): 170 | S (mm): 16 | Insert: RBGX12T | Clamp & clamp screw: UH1 | Shim: SHRB12 | Shim screw: SH3015 | Wrench: LW4
CRDBN3232P16-AH (mm): 32 | W (mm): 32 | L (mm): 170 | S (mm): 16 | Insert: RBGX16T | Clamp & clamp screw: UH1 | Shim: SHRB16 | Shim screw: SH3515 | Wrench: LW4
CRDBN3232P20-AH (mm): 32 | W (mm): 32 | L (mm): 170 | S (mm): 16 | Insert: RBGX20T | Clamp & clamp screw: UH4 | Shim: SHRB20 | Shim screw: SH5015 | Wrench: LW6
CRDBN3232P26-AH (mm): 32 | W (mm): 32 | L (mm): 170 | S (mm): 16 | Insert: RBGX26T | Clamp & clamp screw: UH4 | Shim: SHRB26 | Shim screw: SH6015 | Wrench: LW6
