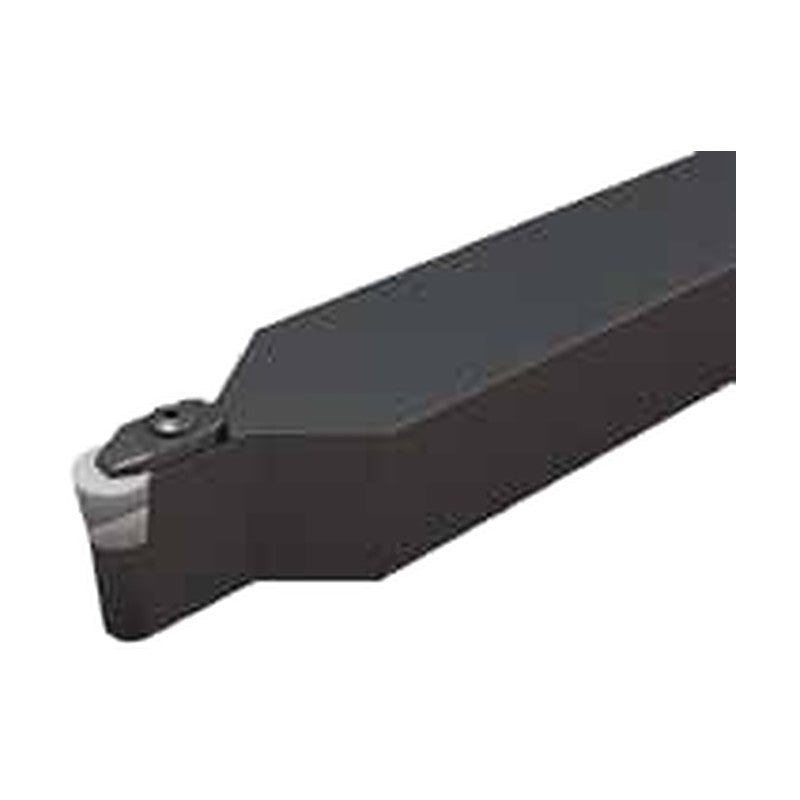

Korloy Ceramic Insert Turning Holder CRDC

External turning toolholder with top clamp and shim for RCGX ceramic inserts.

Key features

Shank sizes: 3225, 5040
Fits inserts: RCGX0604, RCGX0606, RCGX0607, RCGX0907, RCGX1207, RCGX1510, RCGX1910, RCGX2512

Specifications

Holder type	External toolholder

CRDCN3225P06-A4		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| S (mm): 20 \| Insert: RCGX0604 \| Clamp & clamp screw: CLRC6 \| Shim: SHRC102 \| Shim screw: FM210 \| Wrench: LW3
CRDCN3225P06-A6		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| S (mm): 20 \| Insert: RCGX0606 \| Clamp & clamp screw: CLRC6 \| Shim: SHRC102 \| Shim screw: FM210 \| Wrench: LW3
CRDCN3225P06-A7		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| S (mm): 20 \| Insert: RCGX0607 \| Clamp & clamp screw: CLRC6 \| Shim: SHRC102 \| Shim screw: FM210 \| Wrench: LW3
CRDCN3225P09-A7		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| S (mm): 20 \| Insert: RCGX0907 \| Clamp & clamp screw: CLRC9 \| Shim: SHRC103 \| Shim screw: FM315 \| Wrench: LW4
CRDCN3225P12-A7		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| S (mm): 20 \| Insert: RCGX1207 \| Clamp & clamp screw: UH1 \| Shim: SHRC104 \| Shim screw: FM415 \| Wrench: LW4
CRDCN5040T12-A7		H (mm): 50 \| W (mm): 40 \| L (mm): 300 \| S (mm): 30 \| Insert: RCGX1207 \| Clamp & clamp screw: UH1 \| Shim: SHRC104 \| Shim screw: FM415 \| Wrench: LW4
CRDCN5040T15-A10		H (mm): 50 \| W (mm): 40 \| L (mm): 300 \| S (mm): 35 \| Insert: RCGX1510 \| Clamp & clamp screw: UH1 \| Shim: SHRC105 \| Shim screw: FM415 \| Wrench: LW4
CRDCN5040T19-A10		H (mm): 50 \| W (mm): 40 \| L (mm): 300 \| S (mm): 45 \| Insert: RCGX1910 \| Clamp & clamp screw: UH4 \| Shim: SHRC106 \| Shim screw: FM415 \| Wrench: LW6
CRDCN5040T25-A12		H (mm): 50 \| W (mm): 40 \| L (mm): 300 \| S (mm): 50 \| Insert: RCGX2512 \| Clamp & clamp screw: UH25 \| Shim: SHRC108 \| Shim screw: FM615 \| Wrench: LW6

Turning HoldersKorloy

9 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Insert Turning Holder CRDC

Brand Korloy·Turning Holders

Available part numbers (9)

CRDCN3225P06-A4, CRDCN3225P06-A6, CRDCN3225P06-A7, CRDCN3225P09-A7, CRDCN3225P12-A7, CRDCN5040T12-A7, CRDCN5040T15-A10, CRDCN5040T19-A10, CRDCN5040T25-A12
