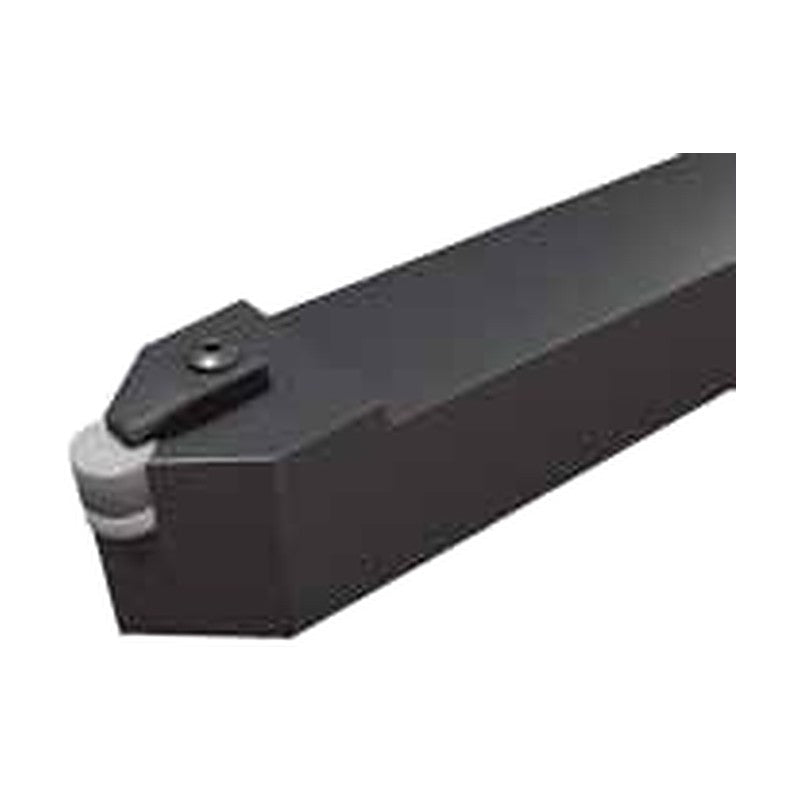

Korloy Ceramic Insert Turning Holder CRDN

Korloy Ceramic Insert Turning Holder CRDN

External turning toolholder with top clamp and shim for RNGN, RNGX ceramic inserts.

Key features

  • Shank sizes: 2525, 3225
  • Fits inserts: RNGN0904, RNGN0907, RNGN1204, RNGN1207, RNGN1507, RNGN1907, RNGX1207

Specifications

Holder type External toolholder
CRDNN2525M09-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 12.5 | Insert: RNGN0904 | Clamp & clamp screw: UH1 | Shim: SHRN3A | Shim screw: TM3507 | Wrench: LW4
CRDNN2525M09-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 12.5 | Insert: RNGN0907 | Clamp & clamp screw: UH1 | Shim: SHRN3A | Shim screw: TM3507 | Wrench: LW4
CRDNN2525M12-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 12.5 | Insert: RNGN1204 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRDNN2525M12-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 12.5 | Insert: RNGN1207 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRDNN2525M12-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 12.5 | Insert: RNGX1207 | Clamp & clamp screw: UH5 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRDNN3225P12-A4 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 32 | S (mm): 12.5 | Insert: RNGN1204 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRDNN3225P12-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 32 | S (mm): 12.5 | Insert: RNGN1207 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRDNN3225P12-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 32 | S (mm): 12.5 | Insert: RNGX1207 | Clamp & clamp screw: UH5 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRDNN3225P15-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 32 | S (mm): 12.5 | Insert: RNGN1507 | Clamp & clamp screw: UH1 | Shim: SHRN5A | Shim screw: BM510 | Wrench: LW4
CRDNN3225P19-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 32 | S (mm): 12.5 | Insert: RNGN1907 | Clamp & clamp screw: UH4 | Shim: SHRN6 | Shim screw: FM512 | Wrench: LW6
Turning HoldersKorloy
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Insert Turning Holder CRDN

Brand Korloy·Turning Holders

Available part numbers (10)

CRDNN2525M09-A4, CRDNN2525M09-A7, CRDNN2525M12-A4, CRDNN2525M12-A7, CRDNN2525M12-X7, CRDNN3225P12-A4, CRDNN3225P12-A7, CRDNN3225P12-X7, CRDNN3225P15-A7, CRDNN3225P19-A7

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CRDNN2525M09-A4H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 12.5 | Insert: RNGN0904 | Clamp & clamp screw: UH1 | Shim: SHRN3A | Shim screw: TM3507 | Wrench: LW4
CRDNN2525M09-A7H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 12.5 | Insert: RNGN0907 | Clamp & clamp screw: UH1 | Shim: SHRN3A | Shim screw: TM3507 | Wrench: LW4
CRDNN2525M12-A4H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 12.5 | Insert: RNGN1204 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRDNN2525M12-A7H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 12.5 | Insert: RNGN1207 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRDNN2525M12-X7H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 12.5 | Insert: RNGX1207 | Clamp & clamp screw: UH5 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRDNN3225P12-A4H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 32 | S (mm): 12.5 | Insert: RNGN1204 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRDNN3225P12-A7H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 32 | S (mm): 12.5 | Insert: RNGN1207 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRDNN3225P12-X7H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 32 | S (mm): 12.5 | Insert: RNGX1207 | Clamp & clamp screw: UH5 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRDNN3225P15-A7H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 32 | S (mm): 12.5 | Insert: RNGN1507 | Clamp & clamp screw: UH1 | Shim: SHRN5A | Shim screw: BM510 | Wrench: LW4
CRDNN3225P19-A7H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 32 | S (mm): 12.5 | Insert: RNGN1907 | Clamp & clamp screw: UH4 | Shim: SHRN6 | Shim screw: FM512 | Wrench: LW6
