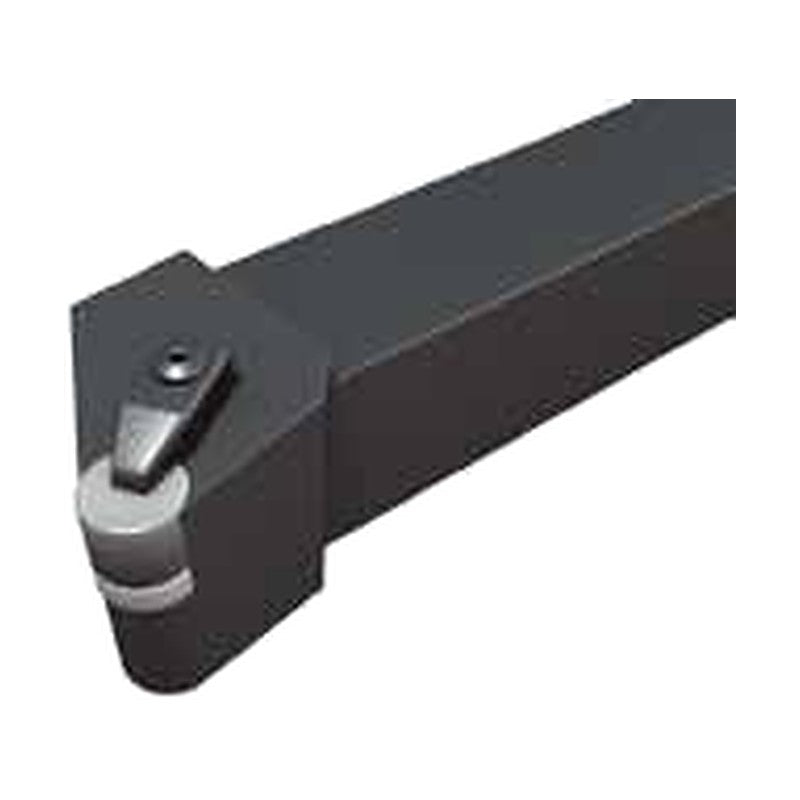

Korloy Ceramic Insert Turning Holder CRGN

Korloy Ceramic Insert Turning Holder CRGN

External turning toolholder with top clamp and shim for RNGN, RNGX ceramic inserts.

Key features

  • Shank sizes: 2525, 3225
  • Fits inserts: RNGN0904, RNGN0907, RNGN1204, RNGN1207, RNGN1507, RNGN1907, RNGX1207

Specifications

Holder type External toolholder
CRGNR2525M09-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 32 | Hand: Right | Insert: RNGN0904 | Clamp & clamp screw: UH1 | Shim: SHRN3A | Shim screw: TM3507 | Wrench: LW4
CRGNL2525M09-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 32 | Hand: Left | Insert: RNGN0904 | Clamp & clamp screw: UH1 | Shim: SHRN3A | Shim screw: TM3507 | Wrench: LW4
CRGNR2525M09-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 32 | Hand: Right | Insert: RNGN0907 | Clamp & clamp screw: UH1 | Shim: SHRN3A | Shim screw: TM3507 | Wrench: LW4
CRGNL2525M09-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 32 | Hand: Left | Insert: RNGN0907 | Clamp & clamp screw: UH1 | Shim: SHRN3A | Shim screw: TM3507 | Wrench: LW4
CRGNR2525M12-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: RNGN1204 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNL2525M12-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: RNGN1204 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNR2525M12-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: RNGN1207 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNL2525M12-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: RNGN1207 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNR2525M12-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: RNGX1207 | Clamp & clamp screw: UH5 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNL2525M12-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: RNGX1207 | Clamp & clamp screw: UH5 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNR3225P12-A4 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: RNGN1204 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNL3225P12-A4 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: RNGN1204 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNR3225P12-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: RNGN1207 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNL3225P12-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: RNGN1207 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNR3225P12-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: RNGX1207 | Clamp & clamp screw: UH5 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNL3225P12-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: RNGX1207 | Clamp & clamp screw: UH5 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNR3225P15-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 37 | S (mm): 32 | Hand: Right | Insert: RNGN1507 | Clamp & clamp screw: UH1 | Shim: SHRN5A | Shim screw: BM510 | Wrench: LW4
CRGNL3225P15-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 37 | S (mm): 32 | Hand: Left | Insert: RNGN1507 | Clamp & clamp screw: UH1 | Shim: SHRN5A | Shim screw: BM510 | Wrench: LW4
CRGNR3225P19-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 45 | S (mm): 32 | Hand: Right | Insert: RNGN1907 | Clamp & clamp screw: UH4 | Shim: SHRN6 | Shim screw: FM512 | Wrench: LW6
CRGNL3225P19-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 45 | S (mm): 32 | Hand: Left | Insert: RNGN1907 | Clamp & clamp screw: UH4 | Shim: SHRN6 | Shim screw: FM512 | Wrench: LW6
Turning HoldersKorloy
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Insert Turning Holder CRGN

Brand Korloy·Turning Holders

Available part numbers (20)

CRGNR2525M09-A4, CRGNL2525M09-A4, CRGNR2525M09-A7, CRGNL2525M09-A7, CRGNR2525M12-A4, CRGNL2525M12-A4, CRGNR2525M12-A7, CRGNL2525M12-A7, CRGNR2525M12-X7, CRGNL2525M12-X7 + 10 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CRGNR2525M09-A4H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 32 | Hand: Right | Insert: RNGN0904 | Clamp & clamp screw: UH1 | Shim: SHRN3A | Shim screw: TM3507 | Wrench: LW4
CRGNL2525M09-A4H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 32 | Hand: Left | Insert: RNGN0904 | Clamp & clamp screw: UH1 | Shim: SHRN3A | Shim screw: TM3507 | Wrench: LW4
CRGNR2525M09-A7H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 32 | Hand: Right | Insert: RNGN0907 | Clamp & clamp screw: UH1 | Shim: SHRN3A | Shim screw: TM3507 | Wrench: LW4
CRGNL2525M09-A7H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 32 | Hand: Left | Insert: RNGN0907 | Clamp & clamp screw: UH1 | Shim: SHRN3A | Shim screw: TM3507 | Wrench: LW4
CRGNR2525M12-A4H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: RNGN1204 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNL2525M12-A4H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: RNGN1204 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNR2525M12-A7H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: RNGN1207 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNL2525M12-A7H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: RNGN1207 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNR2525M12-X7H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: RNGX1207 | Clamp & clamp screw: UH5 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNL2525M12-X7H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: RNGX1207 | Clamp & clamp screw: UH5 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNR3225P12-A4H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: RNGN1204 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNL3225P12-A4H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: RNGN1204 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNR3225P12-A7H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: RNGN1207 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNL3225P12-A7H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: RNGN1207 | Clamp & clamp screw: UH1 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNR3225P12-X7H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: RNGX1207 | Clamp & clamp screw: UH5 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNL3225P12-X7H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: RNGX1207 | Clamp & clamp screw: UH5 | Shim: SHRN4A | Shim screw: BM510 | Wrench: LW4
CRGNR3225P15-A7H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 37 | S (mm): 32 | Hand: Right | Insert: RNGN1507 | Clamp & clamp screw: UH1 | Shim: SHRN5A | Shim screw: BM510 | Wrench: LW4
CRGNL3225P15-A7H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 37 | S (mm): 32 | Hand: Left | Insert: RNGN1507 | Clamp & clamp screw: UH1 | Shim: SHRN5A | Shim screw: BM510 | Wrench: LW4
CRGNR3225P19-A7H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 45 | S (mm): 32 | Hand: Right | Insert: RNGN1907 | Clamp & clamp screw: UH4 | Shim: SHRN6 | Shim screw: FM512 | Wrench: LW6
CRGNL3225P19-A7H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 45 | S (mm): 32 | Hand: Left | Insert: RNGN1907 | Clamp & clamp screw: UH4 | Shim: SHRN6 | Shim screw: FM512 | Wrench: LW6
