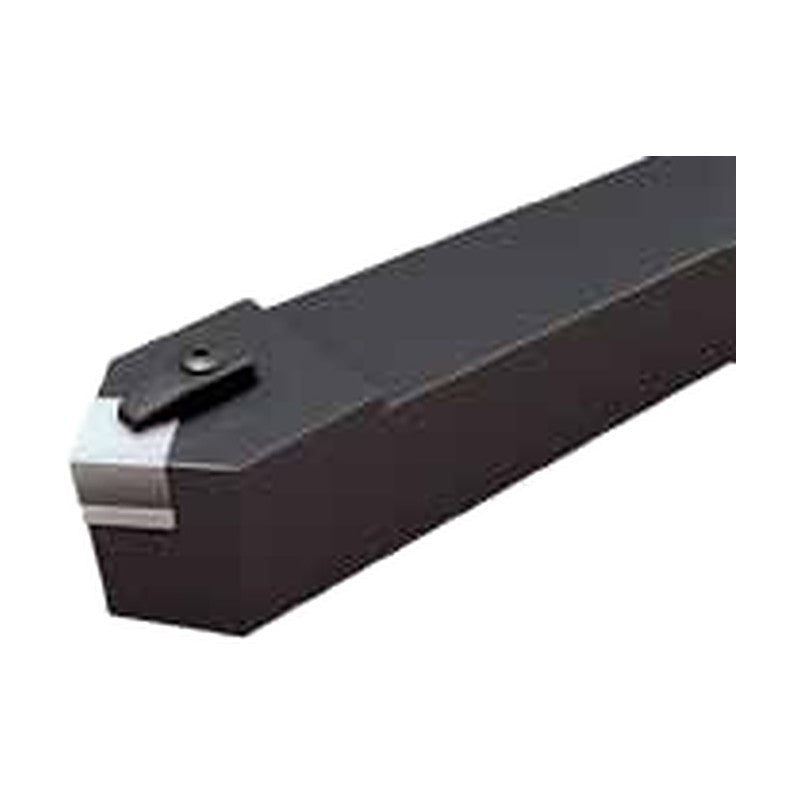

External turning toolholder with top clamp and shim for SNGN, SNGX ceramic inserts, 45° angle.

Key features

  • Shank sizes: 2525, 3225, 4040, 5050
  • Fits inserts: SNGN1204, SNGN1207, SNGN1507, SNGN1907, SNGN2509, SNGX1207, SNGX1507

Specifications

Holder type External toolholder
Approach angle (drawing) 45°
CSDNN2525M12-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 12.5 | Insert: SNGN1204 | Clamp & clamp screw: UH1 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSDNN2525M12-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 12.5 | Insert: SNGN1207 | Clamp & clamp screw: UH1 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSDNN2525M12-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 12.5 | Insert: SNGX1207 | Clamp & clamp screw: UH5 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSDNN2525M15-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 38 | S (mm): 12.5 | Insert: SNGN1507 | Clamp & clamp screw: UH1 | Shim: SHSN5A | Shim screw: FM512 | Wrench: LW4
CSDNN2525M15-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 38 | S (mm): 12.5 | Insert: SNGX1507 | Clamp & clamp screw: UH5 | Shim: SHSN5A | Shim screw: FM512 | Wrench: LW4
CSDNN3225P12-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 12.5 | Insert: SNGN1207 | Clamp & clamp screw: UH1 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSDNN3225P12-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 12.5 | Insert: SNGX1207 | Clamp & clamp screw: UH5 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSDNN3225P15-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 38 | S (mm): 12.5 | Insert: SNGN1507 | Clamp & clamp screw: UH1 | Shim: SHSN5A | Shim screw: FM512 | Wrench: LW4
CSDNN3225P15-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 38 | S (mm): 12.5 | Insert: SNGX1507 | Clamp & clamp screw: UH5 | Shim: SHSN5A | Shim screw: FM512 | Wrench: LW4
CSDNN4040S19-A7 H (mm): 40 | W (mm): 40 | L (mm): 250 | l1 (mm): 60 | S (mm): 20 | Insert: SNGN1907 | Clamp & clamp screw: UH4 | Shim: SHSN6A | Shim screw: FM612 | Wrench: LW6
CSDNN5050T25-A9 H (mm): 50 | W (mm): 50 | L (mm): 300 | l1 (mm): 60 | S (mm): 25 | Insert: SNGN2509 | Clamp & clamp screw: UH25 | Shim: SHSN8 | Shim screw: FM815 | Wrench: LW6
