• Korloy Ceramic Insert Turning Holder CSRC
1 1

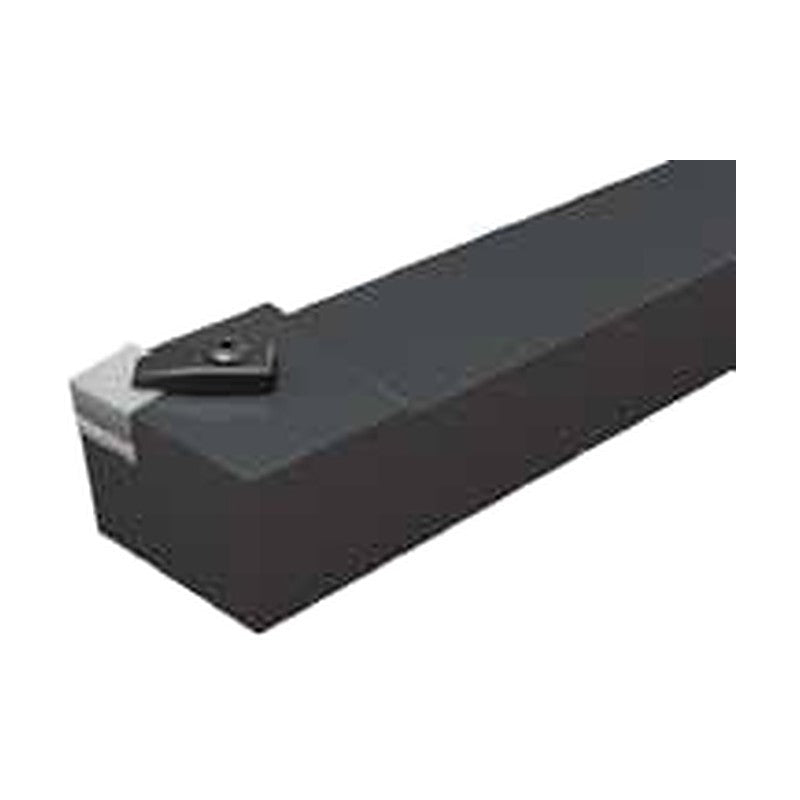

Korloy Ceramic Insert Turning Holder CSRC

Korloy Ceramic Insert Turning Holder CSRC

External turning toolholder with top clamp and shim for SCGN ceramic inserts, 75° angle.

Key features

  • Shank sizes: 2525, 3225
  • Fits inserts: SCGN1204

Specifications

Holder type External toolholder
Approach angle (drawing) 75°
CSRCR2525M12-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 27 | Hand: Right | Insert: SCGN1204 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
CSRCL2525M12-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 27 | Hand: Left | Insert: SCGN1204 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
CSRCR3225P12-A4 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 32 | S (mm): 27 | Hand: Right | Insert: SCGN1204 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
CSRCL3225P12-A4 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 32 | S (mm): 27 | Hand: Left | Insert: SCGN1204 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
Turning HoldersKorloy
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Insert Turning Holder CSRC

Brand Korloy·Turning Holders

Available part numbers (4)

CSRCR2525M12-A4, CSRCL2525M12-A4, CSRCR3225P12-A4, CSRCL3225P12-A4

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CSRCR2525M12-A4H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 27 | Hand: Right | Insert: SCGN1204 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
CSRCL2525M12-A4H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 32 | S (mm): 27 | Hand: Left | Insert: SCGN1204 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
CSRCR3225P12-A4H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 32 | S (mm): 27 | Hand: Right | Insert: SCGN1204 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
CSRCL3225P12-A4H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 32 | S (mm): 27 | Hand: Left | Insert: SCGN1204 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
