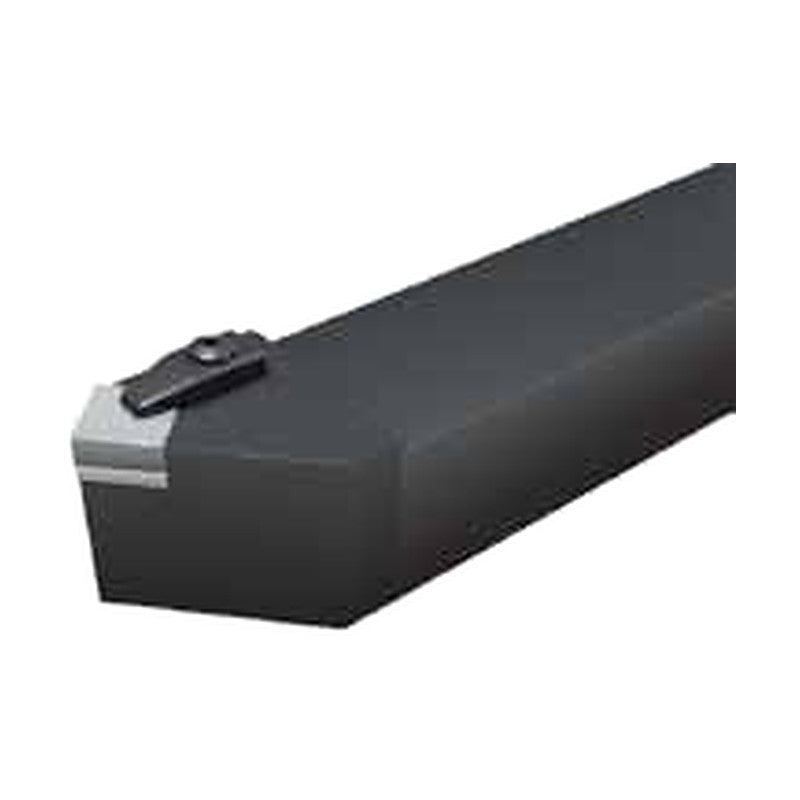

Korloy Ceramic Insert Turning Holder CSSC

External turning toolholder with top clamp and shim for SCGN ceramic inserts, 45° angle.

Key features

Shank sizes: 2525, 3225
Fits inserts: SCGN1204, SCGN1206

Specifications

Holder type	External toolholder
Approach angle (drawing)	45°

CSSCR2525M12-A4		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 35 \| S (mm): 32 \| Hand: Right \| Insert: SCGN1204 \| Clamp & clamp screw: UH1 \| Shim: SHSC4A \| Shim screw: SP3 \| Wrench: LW4
CSSCL2525M12-A4		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 35 \| S (mm): 32 \| Hand: Left \| Insert: SCGN1204 \| Clamp & clamp screw: UH1 \| Shim: SHSC4A \| Shim screw: SP3 \| Wrench: LW4
CSSCR2525M12-A6		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 35 \| S (mm): 32 \| Hand: Right \| Insert: SCGN1206 \| Clamp & clamp screw: UH1 \| Shim: SHSC4A \| Shim screw: SP3 \| Wrench: LW4
CSSCL2525M12-A6		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 35 \| S (mm): 32 \| Hand: Left \| Insert: SCGN1206 \| Clamp & clamp screw: UH1 \| Shim: SHSC4A \| Shim screw: SP3 \| Wrench: LW4
CSSCR3225P12-A4		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 32 \| Hand: Right \| Insert: SCGN1204 \| Clamp & clamp screw: UH1 \| Shim: SHSC4A \| Shim screw: SP3 \| Wrench: LW4
CSSCL3225P12-A4		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 32 \| Hand: Left \| Insert: SCGN1204 \| Clamp & clamp screw: UH1 \| Shim: SHSC4A \| Shim screw: SP3 \| Wrench: LW4
CSSCR3225P12-A6		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 32 \| Hand: Right \| Insert: SCGN1206 \| Clamp & clamp screw: UH1 \| Shim: SHSC4A \| Shim screw: SP3 \| Wrench: LW4
CSSCL3225P12-A6		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 32 \| Hand: Left \| Insert: SCGN1206 \| Clamp & clamp screw: UH1 \| Shim: SHSC4A \| Shim screw: SP3 \| Wrench: LW4

Turning HoldersKorloy

8 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Insert Turning Holder CSSC

Brand Korloy·Turning Holders

Available part numbers (8)

CSSCR2525M12-A4, CSSCL2525M12-A4, CSSCR2525M12-A6, CSSCL2525M12-A6, CSSCR3225P12-A4, CSSCL3225P12-A4, CSSCR3225P12-A6, CSSCL3225P12-A6

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CSSCR2525M12-A4	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 35 \| S (mm): 32 \| Hand: Right \| Insert: SCGN1204 \| Clamp & clamp screw: UH1 \| Shim: SHSC4A \| Shim screw: SP3 \| Wrench: LW4
	CSSCL2525M12-A4	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 35 \| S (mm): 32 \| Hand: Left \| Insert: SCGN1204 \| Clamp & clamp screw: UH1 \| Shim: SHSC4A \| Shim screw: SP3 \| Wrench: LW4
	CSSCR2525M12-A6	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 35 \| S (mm): 32 \| Hand: Right \| Insert: SCGN1206 \| Clamp & clamp screw: UH1 \| Shim: SHSC4A \| Shim screw: SP3 \| Wrench: LW4
	CSSCL2525M12-A6	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 35 \| S (mm): 32 \| Hand: Left \| Insert: SCGN1206 \| Clamp & clamp screw: UH1 \| Shim: SHSC4A \| Shim screw: SP3 \| Wrench: LW4
	CSSCR3225P12-A4	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 32 \| Hand: Right \| Insert: SCGN1204 \| Clamp & clamp screw: UH1 \| Shim: SHSC4A \| Shim screw: SP3 \| Wrench: LW4
	CSSCL3225P12-A4	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 32 \| Hand: Left \| Insert: SCGN1204 \| Clamp & clamp screw: UH1 \| Shim: SHSC4A \| Shim screw: SP3 \| Wrench: LW4
	CSSCR3225P12-A6	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 32 \| Hand: Right \| Insert: SCGN1206 \| Clamp & clamp screw: UH1 \| Shim: SHSC4A \| Shim screw: SP3 \| Wrench: LW4
	CSSCL3225P12-A6	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 35 \| S (mm): 32 \| Hand: Left \| Insert: SCGN1206 \| Clamp & clamp screw: UH1 \| Shim: SHSC4A \| Shim screw: SP3 \| Wrench: LW4
