Korloy Ceramic Insert Turning Holder CSSN

Korloy Ceramic Insert Turning Holder CSSN

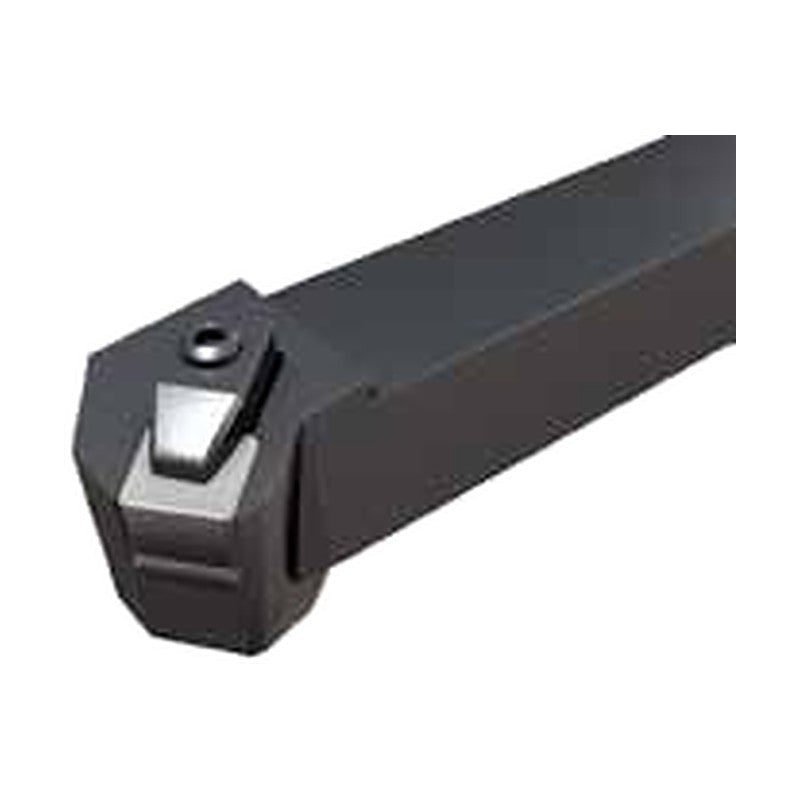

External turning toolholder with top clamp and shim for SNGN, SNGX ceramic inserts, 45° angle.

Key features

  • Shank sizes: 2525, 3225
  • Fits inserts: SNGN1204, SNGN1207, SNGN1507, SNGX1207, SNGX1507

Specifications

Holder type External toolholder
Approach angle (drawing) 45°
CSSNR2525M12-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: SNGN1204 | Clamp & clamp screw: UH1 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSSNL2525M12-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: SNGN1204 | Clamp & clamp screw: UH1 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSSNR2525M12-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: SNGN1207 | Clamp & clamp screw: UH1 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSSNL2525M12-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: SNGN1207 | Clamp & clamp screw: UH1 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSSNR2525M12-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: SNGX1207 | Clamp & clamp screw: UH5 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSSNL2525M12-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: SNGX1207 | Clamp & clamp screw: UH5 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSSNR2525M15-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 37 | S (mm): 32 | Hand: Right | Insert: SNGN1507 | Clamp & clamp screw: UH1 | Shim: SHSN5A | Shim screw: FM512 | Wrench: LW4
CSSNL2525M15-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 37 | S (mm): 32 | Hand: Left | Insert: SNGN1507 | Clamp & clamp screw: UH1 | Shim: SHSN5A | Shim screw: FM512 | Wrench: LW4
CSSNR2525M15-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 37 | S (mm): 32 | Hand: Right | Insert: SNGX1507 | Clamp & clamp screw: UH5 | Shim: SHSN5A | Shim screw: FM512 | Wrench: LW4
CSSNL2525M15-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 37 | S (mm): 32 | Hand: Left | Insert: SNGX1507 | Clamp & clamp screw: UH5 | Shim: SHSN5A | Shim screw: FM512 | Wrench: LW4
CSSNR3225P12-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: SNGN1207 | Clamp & clamp screw: UH1 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSSNL3225P12-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: SNGN1207 | Clamp & clamp screw: UH1 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSSNR3225P12-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Right | Insert: SNGX1207 | Clamp & clamp screw: UH5 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSSNL3225P12-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 35 | S (mm): 32 | Hand: Left | Insert: SNGX1207 | Clamp & clamp screw: UH5 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSSNR3225P15-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 37 | S (mm): 32 | Hand: Right | Insert: SNGN1507 | Clamp & clamp screw: UH1 | Shim: SHSN5A | Shim screw: FM512 | Wrench: LW4
CSSNL3225P15-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 37 | S (mm): 32 | Hand: Left | Insert: SNGN1507 | Clamp & clamp screw: UH1 | Shim: SHSN5A | Shim screw: FM512 | Wrench: LW4
CSSNR3225P15-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 37 | S (mm): 32 | Hand: Right | Insert: SNGX1507 | Clamp & clamp screw: UH5 | Shim: SHSN5A | Shim screw: FM512 | Wrench: LW4
CSSNL3225P15-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 37 | S (mm): 32 | Hand: Left | Insert: SNGX1507 | Clamp & clamp screw: UH5 | Shim: SHSN5A | Shim screw: FM512 | Wrench: LW4
