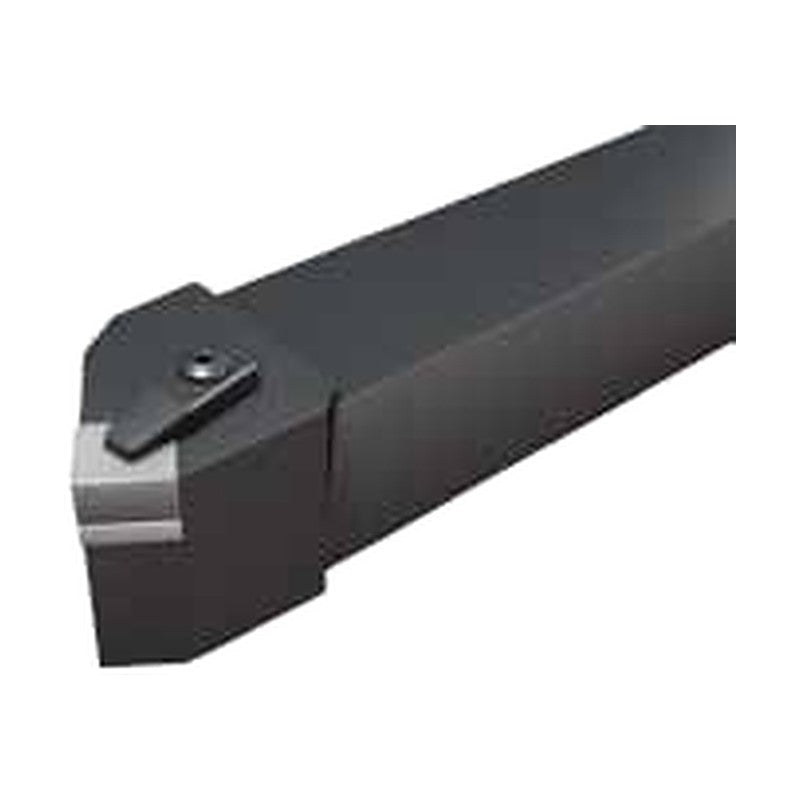

Korloy Ceramic Insert Turning Holder CSTP

Korloy Ceramic Insert Turning Holder CSTP

External turning toolholder with top clamp and shim for SPGN ceramic inserts, 60° angle.

Key features

  • Shank sizes: 2020, 2525
  • Fits inserts: SPGN0903, SPGN1203, SPGN1204

Specifications

Holder type External toolholder
Approach angle (drawing) 60°
CSTPR2020K09-A3 H (mm): 20 | W (mm): 20 | L (mm): 125 | l1 (mm): 24 | S (mm): 17 | Hand: Right | Insert: SPGN0903 | Clamp & clamp screw: UH1 | Shim: SHSC3A | Shim screw: SP3 | Wrench: LW4
CSTPL2020K09-A3 H (mm): 20 | W (mm): 20 | L (mm): 125 | l1 (mm): 24 | S (mm): 17 | Hand: Left | Insert: SPGN0903 | Clamp & clamp screw: UH1 | Shim: SHSC3A | Shim screw: SP3 | Wrench: LW4
CSTPR2020K12-A3 H (mm): 20 | W (mm): 20 | L (mm): 125 | l1 (mm): 30 | S (mm): 17 | Hand: Right | Insert: SPGN1203 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
CSTPL2020K12-A3 H (mm): 20 | W (mm): 20 | L (mm): 125 | l1 (mm): 30 | S (mm): 17 | Hand: Left | Insert: SPGN1203 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
CSTPR2020K12-A4 H (mm): 20 | W (mm): 20 | L (mm): 125 | l1 (mm): 30 | S (mm): 17 | Hand: Right | Insert: SPGN1204 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
CSTPL2020K12-A4 H (mm): 20 | W (mm): 20 | L (mm): 125 | l1 (mm): 30 | S (mm): 17 | Hand: Left | Insert: SPGN1204 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
CSTPR2525M12-A3 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 30 | S (mm): 22 | Hand: Right | Insert: SPGN1203 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
CSTPL2525M12-A3 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 30 | S (mm): 22 | Hand: Left | Insert: SPGN1203 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
CSTPR2525M12-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 30 | S (mm): 22 | Hand: Right | Insert: SPGN1204 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
CSTPL2525M12-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 30 | S (mm): 22 | Hand: Left | Insert: SPGN1204 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
Turning HoldersKorloy
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Insert Turning Holder CSTP

Brand Korloy·Turning Holders

Available part numbers (10)

CSTPR2020K09-A3, CSTPL2020K09-A3, CSTPR2020K12-A3, CSTPL2020K12-A3, CSTPR2020K12-A4, CSTPL2020K12-A4, CSTPR2525M12-A3, CSTPL2525M12-A3, CSTPR2525M12-A4, CSTPL2525M12-A4

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CSTPR2020K09-A3H (mm): 20 | W (mm): 20 | L (mm): 125 | l1 (mm): 24 | S (mm): 17 | Hand: Right | Insert: SPGN0903 | Clamp & clamp screw: UH1 | Shim: SHSC3A | Shim screw: SP3 | Wrench: LW4
CSTPL2020K09-A3H (mm): 20 | W (mm): 20 | L (mm): 125 | l1 (mm): 24 | S (mm): 17 | Hand: Left | Insert: SPGN0903 | Clamp & clamp screw: UH1 | Shim: SHSC3A | Shim screw: SP3 | Wrench: LW4
CSTPR2020K12-A3H (mm): 20 | W (mm): 20 | L (mm): 125 | l1 (mm): 30 | S (mm): 17 | Hand: Right | Insert: SPGN1203 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
CSTPL2020K12-A3H (mm): 20 | W (mm): 20 | L (mm): 125 | l1 (mm): 30 | S (mm): 17 | Hand: Left | Insert: SPGN1203 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
CSTPR2020K12-A4H (mm): 20 | W (mm): 20 | L (mm): 125 | l1 (mm): 30 | S (mm): 17 | Hand: Right | Insert: SPGN1204 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
CSTPL2020K12-A4H (mm): 20 | W (mm): 20 | L (mm): 125 | l1 (mm): 30 | S (mm): 17 | Hand: Left | Insert: SPGN1204 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
CSTPR2525M12-A3H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 30 | S (mm): 22 | Hand: Right | Insert: SPGN1203 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
CSTPL2525M12-A3H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 30 | S (mm): 22 | Hand: Left | Insert: SPGN1203 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
CSTPR2525M12-A4H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 30 | S (mm): 22 | Hand: Right | Insert: SPGN1204 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
CSTPL2525M12-A4H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 30 | S (mm): 22 | Hand: Left | Insert: SPGN1204 | Clamp & clamp screw: UH1 | Shim: SHSC4A | Shim screw: SP3 | Wrench: LW4
