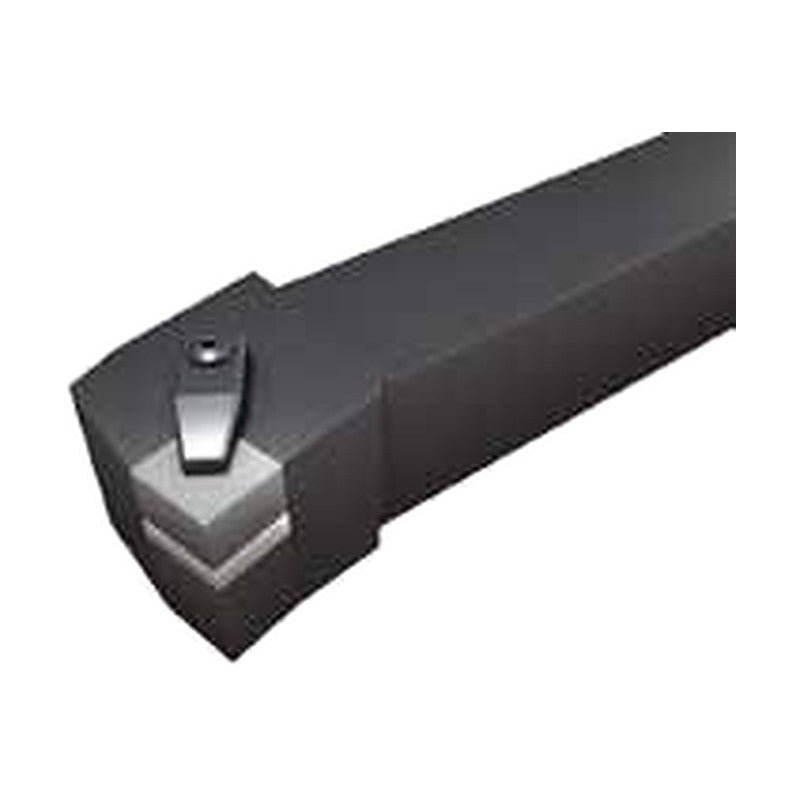

Korloy Ceramic Insert Turning Holder CSYN

Korloy Ceramic Insert Turning Holder CSYN

External turning toolholder with top clamp and shim for SNGN, SNGX ceramic inserts, 85° angle.

Key features

  • Shank sizes: 2525, 3225
  • Fits inserts: SNGN1204, SNGN1207, SNGN1507, SNGX1207, SNGX1507

Specifications

Holder type External toolholder
Approach angle (drawing) 85°
CSYNR2525M12-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 27 | S (mm): 32 | Hand: Right | Insert: SNGN1204 | Clamp & clamp screw: UH1 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSYNL2525M12-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 27 | S (mm): 32 | Hand: Left | Insert: SNGN1204 | Clamp & clamp screw: UH1 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSYNR2525M12-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 27 | S (mm): 32 | Hand: Right | Insert: SNGN1207 | Clamp & clamp screw: UH1 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSYNL2525M12-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 27 | S (mm): 32 | Hand: Left | Insert: SNGN1207 | Clamp & clamp screw: UH1 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSYNR2525M12-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 27 | S (mm): 32 | Hand: Right | Insert: SNGX1207 | Clamp & clamp screw: UH5 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSYNL2525M12-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 27 | S (mm): 32 | Hand: Left | Insert: SNGX1207 | Clamp & clamp screw: UH5 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSYNR2525M15-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 27 | S (mm): 32 | Hand: Right | Insert: SNGN1507 | Clamp & clamp screw: UH1 | Shim: SHSN5A | Shim screw: FM512 | Wrench: LW4
CSYNL2525M15-A7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 27 | S (mm): 32 | Hand: Left | Insert: SNGN1507 | Clamp & clamp screw: UH1 | Shim: SHSN5A | Shim screw: FM512 | Wrench: LW4
CSYNR2525M15-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 27 | S (mm): 32 | Hand: Right | Insert: SNGX1507 | Clamp & clamp screw: UH5 | Shim: SHSN5A | Shim screw: FM512 | Wrench: LW4
CSYNL2525M15-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 27 | S (mm): 32 | Hand: Left | Insert: SNGX1507 | Clamp & clamp screw: UH5 | Shim: SHSN5A | Shim screw: FM512 | Wrench: LW4
CSYNR3225P12-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 27 | S (mm): 32 | Hand: Right | Insert: SNGN1207 | Clamp & clamp screw: UH1 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSYNL3225P12-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 27 | S (mm): 32 | Hand: Left | Insert: SNGN1207 | Clamp & clamp screw: UH1 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSYNR3225P12-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 27 | S (mm): 32 | Hand: Right | Insert: SNGX1207 | Clamp & clamp screw: UH5 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSYNL3225P12-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 27 | S (mm): 32 | Hand: Left | Insert: SNGX1207 | Clamp & clamp screw: UH5 | Shim: SHSN4A | Shim screw: BM510 | Wrench: LW4
CSYNR3225P15-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 27 | S (mm): 32 | Hand: Right | Insert: SNGN1507 | Clamp & clamp screw: UH1 | Shim: SHSN5A | Shim screw: FM512 | Wrench: LW4
CSYNL3225P15-A7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 27 | S (mm): 32 | Hand: Left | Insert: SNGN1507 | Clamp & clamp screw: UH1 | Shim: SHSN5A | Shim screw: FM512 | Wrench: LW4
CSYNR3225P15-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 27 | S (mm): 32 | Hand: Right | Insert: SNGX1507 | Clamp & clamp screw: UH5 | Shim: SHSN5A | Shim screw: FM512 | Wrench: LW4
CSYNL3225P15-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 27 | S (mm): 32 | Hand: Left | Insert: SNGX1507 | Clamp & clamp screw: UH5 | Shim: SHSN5A | Shim screw: FM512 | Wrench: LW4
Turning HoldersKorloy
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Insert Turning Holder CSYN

Brand Korloy·Turning Holders

Available part numbers (18)

CSYNR2525M12-A4, CSYNL2525M12-A4, CSYNR2525M12-A7, CSYNL2525M12-A7, CSYNR2525M12-X7, CSYNL2525M12-X7, CSYNR2525M15-A7, CSYNL2525M15-A7, CSYNR2525M15-X7, CSYNL2525M15-X7 + 8 more — see full table ↓
