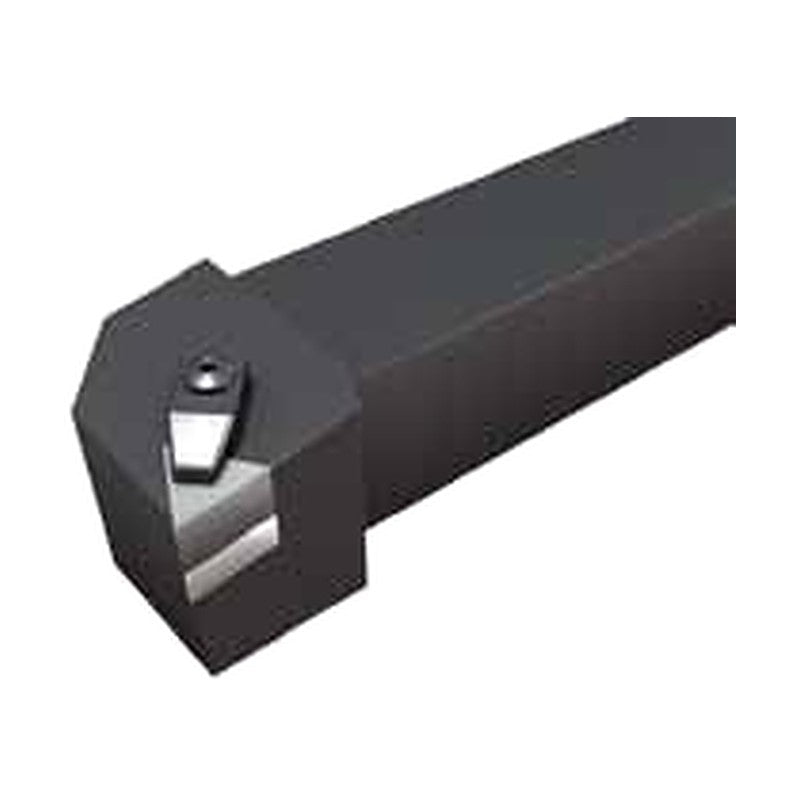

Korloy Ceramic Insert Turning Holder CTGN

External turning toolholder with top clamp and shim for TNGN ceramic inserts, 91° angle.

Key features

Shank sizes: 2525, 3225
Fits inserts: TNGN1604, TNGN1607, TNGN2204, TNGN2207

Specifications

Holder type	External toolholder
Approach angle (drawing)	91°

CTGNR2525M16-A4		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Right \| Insert: TNGN1604 \| Clamp & clamp screw: UH1 \| Shim: SHTN3A \| Shim screw: BM408 \| Wrench: LW4
CTGNL2525M16-A4		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Left \| Insert: TNGN1604 \| Clamp & clamp screw: UH1 \| Shim: SHTN3A \| Shim screw: BM408 \| Wrench: LW4
CTGNR2525M16-A7		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Right \| Insert: TNGN1607 \| Clamp & clamp screw: UH1 \| Shim: SHTN3A \| Shim screw: BM408 \| Wrench: LW4
CTGNL2525M16-A7		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Left \| Insert: TNGN1607 \| Clamp & clamp screw: UH1 \| Shim: SHTN3A \| Shim screw: BM408 \| Wrench: LW4
CTGNR2525M22-A4		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Right \| Insert: TNGN2204 \| Clamp & clamp screw: UH1 \| Shim: SHTN4 \| Shim screw: FM410 \| Wrench: LW4
CTGNL2525M22-A4		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Left \| Insert: TNGN2204 \| Clamp & clamp screw: UH1 \| Shim: SHTN4 \| Shim screw: FM410 \| Wrench: LW4
CTGNR2525M22-A7		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Right \| Insert: TNGN2207 \| Clamp & clamp screw: UH1 \| Shim: SHTN4 \| Shim screw: FM410 \| Wrench: LW4
CTGNL2525M22-A7		H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Left \| Insert: TNGN2207 \| Clamp & clamp screw: UH1 \| Shim: SHTN4 \| Shim screw: FM410 \| Wrench: LW4
CTGNR3225P16-A4		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Right \| Insert: TNGN1604 \| Clamp & clamp screw: UH1 \| Shim: SHTN3A \| Shim screw: BM408 \| Wrench: LW4
CTGNL3225P16-A4		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Left \| Insert: TNGN1604 \| Clamp & clamp screw: UH1 \| Shim: SHTN3A \| Shim screw: BM408 \| Wrench: LW4
CTGNR3225P16-A7		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Right \| Insert: TNGN1607 \| Clamp & clamp screw: UH1 \| Shim: SHTN3A \| Shim screw: BM408 \| Wrench: LW4
CTGNL3225P16-A7		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Left \| Insert: TNGN1607 \| Clamp & clamp screw: UH1 \| Shim: SHTN3A \| Shim screw: BM408 \| Wrench: LW4
CTGNR3225P22-A4		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Right \| Insert: TNGN2204 \| Clamp & clamp screw: UH1 \| Shim: SHTN4 \| Shim screw: FM410 \| Wrench: LW4
CTGNL3225P22-A4		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Left \| Insert: TNGN2204 \| Clamp & clamp screw: UH1 \| Shim: SHTN4 \| Shim screw: FM410 \| Wrench: LW4
CTGNR3225P22-A7		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Right \| Insert: TNGN2207 \| Clamp & clamp screw: UH1 \| Shim: SHTN4 \| Shim screw: FM410 \| Wrench: LW4
CTGNL3225P22-A7		H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Left \| Insert: TNGN2207 \| Clamp & clamp screw: UH1 \| Shim: SHTN4 \| Shim screw: FM410 \| Wrench: LW4

Turning HoldersKorloy

16 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Insert Turning Holder CTGN

Brand Korloy·Turning Holders

Available part numbers (16)

CTGNR2525M16-A4, CTGNL2525M16-A4, CTGNR2525M16-A7, CTGNL2525M16-A7, CTGNR2525M22-A4, CTGNL2525M22-A4, CTGNR2525M22-A7, CTGNL2525M22-A7, CTGNR3225P16-A4, CTGNL3225P16-A4 + 6 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CTGNR2525M16-A4	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Right \| Insert: TNGN1604 \| Clamp & clamp screw: UH1 \| Shim: SHTN3A \| Shim screw: BM408 \| Wrench: LW4
	CTGNL2525M16-A4	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Left \| Insert: TNGN1604 \| Clamp & clamp screw: UH1 \| Shim: SHTN3A \| Shim screw: BM408 \| Wrench: LW4
	CTGNR2525M16-A7	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Right \| Insert: TNGN1607 \| Clamp & clamp screw: UH1 \| Shim: SHTN3A \| Shim screw: BM408 \| Wrench: LW4
	CTGNL2525M16-A7	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Left \| Insert: TNGN1607 \| Clamp & clamp screw: UH1 \| Shim: SHTN3A \| Shim screw: BM408 \| Wrench: LW4
	CTGNR2525M22-A4	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Right \| Insert: TNGN2204 \| Clamp & clamp screw: UH1 \| Shim: SHTN4 \| Shim screw: FM410 \| Wrench: LW4
	CTGNL2525M22-A4	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Left \| Insert: TNGN2204 \| Clamp & clamp screw: UH1 \| Shim: SHTN4 \| Shim screw: FM410 \| Wrench: LW4
	CTGNR2525M22-A7	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Right \| Insert: TNGN2207 \| Clamp & clamp screw: UH1 \| Shim: SHTN4 \| Shim screw: FM410 \| Wrench: LW4
	CTGNL2525M22-A7	H (mm): 25 \| W (mm): 25 \| L (mm): 150 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Left \| Insert: TNGN2207 \| Clamp & clamp screw: UH1 \| Shim: SHTN4 \| Shim screw: FM410 \| Wrench: LW4
	CTGNR3225P16-A4	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Right \| Insert: TNGN1604 \| Clamp & clamp screw: UH1 \| Shim: SHTN3A \| Shim screw: BM408 \| Wrench: LW4
	CTGNL3225P16-A4	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Left \| Insert: TNGN1604 \| Clamp & clamp screw: UH1 \| Shim: SHTN3A \| Shim screw: BM408 \| Wrench: LW4
	CTGNR3225P16-A7	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Right \| Insert: TNGN1607 \| Clamp & clamp screw: UH1 \| Shim: SHTN3A \| Shim screw: BM408 \| Wrench: LW4
	CTGNL3225P16-A7	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Left \| Insert: TNGN1607 \| Clamp & clamp screw: UH1 \| Shim: SHTN3A \| Shim screw: BM408 \| Wrench: LW4
	CTGNR3225P22-A4	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Right \| Insert: TNGN2204 \| Clamp & clamp screw: UH1 \| Shim: SHTN4 \| Shim screw: FM410 \| Wrench: LW4
	CTGNL3225P22-A4	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Left \| Insert: TNGN2204 \| Clamp & clamp screw: UH1 \| Shim: SHTN4 \| Shim screw: FM410 \| Wrench: LW4
	CTGNR3225P22-A7	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Right \| Insert: TNGN2207 \| Clamp & clamp screw: UH1 \| Shim: SHTN4 \| Shim screw: FM410 \| Wrench: LW4
	CTGNL3225P22-A7	H (mm): 32 \| W (mm): 25 \| L (mm): 170 \| l1 (mm): 26 \| S (mm): 32 \| Hand: Left \| Insert: TNGN2207 \| Clamp & clamp screw: UH1 \| Shim: SHTN4 \| Shim screw: FM410 \| Wrench: LW4

Need a different model, or a part not listed here? Send us your parts list →
