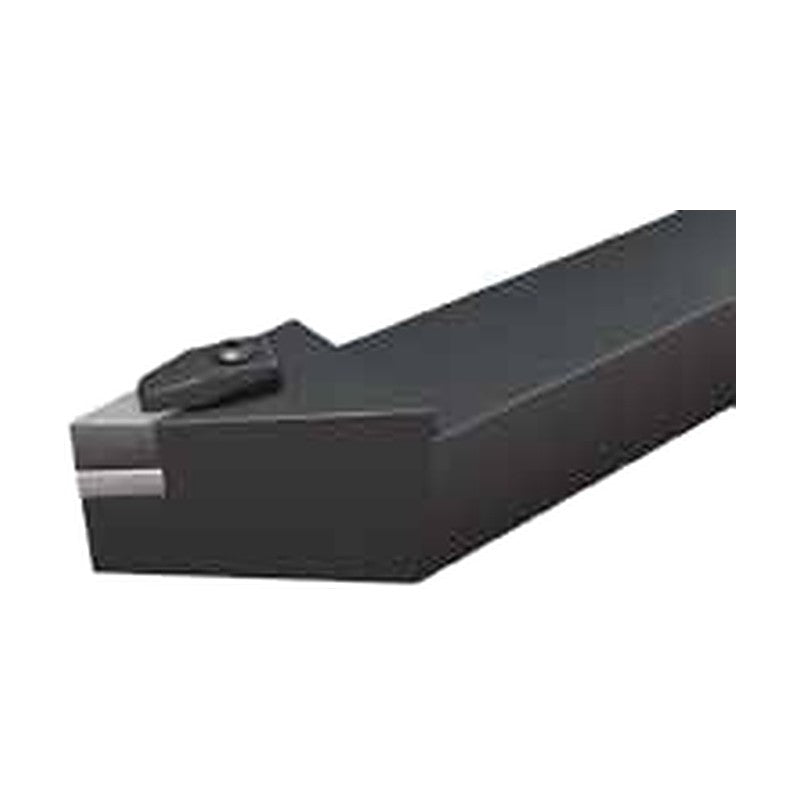

Korloy Ceramic Insert Turning Holder CVJN

Korloy Ceramic Insert Turning Holder CVJN

External turning toolholder with top clamp and shim for VNGN, VNGX ceramic inserts, 95° angle.

Key features

  • Shank sizes: 2525, 3225
  • Fits inserts: VNGN1604, VNGX1607

Specifications

Holder type External toolholder
Approach angle (drawing) 95°
CVJNR2525M16-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 41 | S (mm): 32 | Hand: Right | Insert: VNGN1604 | Clamp & clamp screw: SM4 | Shim: SHVN3A | Shim screw: TM412 | Wrench: LW4
CVJNL2525M16-A4 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 41 | S (mm): 32 | Hand: Left | Insert: VNGN1604 | Clamp & clamp screw: SM4 | Shim: SHVN3A | Shim screw: TM412 | Wrench: LW4
CVJNR2525M16-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 41 | S (mm): 32 | Hand: Right | Insert: VNGX1607 | Clamp & clamp screw: SM4 | Shim: SHVN3A | Shim screw: TM412 | Wrench: LW4
CVJNL2525M16-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 41 | S (mm): 32 | Hand: Left | Insert: VNGX1607 | Clamp & clamp screw: SM4 | Shim: SHVN3A | Shim screw: TM412 | Wrench: LW4
CVJNR3225P16-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 41 | S (mm): 32 | Hand: Right | Insert: VNGX1607 | Clamp & clamp screw: SM4 | Shim: SHVN3A | Shim screw: TM412 | Wrench: LW4
CVJNL3225P16-X7 H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 41 | S (mm): 32 | Hand: Left | Insert: VNGX1607 | Clamp & clamp screw: SM4 | Shim: SHVN3A | Shim screw: TM412 | Wrench: LW4
Turning HoldersKorloy
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Insert Turning Holder CVJN

Brand Korloy·Turning Holders

Available part numbers (6)

CVJNR2525M16-A4, CVJNL2525M16-A4, CVJNR2525M16-X7, CVJNL2525M16-X7, CVJNR3225P16-X7, CVJNL3225P16-X7

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CVJNR2525M16-A4H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 41 | S (mm): 32 | Hand: Right | Insert: VNGN1604 | Clamp & clamp screw: SM4 | Shim: SHVN3A | Shim screw: TM412 | Wrench: LW4
CVJNL2525M16-A4H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 41 | S (mm): 32 | Hand: Left | Insert: VNGN1604 | Clamp & clamp screw: SM4 | Shim: SHVN3A | Shim screw: TM412 | Wrench: LW4
CVJNR2525M16-X7H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 41 | S (mm): 32 | Hand: Right | Insert: VNGX1607 | Clamp & clamp screw: SM4 | Shim: SHVN3A | Shim screw: TM412 | Wrench: LW4
CVJNL2525M16-X7H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 41 | S (mm): 32 | Hand: Left | Insert: VNGX1607 | Clamp & clamp screw: SM4 | Shim: SHVN3A | Shim screw: TM412 | Wrench: LW4
CVJNR3225P16-X7H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 41 | S (mm): 32 | Hand: Right | Insert: VNGX1607 | Clamp & clamp screw: SM4 | Shim: SHVN3A | Shim screw: TM412 | Wrench: LW4
CVJNL3225P16-X7H (mm): 32 | W (mm): 25 | L (mm): 170 | l1 (mm): 41 | S (mm): 32 | Hand: Left | Insert: VNGX1607 | Clamp & clamp screw: SM4 | Shim: SHVN3A | Shim screw: TM412 | Wrench: LW4
