• Korloy Ceramic Insert Turning Holder CWLN
1 1

Korloy Ceramic Insert Turning Holder CWLN

Korloy Ceramic Insert Turning Holder CWLN

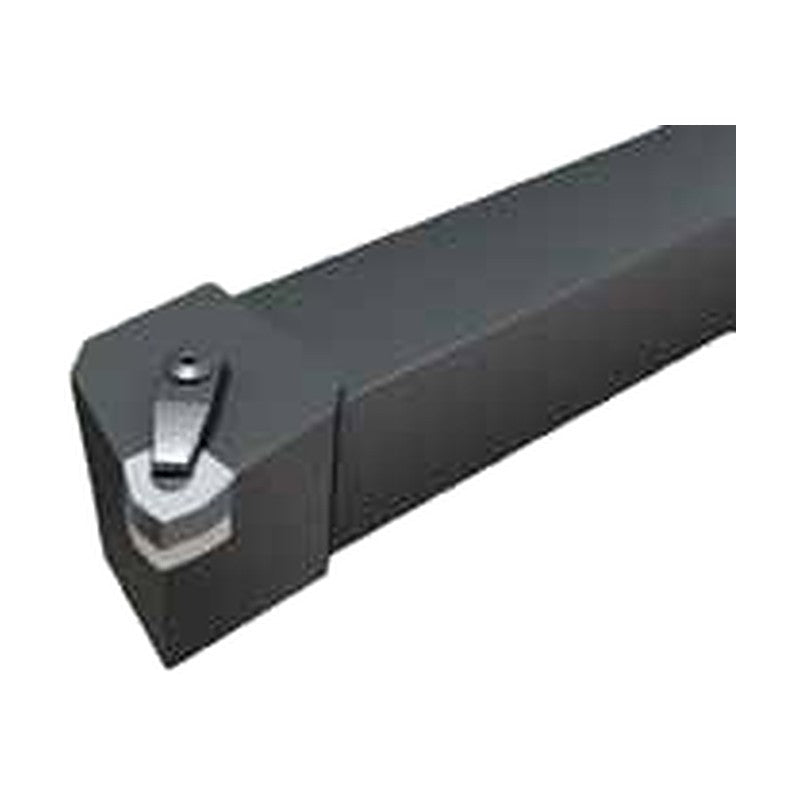

External turning toolholder with top clamp and shim for WNGX ceramic inserts, 95° angle.

Key features

  • Shank sizes: 2525, 3225
  • Fits inserts: WNGX0807

Specifications

Holder type External toolholder
Approach angle (drawing) 95°
CWLNR2525M08-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 28 | S (mm): 32 | Hand: Right | Insert: WNGX0807 | Clamp & clamp screw: UH5 | Shim: SHWN4A | Shim screw: TM4010 | Wrench: LW4
CWLNL2525M08-X7 H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 28 | S (mm): 32 | Hand: Left | Insert: WNGX0807 | Clamp & clamp screw: UH5 | Shim: SHWN4A | Shim screw: TM4010 | Wrench: LW4
CWLNR3225M08-X7 H (mm): 32 | W (mm): 25 | L (mm): 150 | l1 (mm): 28 | S (mm): 32 | Hand: Right | Insert: WNGX0807 | Clamp & clamp screw: UH5 | Shim: SHWN4A | Shim screw: TM4010 | Wrench: LW4
CWLNL3225M08-X7 H (mm): 32 | W (mm): 25 | L (mm): 150 | l1 (mm): 28 | S (mm): 32 | Hand: Left | Insert: WNGX0807 | Clamp & clamp screw: UH5 | Shim: SHWN4A | Shim screw: TM4010 | Wrench: LW4
Turning HoldersKorloy
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Insert Turning Holder CWLN

Brand Korloy·Turning Holders

Available part numbers (4)

CWLNR2525M08-X7, CWLNL2525M08-X7, CWLNR3225M08-X7, CWLNL3225M08-X7

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CWLNR2525M08-X7H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 28 | S (mm): 32 | Hand: Right | Insert: WNGX0807 | Clamp & clamp screw: UH5 | Shim: SHWN4A | Shim screw: TM4010 | Wrench: LW4
CWLNL2525M08-X7H (mm): 25 | W (mm): 25 | L (mm): 150 | l1 (mm): 28 | S (mm): 32 | Hand: Left | Insert: WNGX0807 | Clamp & clamp screw: UH5 | Shim: SHWN4A | Shim screw: TM4010 | Wrench: LW4
CWLNR3225M08-X7H (mm): 32 | W (mm): 25 | L (mm): 150 | l1 (mm): 28 | S (mm): 32 | Hand: Right | Insert: WNGX0807 | Clamp & clamp screw: UH5 | Shim: SHWN4A | Shim screw: TM4010 | Wrench: LW4
CWLNL3225M08-X7H (mm): 32 | W (mm): 25 | L (mm): 150 | l1 (mm): 28 | S (mm): 32 | Hand: Left | Insert: WNGX0807 | Clamp & clamp screw: UH5 | Shim: SHWN4A | Shim screw: TM4010 | Wrench: LW4
