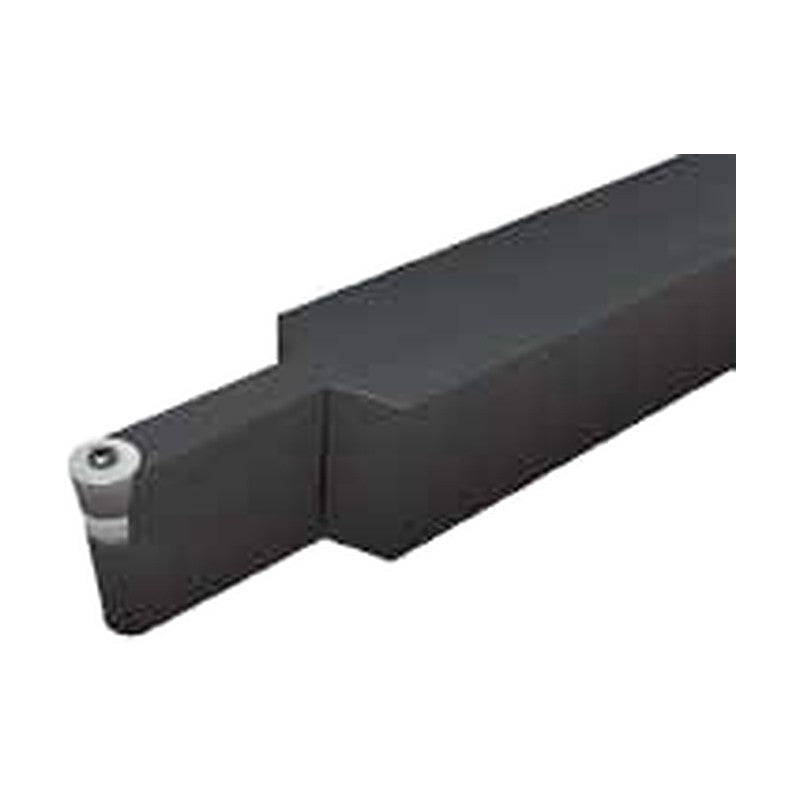

Korloy Ceramic Insert Turning Holder HRCD

Korloy Ceramic Insert Turning Holder HRCD

External turning toolholder with top clamp and shim for CDH ceramic inserts.

Key features

  • Shank sizes: 2525, 3225, 4035, 5050
  • Fits inserts: CDH1206, CDH1909, CDH3219

Specifications

Holder type External toolholder
HRCD2525M12-B6 H (mm): 25 | W (mm): 25 | L (mm): 150 | S (mm): 15 | Insert: CDH1206 | Clamp & clamp screw: HB 2 | Shim: SHCD22 | Wrench: LW2.5
HRCD2525M19-B9 H (mm): 25 | W (mm): 25 | L (mm): 150 | S (mm): 15 | Insert: CDH1909 | Clamp & clamp screw: HB 3 | Shim: SHCD33 | Wrench: LW5
HRCD3225R19-B9 H (mm): 32 | W (mm): 25 | L (mm): 200 | S (mm): 38 | Insert: CDH1909 | Clamp & clamp screw: HB 3 | Shim: SHCD33 | Wrench: LW5
HRCD4035S19-B9 H (mm): 40 | W (mm): 35 | L (mm): 250 | S (mm): 45 | Insert: CDH1909 | Clamp & clamp screw: HB 3 | Shim: SHCD33 | Wrench: LW5
HRCD4035S32-B19 H (mm): 40 | W (mm): 35 | L (mm): 250 | S (mm): 45 | Insert: CDH3219 | Clamp & clamp screw: HB 5 | Shim: SHCD53 | Wrench: LW6
HRCD5050T32-B19 H (mm): 50 | W (mm): 50 | L (mm): 300 | S (mm): 50 | Insert: CDH3219 | Clamp & clamp screw: HB 5 | Shim: SHCD53 | Wrench: LW6
Turning HoldersKorloy
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Insert Turning Holder HRCD

Brand Korloy·Turning Holders

Available part numbers (6)

HRCD2525M12-B6, HRCD2525M19-B9, HRCD3225R19-B9, HRCD4035S19-B9, HRCD4035S32-B19, HRCD5050T32-B19

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRCD2525M12-B6H (mm): 25 | W (mm): 25 | L (mm): 150 | S (mm): 15 | Insert: CDH1206 | Clamp & clamp screw: HB 2 | Shim: SHCD22 | Wrench: LW2.5
HRCD2525M19-B9H (mm): 25 | W (mm): 25 | L (mm): 150 | S (mm): 15 | Insert: CDH1909 | Clamp & clamp screw: HB 3 | Shim: SHCD33 | Wrench: LW5
HRCD3225R19-B9H (mm): 32 | W (mm): 25 | L (mm): 200 | S (mm): 38 | Insert: CDH1909 | Clamp & clamp screw: HB 3 | Shim: SHCD33 | Wrench: LW5
HRCD4035S19-B9H (mm): 40 | W (mm): 35 | L (mm): 250 | S (mm): 45 | Insert: CDH1909 | Clamp & clamp screw: HB 3 | Shim: SHCD33 | Wrench: LW5
HRCD4035S32-B19H (mm): 40 | W (mm): 35 | L (mm): 250 | S (mm): 45 | Insert: CDH3219 | Clamp & clamp screw: HB 5 | Shim: SHCD53 | Wrench: LW6
HRCD5050T32-B19H (mm): 50 | W (mm): 50 | L (mm): 300 | S (mm): 50 | Insert: CDH3219 | Clamp & clamp screw: HB 5 | Shim: SHCD53 | Wrench: LW6
