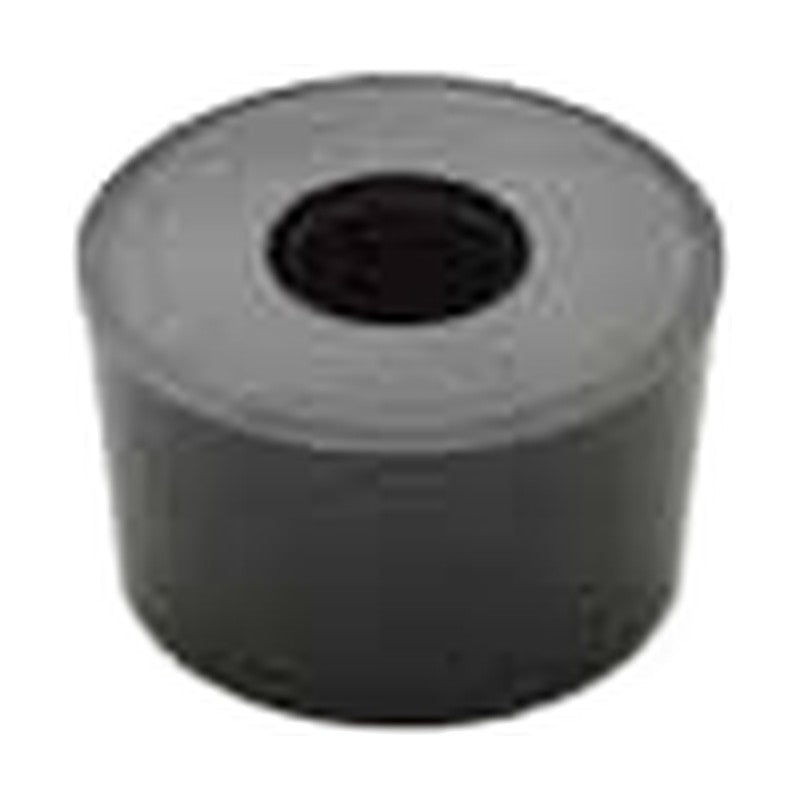

Korloy Ceramic Roll Turning Insert CDH

Korloy Ceramic Roll Turning Insert CDH

Ceramic roll-turning insert CDH, for hardened steel and cast iron.

Key features

  • Grades offered: CAT10, CAT30, CAT50, CAT90, CA20, CSN20, CSN30
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel
  • Si3N4 grades for roughing and high-speed machining of cast iron

Specifications

Material class Ceramic
Units mm
CDH120600 CAT10 ASA: CDH 22 | D (mm): 12.70 | S (mm): 6.35 | D1 (mm): 3.18 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CDH120600 CAT30 ASA: CDH 22 | D (mm): 12.70 | S (mm): 6.35 | D1 (mm): 3.18 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CDH120600 CAT50 ASA: CDH 22 | D (mm): 12.70 | S (mm): 6.35 | D1 (mm): 3.18 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
CDH120900 CAT10 ASA: CDH 23 | D (mm): 12.70 | S (mm): 9.52 | D1 (mm): 3.18 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CDH190900 CAT10 ASA: CDH 33 | D (mm): 19.05 | S (mm): 9.52 | D1 (mm): 6.35 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CDH190900 CAT30 ASA: CDH 33 | D (mm): 19.05 | S (mm): 9.52 | D1 (mm): 6.35 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CDH190900 CAT50 ASA: CDH 33 | D (mm): 19.05 | S (mm): 9.52 | D1 (mm): 6.35 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
CDH190900 CAT90 ASA: CDH 33 | D (mm): 19.05 | S (mm): 9.52 | D1 (mm): 6.35 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
CDH190900 CSN20 ASA: CDH 33 | D (mm): 19.05 | S (mm): 9.52 | D1 (mm): 6.35 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CDH191200 CAT10 ASA: CDH 34 | D (mm): 19.05 | S (mm): 12.70 | D1 (mm): 6.35 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CDH251200 CAT10 ASA: CDH 42 | D (mm): 25.40 | S (mm): 12.70 | D1 (mm): 6.75 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CDH251200 CAT30 ASA: CDH 42 | D (mm): 25.40 | S (mm): 12.70 | D1 (mm): 6.75 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CDH251200 CAT50 ASA: CDH 42 | D (mm): 25.40 | S (mm): 12.70 | D1 (mm): 6.75 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
CDH251200 CA20 ASA: CDH 42 | D (mm): 25.40 | S (mm): 12.70 | D1 (mm): 6.75 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
CDH251200 CSN20 ASA: CDH 42 | D (mm): 25.40 | S (mm): 12.70 | D1 (mm): 6.75 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CDH251900 CAT10 ASA: CDH 43 | D (mm): 25.40 | S (mm): 19.05 | D1 (mm): 6.75 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CDH251900 CA20 ASA: CDH 43 | D (mm): 25.40 | S (mm): 19.05 | D1 (mm): 6.75 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
CDH251900 CSN20 ASA: CDH 43 | D (mm): 25.40 | S (mm): 19.05 | D1 (mm): 6.75 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CDH320900 CAT10 ASA: CDH 515 | D (mm): 31.75 | S (mm): 9.52 | D1 (mm): 10.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CDH320900 CAT30 ASA: CDH 515 | D (mm): 31.75 | S (mm): 9.52 | D1 (mm): 10.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CDH320900 CA20 ASA: CDH 515 | D (mm): 31.75 | S (mm): 9.52 | D1 (mm): 10.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
CDH320900 CSN20 ASA: CDH 515 | D (mm): 31.75 | S (mm): 9.52 | D1 (mm): 10.00 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CDH320900 CSN30 ASA: CDH 515 | D (mm): 31.75 | S (mm): 9.52 | D1 (mm): 10.00 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CDH321900 CAT10 ASA: CDH 53 | D (mm): 31.75 | S (mm): 19.05 | D1 (mm): 10.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CDH321900 CAT30 ASA: CDH 53 | D (mm): 31.75 | S (mm): 19.05 | D1 (mm): 10.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CDH321900 CAT50 ASA: CDH 53 | D (mm): 31.75 | S (mm): 19.05 | D1 (mm): 10.00 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
CDH321900 CA20 ASA: CDH 53 | D (mm): 31.75 | S (mm): 19.05 | D1 (mm): 10.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
CDH321900 CSN20 ASA: CDH 53 | D (mm): 31.75 | S (mm): 19.05 | D1 (mm): 10.00 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CDH321900 CSN30 ASA: CDH 53 | D (mm): 31.75 | S (mm): 19.05 | D1 (mm): 10.00 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CDH381100 CAT10 D (mm): 38.10 | S (mm): 11.11 | D1 (mm): 9.93 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
Turning InsertsKorloy
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Roll Turning Insert CDH

Brand Korloy·Turning Inserts

Available part numbers (30)

CDH120600 CAT10, CDH120600 CAT30, CDH120600 CAT50, CDH120900 CAT10, CDH190900 CAT10, CDH190900 CAT30, CDH190900 CAT50, CDH190900 CAT90, CDH190900 CSN20, CDH191200 CAT10 + 20 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CDH120600 CAT10ASA: CDH 22 | D (mm): 12.70 | S (mm): 6.35 | D1 (mm): 3.18 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CDH120600 CAT30ASA: CDH 22 | D (mm): 12.70 | S (mm): 6.35 | D1 (mm): 3.18 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CDH120600 CAT50ASA: CDH 22 | D (mm): 12.70 | S (mm): 6.35 | D1 (mm): 3.18 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
CDH120900 CAT10ASA: CDH 23 | D (mm): 12.70 | S (mm): 9.52 | D1 (mm): 3.18 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CDH190900 CAT10ASA: CDH 33 | D (mm): 19.05 | S (mm): 9.52 | D1 (mm): 6.35 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CDH190900 CAT30ASA: CDH 33 | D (mm): 19.05 | S (mm): 9.52 | D1 (mm): 6.35 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CDH190900 CAT50ASA: CDH 33 | D (mm): 19.05 | S (mm): 9.52 | D1 (mm): 6.35 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
CDH190900 CAT90ASA: CDH 33 | D (mm): 19.05 | S (mm): 9.52 | D1 (mm): 6.35 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
CDH190900 CSN20ASA: CDH 33 | D (mm): 19.05 | S (mm): 9.52 | D1 (mm): 6.35 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CDH191200 CAT10ASA: CDH 34 | D (mm): 19.05 | S (mm): 12.70 | D1 (mm): 6.35 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CDH251200 CAT10ASA: CDH 42 | D (mm): 25.40 | S (mm): 12.70 | D1 (mm): 6.75 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CDH251200 CAT30ASA: CDH 42 | D (mm): 25.40 | S (mm): 12.70 | D1 (mm): 6.75 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CDH251200 CAT50ASA: CDH 42 | D (mm): 25.40 | S (mm): 12.70 | D1 (mm): 6.75 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
CDH251200 CA20ASA: CDH 42 | D (mm): 25.40 | S (mm): 12.70 | D1 (mm): 6.75 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
CDH251200 CSN20ASA: CDH 42 | D (mm): 25.40 | S (mm): 12.70 | D1 (mm): 6.75 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CDH251900 CAT10ASA: CDH 43 | D (mm): 25.40 | S (mm): 19.05 | D1 (mm): 6.75 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CDH251900 CA20ASA: CDH 43 | D (mm): 25.40 | S (mm): 19.05 | D1 (mm): 6.75 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
CDH251900 CSN20ASA: CDH 43 | D (mm): 25.40 | S (mm): 19.05 | D1 (mm): 6.75 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CDH320900 CAT10ASA: CDH 515 | D (mm): 31.75 | S (mm): 9.52 | D1 (mm): 10.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CDH320900 CAT30ASA: CDH 515 | D (mm): 31.75 | S (mm): 9.52 | D1 (mm): 10.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CDH320900 CA20ASA: CDH 515 | D (mm): 31.75 | S (mm): 9.52 | D1 (mm): 10.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
CDH320900 CSN20ASA: CDH 515 | D (mm): 31.75 | S (mm): 9.52 | D1 (mm): 10.00 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CDH320900 CSN30ASA: CDH 515 | D (mm): 31.75 | S (mm): 9.52 | D1 (mm): 10.00 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CDH321900 CAT10ASA: CDH 53 | D (mm): 31.75 | S (mm): 19.05 | D1 (mm): 10.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CDH321900 CAT30ASA: CDH 53 | D (mm): 31.75 | S (mm): 19.05 | D1 (mm): 10.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CDH321900 CAT50ASA: CDH 53 | D (mm): 31.75 | S (mm): 19.05 | D1 (mm): 10.00 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
CDH321900 CA20ASA: CDH 53 | D (mm): 31.75 | S (mm): 19.05 | D1 (mm): 10.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
CDH321900 CSN20ASA: CDH 53 | D (mm): 31.75 | S (mm): 19.05 | D1 (mm): 10.00 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CDH321900 CSN30ASA: CDH 53 | D (mm): 31.75 | S (mm): 19.05 | D1 (mm): 10.00 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CDH381100 CAT10D (mm): 38.10 | S (mm): 11.11 | D1 (mm): 9.93 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
