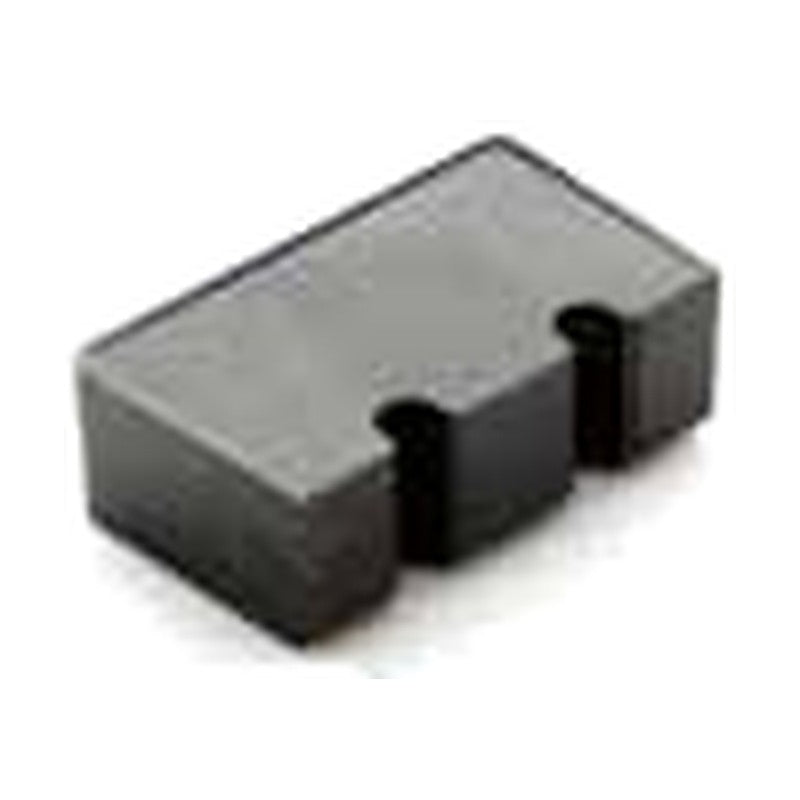

Korloy Ceramic Roll Turning Insert F-Series (F10537V)

Korloy Ceramic Roll Turning Insert F-Series (F10537V)

Ceramic roll-turning insert F-Series (F10537V), for hardened steel and cast iron.

Key features

  • Grades offered: CAT10, CAT20, CA20
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel

Specifications

Material class Ceramic
Units mm
F10537V CAT10 L (mm): 44.00 | W (mm): 26.00 | S (mm): 15.00 | D1 (mm): 5.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
F10537V CAT20 L (mm): 44.00 | W (mm): 26.00 | S (mm): 15.00 | D1 (mm): 5.00 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
F10537V CA20 L (mm): 44.00 | W (mm): 26.00 | S (mm): 15.00 | D1 (mm): 5.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
Turning InsertsKorloy
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Roll Turning Insert F-Series (F10537V)

Brand Korloy·Turning Inserts

Available part numbers (3)

F10537V CAT10, F10537V CAT20, F10537V CA20

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
F10537V CAT10L (mm): 44.00 | W (mm): 26.00 | S (mm): 15.00 | D1 (mm): 5.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
F10537V CAT20L (mm): 44.00 | W (mm): 26.00 | S (mm): 15.00 | D1 (mm): 5.00 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
F10537V CA20L (mm): 44.00 | W (mm): 26.00 | S (mm): 15.00 | D1 (mm): 5.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
