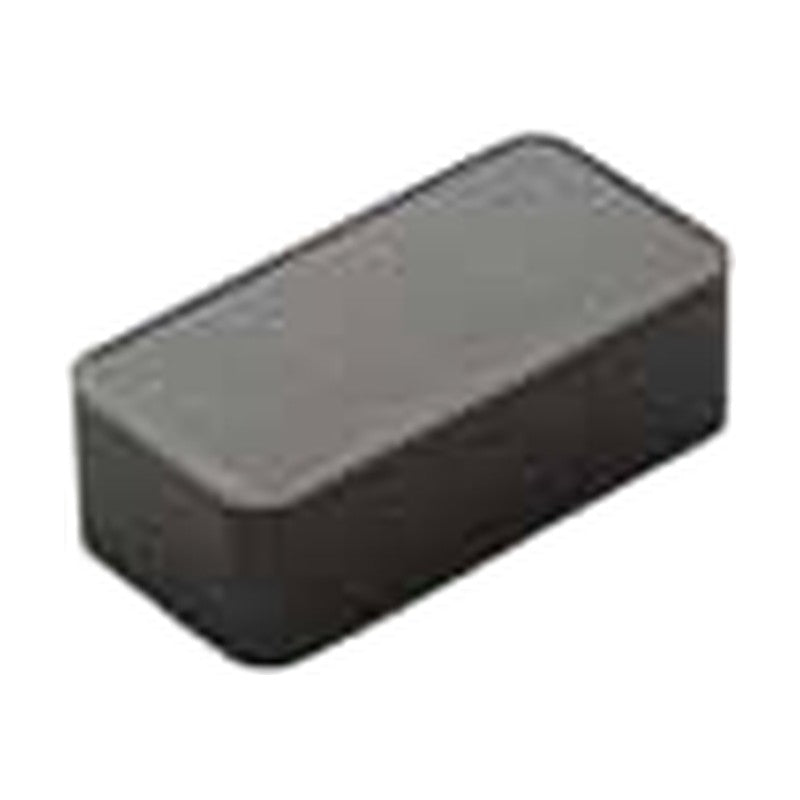

Korloy Ceramic Roll Turning Insert LNJ

Korloy Ceramic Roll Turning Insert LNJ

Ceramic roll-turning insert LNJ, for hardened steel, cast iron and heat-resistant alloys.

Key features

  • Grades offered: CAT10, CAT30, CAT50, CAT90, CA20, CSN20, CSN30, CSN80, CW40
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys
  • SiC whisker-reinforced grades for nickel- and cobalt-based alloys

Specifications

Material class Ceramic
Units mm
LNJ5464 CAT10 L (mm): 25.40 | W (mm): 15.87 | S (mm): 9.52 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
LNJ5464 CAT30 L (mm): 25.40 | W (mm): 15.87 | S (mm): 9.52 | RE (mm): 1.6 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
LNJ5568 CSN20 L (mm): 31.75 | W (mm): 15.87 | S (mm): 9.52 | RE (mm): 3.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
LNJ6588 CAT10 L (mm): 31.75 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
LNJ6588 CAT30 L (mm): 31.75 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
LNJ6588 CAT50 L (mm): 31.75 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
LNJ6588 CAT90 L (mm): 31.75 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
LNJ6588 CA20 L (mm): 31.75 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
LNJ6588 CSN20 L (mm): 31.75 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
LNJ6588 CSN30 L (mm): 31.75 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
LNJ6688 CAT10 L (mm): 38.10 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
LNJ6688 CAT30 L (mm): 38.10 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
LNJ6688 CAT50 L (mm): 38.10 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
LNJ6688 CAT90 L (mm): 38.10 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
LNJ6688 CA20 L (mm): 38.10 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
LNJ6688 CSN20 L (mm): 38.10 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
LNJ6688 CSN30 L (mm): 38.10 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
LNJ6688 CSN80 L (mm): 38.10 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
LNJ6688 CW40 L (mm): 38.10 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
LNJ6898 CSN20 L (mm): 48.10 | W (mm): 21.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
Turning InsertsKorloy
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Roll Turning Insert LNJ

Brand Korloy·Turning Inserts

Available part numbers (20)

LNJ5464 CAT10, LNJ5464 CAT30, LNJ5568 CSN20, LNJ6588 CAT10, LNJ6588 CAT30, LNJ6588 CAT50, LNJ6588 CAT90, LNJ6588 CA20, LNJ6588 CSN20, LNJ6588 CSN30 + 10 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LNJ5464 CAT10L (mm): 25.40 | W (mm): 15.87 | S (mm): 9.52 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
LNJ5464 CAT30L (mm): 25.40 | W (mm): 15.87 | S (mm): 9.52 | RE (mm): 1.6 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
LNJ5568 CSN20L (mm): 31.75 | W (mm): 15.87 | S (mm): 9.52 | RE (mm): 3.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
LNJ6588 CAT10L (mm): 31.75 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
LNJ6588 CAT30L (mm): 31.75 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
LNJ6588 CAT50L (mm): 31.75 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
LNJ6588 CAT90L (mm): 31.75 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
LNJ6588 CA20L (mm): 31.75 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
LNJ6588 CSN20L (mm): 31.75 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
LNJ6588 CSN30L (mm): 31.75 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
LNJ6688 CAT10L (mm): 38.10 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
LNJ6688 CAT30L (mm): 38.10 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
LNJ6688 CAT50L (mm): 38.10 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
LNJ6688 CAT90L (mm): 38.10 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
LNJ6688 CA20L (mm): 38.10 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
LNJ6688 CSN20L (mm): 38.10 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
LNJ6688 CSN30L (mm): 38.10 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
LNJ6688 CSN80L (mm): 38.10 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
LNJ6688 CW40L (mm): 38.10 | W (mm): 19.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
LNJ6898 CSN20L (mm): 48.10 | W (mm): 21.05 | S (mm): 12.70 | RE (mm): 3.2 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
