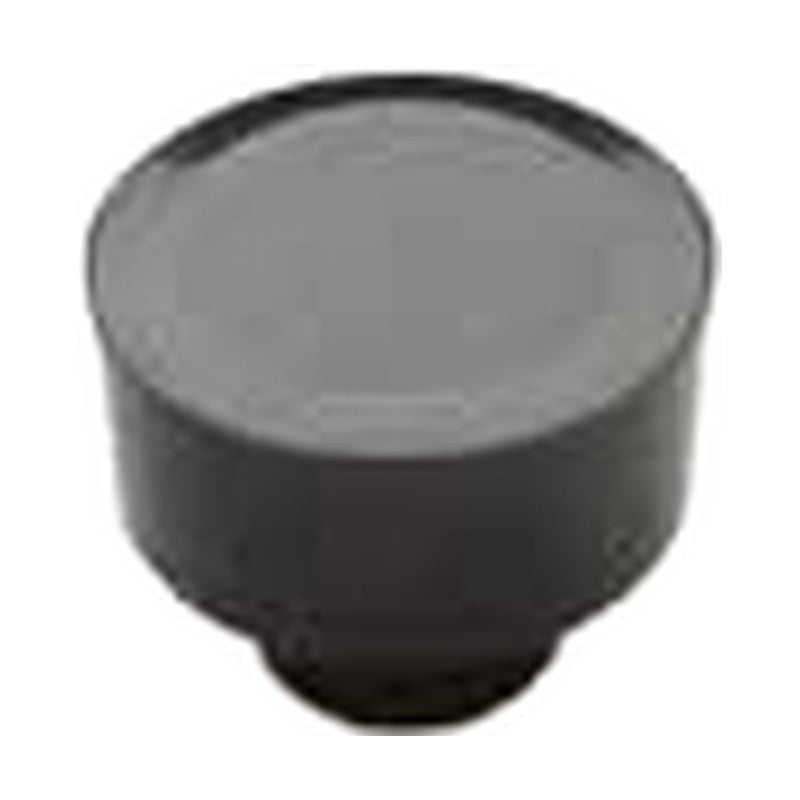

Korloy Ceramic Roll Turning Insert RBGX

Korloy Ceramic Roll Turning Insert RBGX

Ceramic roll-turning insert RBGX, for hardened steel, cast iron and heat-resistant alloys.

Key features

  • Grades offered: CAT10, CAT30, CAT50, CAT90, CA20, CSN20, CSN30, CSN80, CW40
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys
  • SiC whisker-reinforced grades for nickel- and cobalt-based alloys

Specifications

Material class Ceramic
Units mm
RBGX06T CAT10 D (mm): 6.00 | S (mm): 5.00 | T (mm): 3.00 | a (mm): 3.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RBGX06T CAT30 D (mm): 6.00 | S (mm): 5.00 | T (mm): 3.00 | a (mm): 3.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RBGX08T CSN20 D (mm): 8.00 | S (mm): 6.50 | T (mm): 4.00 | a (mm): 4.00 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RBGX10T CAT10 D (mm): 10.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RBGX10T CAT30 D (mm): 10.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RBGX10T CAT50 D (mm): 10.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RBGX10T CAT90 D (mm): 10.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
RBGX10T CA20 D (mm): 10.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
RBGX10T CSN20 D (mm): 10.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RBGX10T CSN30 D (mm): 10.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
RBGX12T CAT10 D (mm): 12.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RBGX12T CAT30 D (mm): 12.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RBGX12T CAT50 D (mm): 12.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RBGX12T CAT90 D (mm): 12.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
RBGX12T CA20 D (mm): 12.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
RBGX12T CSN20 D (mm): 12.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RBGX12T CSN30 D (mm): 12.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
RBGX12T CSN80 D (mm): 12.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RBGX12T CW40 D (mm): 12.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
RBGX26T CSN20 D (mm): 26.00 | S (mm): 15.00 | T (mm): 10.00 | a (mm): 14.00 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
Turning InsertsKorloy
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Roll Turning Insert RBGX

Brand Korloy·Turning Inserts

Available part numbers (20)

RBGX06T CAT10, RBGX06T CAT30, RBGX08T CSN20, RBGX10T CAT10, RBGX10T CAT30, RBGX10T CAT50, RBGX10T CAT90, RBGX10T CA20, RBGX10T CSN20, RBGX10T CSN30 + 10 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RBGX06T CAT10D (mm): 6.00 | S (mm): 5.00 | T (mm): 3.00 | a (mm): 3.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RBGX06T CAT30D (mm): 6.00 | S (mm): 5.00 | T (mm): 3.00 | a (mm): 3.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RBGX08T CSN20D (mm): 8.00 | S (mm): 6.50 | T (mm): 4.00 | a (mm): 4.00 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RBGX10T CAT10D (mm): 10.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RBGX10T CAT30D (mm): 10.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RBGX10T CAT50D (mm): 10.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RBGX10T CAT90D (mm): 10.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
RBGX10T CA20D (mm): 10.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
RBGX10T CSN20D (mm): 10.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RBGX10T CSN30D (mm): 10.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
RBGX12T CAT10D (mm): 12.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
RBGX12T CAT30D (mm): 12.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
RBGX12T CAT50D (mm): 12.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
RBGX12T CAT90D (mm): 12.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
RBGX12T CA20D (mm): 12.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
RBGX12T CSN20D (mm): 12.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
RBGX12T CSN30D (mm): 12.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
RBGX12T CSN80D (mm): 12.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
RBGX12T CW40D (mm): 12.00 | S (mm): 9.00 | T (mm): 6.00 | a (mm): 6.00 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
RBGX26T CSN20D (mm): 26.00 | S (mm): 15.00 | T (mm): 10.00 | a (mm): 14.00 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
