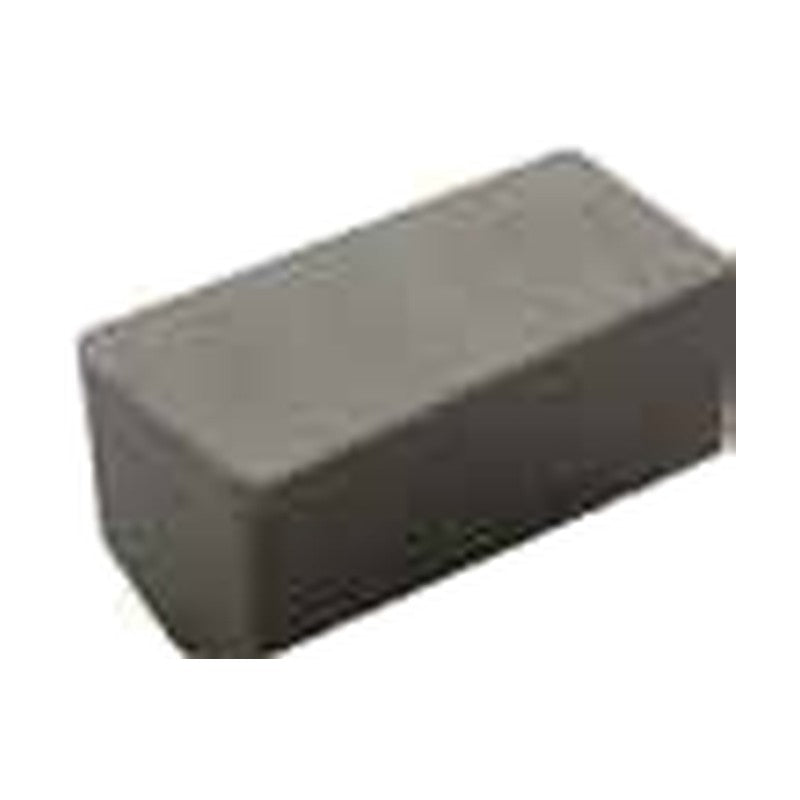

Korloy Ceramic Roll Turning Insert SGF

Korloy Ceramic Roll Turning Insert SGF

Ceramic roll-turning insert SGF, for hardened steel and cast iron.

Key features

  • Grades offered: CAT10, CAT30, CSN20
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Si3N4 grades for roughing and high-speed machining of cast iron

Specifications

Material class Ceramic
Units mm
SGF4012 CAT10 L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | RE (mm): 0.50 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGF4012 CAT30 L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | RE (mm): 0.50 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGF4012 CSN20 L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | RE (mm): 0.50 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SGF5012 CAT10 L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGF5012 CAT30 L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGF5012 CSN20 L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | RE (mm): 0.80 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SGF6015 CAT10 L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGF6015 CAT30 L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGF6015 CSN20 L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SGF7015 CAT10 L (mm): 15.00 | W (mm): 7.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGF7015 CAT30 L (mm): 15.00 | W (mm): 7.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGF8015 CAT10 L (mm): 15.00 | W (mm): 8.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGF8015 CAT30 L (mm): 15.00 | W (mm): 8.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGF1015 CAT10 L (mm): 15.00 | W (mm): 10.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGF1015 CAT30 L (mm): 15.00 | W (mm): 10.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
Turning InsertsKorloy
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Roll Turning Insert SGF

Brand Korloy·Turning Inserts

Available part numbers (15)

SGF4012 CAT10, SGF4012 CAT30, SGF4012 CSN20, SGF5012 CAT10, SGF5012 CAT30, SGF5012 CSN20, SGF6015 CAT10, SGF6015 CAT30, SGF6015 CSN20, SGF7015 CAT10 + 5 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SGF4012 CAT10L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | RE (mm): 0.50 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGF4012 CAT30L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | RE (mm): 0.50 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGF4012 CSN20L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | RE (mm): 0.50 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SGF5012 CAT10L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGF5012 CAT30L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGF5012 CSN20L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | RE (mm): 0.80 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SGF6015 CAT10L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGF6015 CAT30L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGF6015 CSN20L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SGF7015 CAT10L (mm): 15.00 | W (mm): 7.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGF7015 CAT30L (mm): 15.00 | W (mm): 7.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGF8015 CAT10L (mm): 15.00 | W (mm): 8.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGF8015 CAT30L (mm): 15.00 | W (mm): 8.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGF1015 CAT10L (mm): 15.00 | W (mm): 10.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGF1015 CAT30L (mm): 15.00 | W (mm): 10.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
