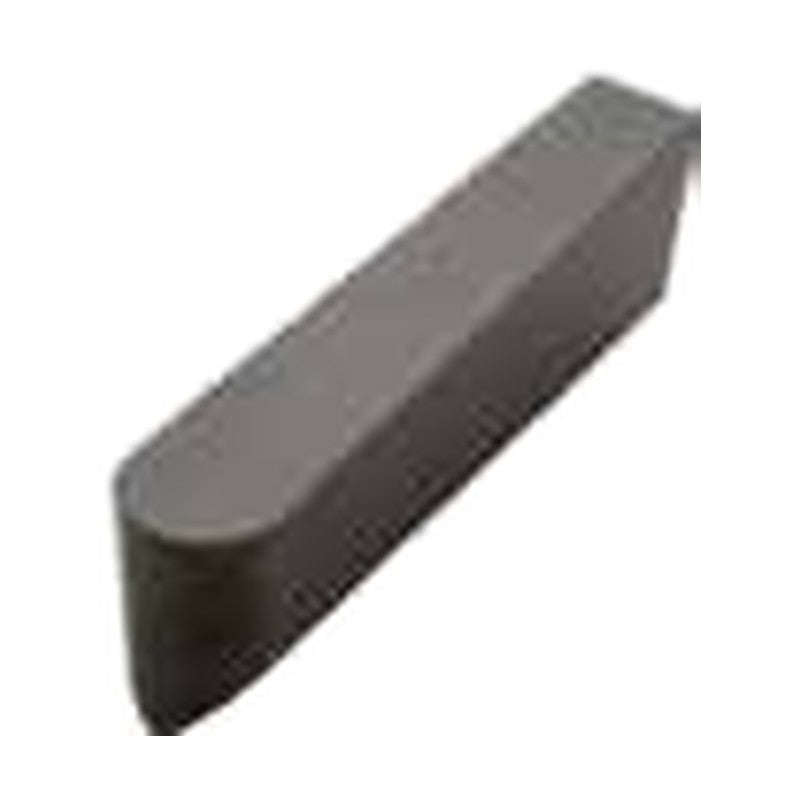

Korloy Ceramic Roll Turning Insert SGR

Korloy Ceramic Roll Turning Insert SGR

Ceramic roll-turning insert SGR, for hardened steel and cast iron.

Key features

  • Grades offered: CAT10, CAT30, CA20, CSN40, CSN40C
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel
  • Si3N4 grades for roughing and high-speed machining of cast iron

Specifications

Material class Ceramic
Units mm
SGR4012 CAT10 L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGR4012 CAT30 L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGR4012 CA20 L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SGR4012 CSN40 L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SGR4012 CSN40C L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | Grade: CSN40C | Material: Si3N4, AlTiN/TiN coated | Stock: Yes (from material)
SGR5012 CAT10 L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGR5012 CAT30 L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGR5012 CA20 L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SGR5012 CSN40 L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SGR5012 CSN40C L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | Grade: CSN40C | Material: Si3N4, AlTiN/TiN coated | Stock: Yes (from material)
SGR6015 CAT10 L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGR6015 CAT30 L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGR6015 CA20 L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SGR7015 CAT10 L (mm): 15.00 | W (mm): 7.00 | S (mm): 7.50 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGR7015 CAT30 L (mm): 15.00 | W (mm): 7.00 | S (mm): 7.50 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGR7015 CA20 L (mm): 15.00 | W (mm): 7.00 | S (mm): 7.50 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SGR8015 CAT10 L (mm): 15.00 | W (mm): 8.00 | S (mm): 7.50 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGR8015 CAT30 L (mm): 15.00 | W (mm): 8.00 | S (mm): 7.50 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGR8015 CA20 L (mm): 15.00 | W (mm): 8.00 | S (mm): 7.50 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SGR1015 CAT10 L (mm): 15.00 | W (mm): 10.00 | S (mm): 7.50 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGR1015 CAT30 L (mm): 15.00 | W (mm): 10.00 | S (mm): 7.50 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGR1015 CA20 L (mm): 15.00 | W (mm): 10.00 | S (mm): 7.50 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
Turning InsertsKorloy
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Roll Turning Insert SGR

Brand Korloy·Turning Inserts

Available part numbers (22)

SGR4012 CAT10, SGR4012 CAT30, SGR4012 CA20, SGR4012 CSN40, SGR4012 CSN40C, SGR5012 CAT10, SGR5012 CAT30, SGR5012 CA20, SGR5012 CSN40, SGR5012 CSN40C + 12 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SGR4012 CAT10L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGR4012 CAT30L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGR4012 CA20L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SGR4012 CSN40L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SGR4012 CSN40CL (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | Grade: CSN40C | Material: Si3N4, AlTiN/TiN coated | Stock: Yes (from material)
SGR5012 CAT10L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGR5012 CAT30L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGR5012 CA20L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SGR5012 CSN40L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SGR5012 CSN40CL (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | Grade: CSN40C | Material: Si3N4, AlTiN/TiN coated | Stock: Yes (from material)
SGR6015 CAT10L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGR6015 CAT30L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGR6015 CA20L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SGR7015 CAT10L (mm): 15.00 | W (mm): 7.00 | S (mm): 7.50 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGR7015 CAT30L (mm): 15.00 | W (mm): 7.00 | S (mm): 7.50 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGR7015 CA20L (mm): 15.00 | W (mm): 7.00 | S (mm): 7.50 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SGR8015 CAT10L (mm): 15.00 | W (mm): 8.00 | S (mm): 7.50 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGR8015 CAT30L (mm): 15.00 | W (mm): 8.00 | S (mm): 7.50 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGR8015 CA20L (mm): 15.00 | W (mm): 8.00 | S (mm): 7.50 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SGR1015 CAT10L (mm): 15.00 | W (mm): 10.00 | S (mm): 7.50 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SGR1015 CAT30L (mm): 15.00 | W (mm): 10.00 | S (mm): 7.50 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SGR1015 CA20L (mm): 15.00 | W (mm): 10.00 | S (mm): 7.50 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
