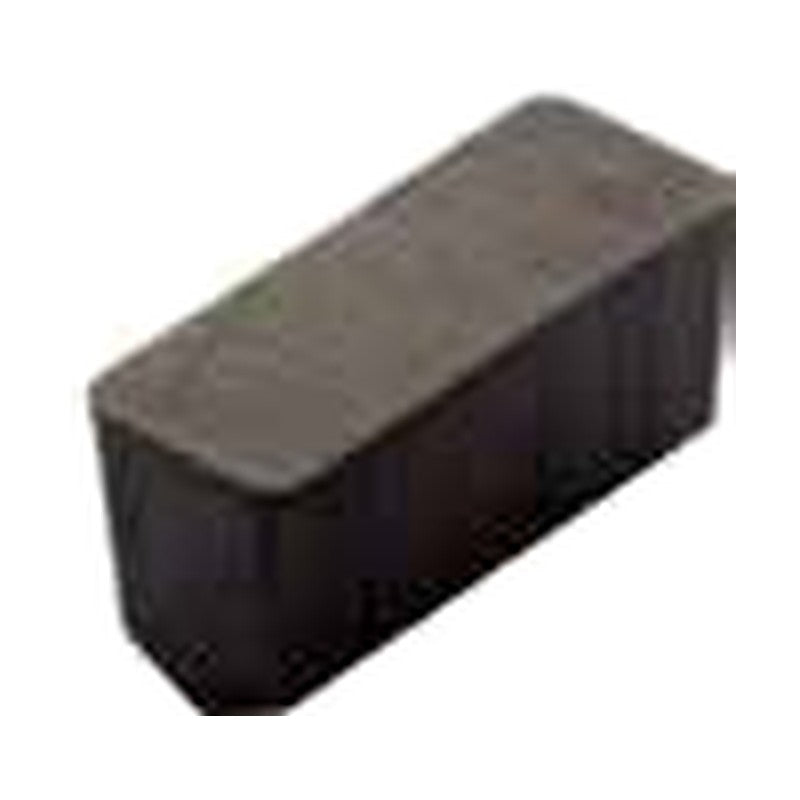

Korloy Ceramic Roll Turning Insert SSF

Korloy Ceramic Roll Turning Insert SSF

Ceramic roll-turning insert SSF, for hardened steel and cast iron.

Key features

  • Grades offered: CAT10, CAT30, CSN20
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Si3N4 grades for roughing and high-speed machining of cast iron

Specifications

Material class Ceramic
Units mm
SSF4012 CAT10 L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSF4012 CAT30 L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSF4012 CSN20 L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | RE (mm): 0.80 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SSF5012 CAT10 L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSF5012 CAT30 L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSF5012 CSN20 L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | RE (mm): 0.80 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SSF6015 CAT10 L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSF6015 CAT30 L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSF6015 CSN20 L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SSF7015 CAT10 L (mm): 15.00 | W (mm): 7.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSF7015 CAT30 L (mm): 15.00 | W (mm): 7.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSF8015 CAT10 L (mm): 15.00 | W (mm): 8.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSF8015 CAT30 L (mm): 15.00 | W (mm): 8.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSF1015 CAT10 L (mm): 15.00 | W (mm): 10.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSF1015 CAT30 L (mm): 15.00 | W (mm): 10.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
Turning InsertsKorloy
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Roll Turning Insert SSF

Brand Korloy·Turning Inserts

Available part numbers (15)

SSF4012 CAT10, SSF4012 CAT30, SSF4012 CSN20, SSF5012 CAT10, SSF5012 CAT30, SSF5012 CSN20, SSF6015 CAT10, SSF6015 CAT30, SSF6015 CSN20, SSF7015 CAT10 + 5 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSF4012 CAT10L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSF4012 CAT30L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSF4012 CSN20L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | RE (mm): 0.80 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SSF5012 CAT10L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSF5012 CAT30L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSF5012 CSN20L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | RE (mm): 0.80 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SSF6015 CAT10L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSF6015 CAT30L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSF6015 CSN20L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
SSF7015 CAT10L (mm): 15.00 | W (mm): 7.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSF7015 CAT30L (mm): 15.00 | W (mm): 7.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSF8015 CAT10L (mm): 15.00 | W (mm): 8.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSF8015 CAT30L (mm): 15.00 | W (mm): 8.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSF1015 CAT10L (mm): 15.00 | W (mm): 10.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSF1015 CAT30L (mm): 15.00 | W (mm): 10.00 | S (mm): 7.50 | RE (mm): 0.80 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
