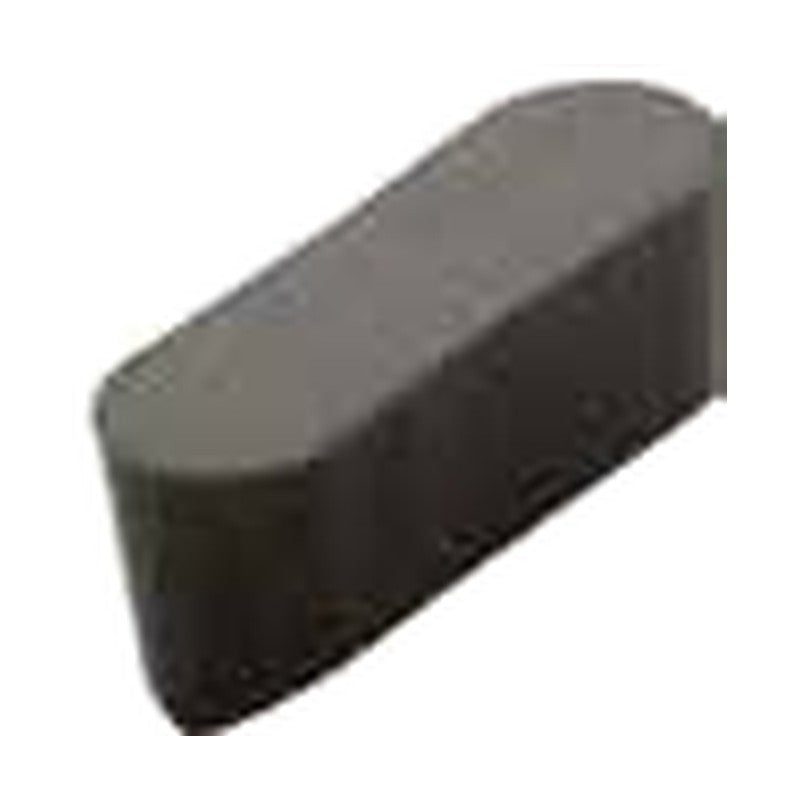

Korloy Ceramic Roll Turning Insert SSR

Korloy Ceramic Roll Turning Insert SSR

Ceramic roll-turning insert SSR, for hardened steel and cast iron.

Key features

  • Grades offered: CAT10, CAT30, CA20, CSN40, CSN40C
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel
  • Si3N4 grades for roughing and high-speed machining of cast iron

Specifications

Material class Ceramic
Units mm
SSR4012 CAT10 L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSR4012 CAT30 L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSR4012 CA20 L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SSR4012 CSN40 L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SSR4012 CSN40C L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | Grade: CSN40C | Material: Si3N4, AlTiN/TiN coated | Stock: Yes (from material)
SSR5012 CAT10 L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSR5012 CAT30 L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSR5012 CA20 L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SSR5012 CSN40 L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SSR5012 CSN40C L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | Grade: CSN40C | Material: Si3N4, AlTiN/TiN coated | Stock: Yes (from material)
SSR6015 CAT10 L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSR6015 CAT30 L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSR6015 CA20 L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SSR7015 CAT10 L (mm): 15.00 | W (mm): 7.00 | S (mm): 7.50 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSR7015 CAT30 L (mm): 15.00 | W (mm): 7.00 | S (mm): 7.50 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSR7015 CA20 L (mm): 15.00 | W (mm): 7.00 | S (mm): 7.50 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SSR8015 CAT10 L (mm): 15.00 | W (mm): 8.00 | S (mm): 7.50 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSR8015 CAT30 L (mm): 15.00 | W (mm): 8.00 | S (mm): 7.50 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSR8015 CA20 L (mm): 15.00 | W (mm): 8.00 | S (mm): 7.50 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SSR1015 CAT10 L (mm): 15.00 | W (mm): 10.00 | S (mm): 7.50 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSR1015 CAT30 L (mm): 15.00 | W (mm): 10.00 | S (mm): 7.50 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSR1015 CA20 L (mm): 15.00 | W (mm): 10.00 | S (mm): 7.50 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
Turning InsertsKorloy
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Roll Turning Insert SSR

Brand Korloy·Turning Inserts

Available part numbers (22)

SSR4012 CAT10, SSR4012 CAT30, SSR4012 CA20, SSR4012 CSN40, SSR4012 CSN40C, SSR5012 CAT10, SSR5012 CAT30, SSR5012 CA20, SSR5012 CSN40, SSR5012 CSN40C + 12 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSR4012 CAT10L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSR4012 CAT30L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSR4012 CA20L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SSR4012 CSN40L (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SSR4012 CSN40CL (mm): 12.00 | W (mm): 4.00 | S (mm): 5.00 | Grade: CSN40C | Material: Si3N4, AlTiN/TiN coated | Stock: Yes (from material)
SSR5012 CAT10L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSR5012 CAT30L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSR5012 CA20L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SSR5012 CSN40L (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
SSR5012 CSN40CL (mm): 12.00 | W (mm): 5.00 | S (mm): 5.00 | Grade: CSN40C | Material: Si3N4, AlTiN/TiN coated | Stock: Yes (from material)
SSR6015 CAT10L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSR6015 CAT30L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSR6015 CA20L (mm): 15.00 | W (mm): 6.00 | S (mm): 7.50 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SSR7015 CAT10L (mm): 15.00 | W (mm): 7.00 | S (mm): 7.50 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSR7015 CAT30L (mm): 15.00 | W (mm): 7.00 | S (mm): 7.50 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSR7015 CA20L (mm): 15.00 | W (mm): 7.00 | S (mm): 7.50 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SSR8015 CAT10L (mm): 15.00 | W (mm): 8.00 | S (mm): 7.50 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSR8015 CAT30L (mm): 15.00 | W (mm): 8.00 | S (mm): 7.50 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSR8015 CA20L (mm): 15.00 | W (mm): 8.00 | S (mm): 7.50 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
SSR1015 CAT10L (mm): 15.00 | W (mm): 10.00 | S (mm): 7.50 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SSR1015 CAT30L (mm): 15.00 | W (mm): 10.00 | S (mm): 7.50 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SSR1015 CA20L (mm): 15.00 | W (mm): 10.00 | S (mm): 7.50 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
