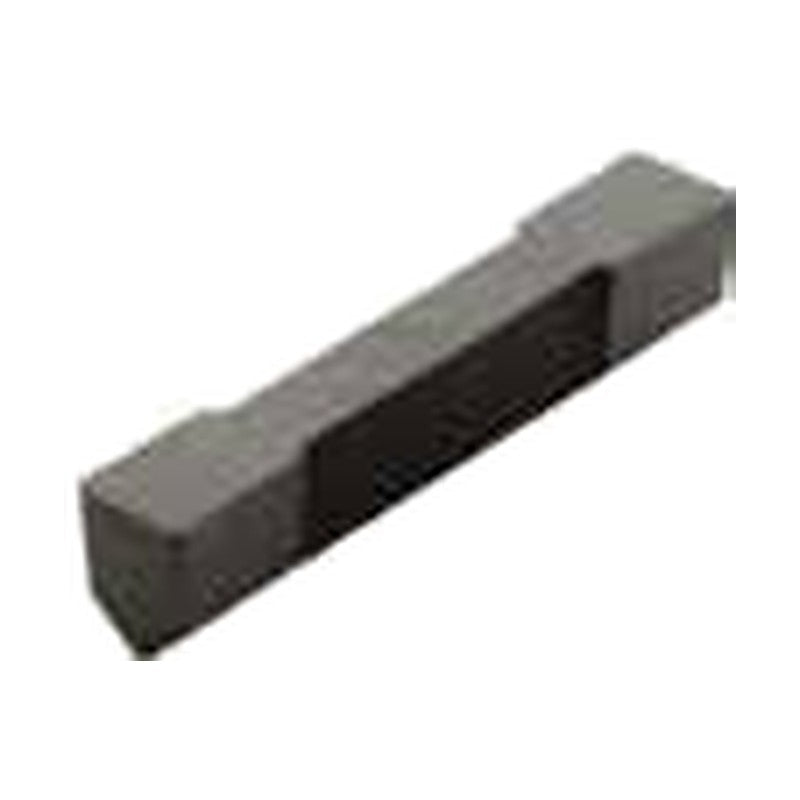

Korloy Ceramic Roll Turning Insert SYBF

Korloy Ceramic Roll Turning Insert SYBF

Ceramic roll-turning insert SYBF, for hardened steel and cast iron.

Key features

  • Grades offered: CAT10, CAT30
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron

Specifications

Material class Ceramic
Units mm
SYBF3228 CAT10 L (mm): 28.58 | W (mm): 3.18 | S (mm): 6.35 | s (mm): 2.69 | Angle: 5.0° | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SYBF3228 CAT30 L (mm): 28.58 | W (mm): 3.18 | S (mm): 6.35 | s (mm): 2.69 | Angle: 5.0° | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SYBF4828 CAT10 L (mm): 28.58 | W (mm): 4.78 | S (mm): 6.35 | s (mm): 3.66 | Angle: 5.0° | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SYBF4828 CAT30 L (mm): 28.58 | W (mm): 4.78 | S (mm): 6.35 | s (mm): 3.66 | Angle: 5.0° | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SYBF6428 CAT10 L (mm): 28.58 | W (mm): 6.35 | S (mm): 8.56 | s (mm): 5.13 | Angle: 7.0° | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SYBF6428 CAT30 L (mm): 28.58 | W (mm): 6.35 | S (mm): 8.56 | s (mm): 5.13 | Angle: 7.0° | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SYBF7928 CAT10 L (mm): 28.58 | W (mm): 7.93 | S (mm): 8.56 | s (mm): 5.13 | Angle: 7.0° | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SYBF7928 CAT30 L (mm): 28.58 | W (mm): 7.93 | S (mm): 8.56 | s (mm): 5.13 | Angle: 7.0° | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
Turning InsertsKorloy
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Roll Turning Insert SYBF

Brand Korloy·Turning Inserts

Available part numbers (8)

SYBF3228 CAT10, SYBF3228 CAT30, SYBF4828 CAT10, SYBF4828 CAT30, SYBF6428 CAT10, SYBF6428 CAT30, SYBF7928 CAT10, SYBF7928 CAT30

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SYBF3228 CAT10L (mm): 28.58 | W (mm): 3.18 | S (mm): 6.35 | s (mm): 2.69 | Angle: 5.0° | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SYBF3228 CAT30L (mm): 28.58 | W (mm): 3.18 | S (mm): 6.35 | s (mm): 2.69 | Angle: 5.0° | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SYBF4828 CAT10L (mm): 28.58 | W (mm): 4.78 | S (mm): 6.35 | s (mm): 3.66 | Angle: 5.0° | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SYBF4828 CAT30L (mm): 28.58 | W (mm): 4.78 | S (mm): 6.35 | s (mm): 3.66 | Angle: 5.0° | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SYBF6428 CAT10L (mm): 28.58 | W (mm): 6.35 | S (mm): 8.56 | s (mm): 5.13 | Angle: 7.0° | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SYBF6428 CAT30L (mm): 28.58 | W (mm): 6.35 | S (mm): 8.56 | s (mm): 5.13 | Angle: 7.0° | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SYBF7928 CAT10L (mm): 28.58 | W (mm): 7.93 | S (mm): 8.56 | s (mm): 5.13 | Angle: 7.0° | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SYBF7928 CAT30L (mm): 28.58 | W (mm): 7.93 | S (mm): 8.56 | s (mm): 5.13 | Angle: 7.0° | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
