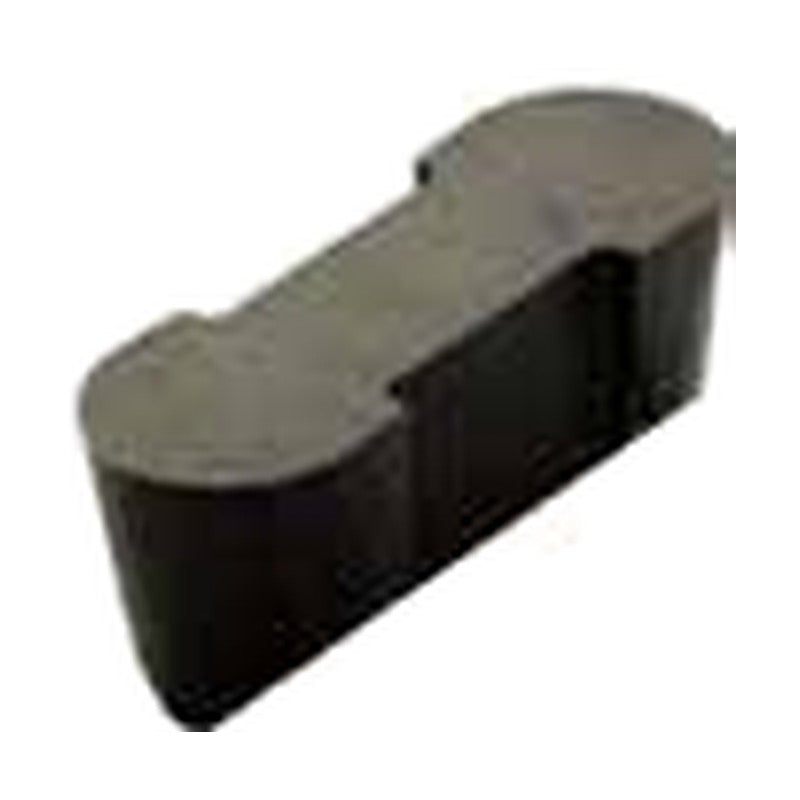

Korloy Ceramic Roll Turning Insert SYBR

Korloy Ceramic Roll Turning Insert SYBR

Ceramic roll-turning insert SYBR, for hardened steel and cast iron.

Key features

  • Grades offered: CAT10, CAT30
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron

Specifications

Material class Ceramic
Units mm
SYBR3228 CAT10 L (mm): 28.58 | W (mm): 3.18 | S (mm): 6.35 | s (mm): 2.69 | Angle: 5.0° | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SYBR3228 CAT30 L (mm): 28.58 | W (mm): 3.18 | S (mm): 6.35 | s (mm): 2.69 | Angle: 5.0° | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SYBR4828 CAT10 L (mm): 28.58 | W (mm): 4.78 | S (mm): 6.35 | s (mm): 3.66 | Angle: 5.0° | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SYBR4828 CAT30 L (mm): 28.58 | W (mm): 4.78 | S (mm): 6.35 | s (mm): 3.66 | Angle: 5.0° | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SYBR6428 CAT10 L (mm): 28.58 | W (mm): 6.35 | S (mm): 8.56 | s (mm): 5.13 | Angle: 7.0° | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SYBR6428 CAT30 L (mm): 28.58 | W (mm): 6.35 | S (mm): 8.56 | s (mm): 5.13 | Angle: 7.0° | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
SYBR7928 CAT10 L (mm): 28.58 | W (mm): 7.93 | S (mm): 8.56 | s (mm): 5.13 | Angle: 7.0° | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
SYBR7928 CAT30 L (mm): 28.58 | W (mm): 7.93 | S (mm): 8.56 | s (mm): 5.13 | Angle: 7.0° | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
Turning InsertsKorloy
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Roll Turning Insert SYBR

Brand Korloy·Turning Inserts

Available part numbers (8)

SYBR3228 CAT10, SYBR3228 CAT30, SYBR4828 CAT10, SYBR4828 CAT30, SYBR6428 CAT10, SYBR6428 CAT30, SYBR7928 CAT10, SYBR7928 CAT30

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
