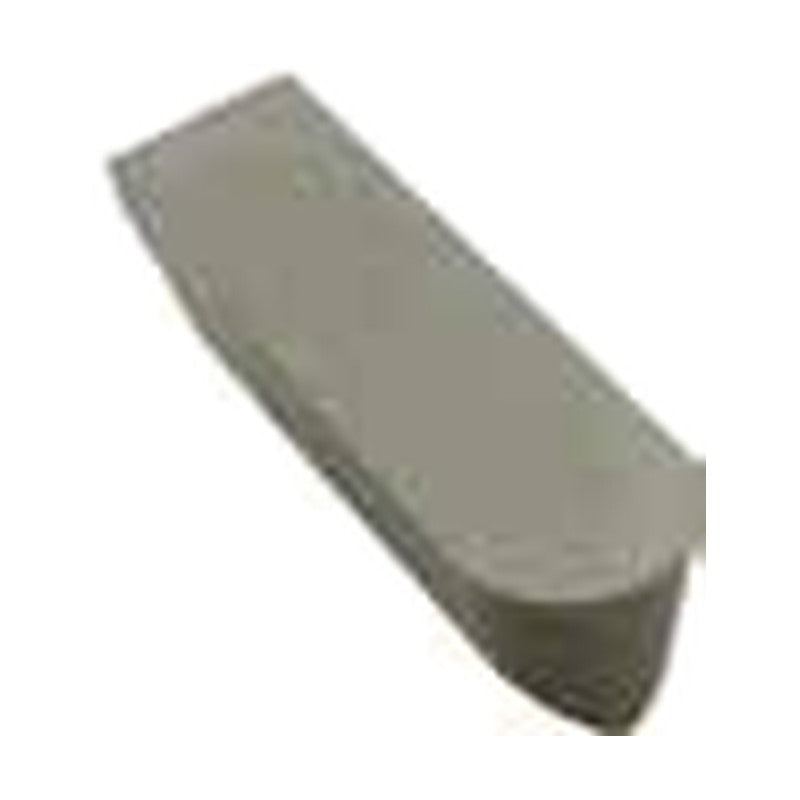

Korloy Ceramic Roll Turning Insert WRP

Korloy Ceramic Roll Turning Insert WRP

Ceramic roll-turning insert WRP, for heat-resistant alloys.

Key features

  • Grades offered: CW40, CW80
  • SiC whisker-reinforced grades for nickel- and cobalt-based alloys

Specifications

Material class Ceramic
Units mm
WRP125050 CW80 L (mm): 12.70 | W (mm): 3.175 | S (mm): 4.75 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP156050 CW80 L (mm): 12.70 | W (mm): 3.962 | S (mm): 4.75 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP187050 CW80 L (mm): 12.70 | W (mm): 4.750 | S (mm): 4.75 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP218075 CW40 L (mm): 19.05 | W (mm): 5.537 | S (mm): 6.35 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP218075 CW80 L (mm): 19.05 | W (mm): 5.537 | S (mm): 6.35 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP250075 CW40 L (mm): 19.05 | W (mm): 6.350 | S (mm): 6.35 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP250075 CW80 L (mm): 19.05 | W (mm): 6.350 | S (mm): 6.35 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP281075 CW40 L (mm): 19.05 | W (mm): 7.137 | S (mm): 6.35 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP281075 CW80 L (mm): 19.05 | W (mm): 7.137 | S (mm): 6.35 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP312100 CW40 L (mm): 25.40 | W (mm): 7.925 | S (mm): 8.56 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP312100 CW80 L (mm): 25.40 | W (mm): 7.925 | S (mm): 8.56 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP375100 CW80 L (mm): 25.40 | W (mm): 9.525 | S (mm): 8.56 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
Turning InsertsKorloy
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Roll Turning Insert WRP

Brand Korloy·Turning Inserts

Available part numbers (12)

WRP125050 CW80, WRP156050 CW80, WRP187050 CW80, WRP218075 CW40, WRP218075 CW80, WRP250075 CW40, WRP250075 CW80, WRP281075 CW40, WRP281075 CW80, WRP312100 CW40 + 2 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WRP125050 CW80L (mm): 12.70 | W (mm): 3.175 | S (mm): 4.75 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP156050 CW80L (mm): 12.70 | W (mm): 3.962 | S (mm): 4.75 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP187050 CW80L (mm): 12.70 | W (mm): 4.750 | S (mm): 4.75 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP218075 CW40L (mm): 19.05 | W (mm): 5.537 | S (mm): 6.35 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP218075 CW80L (mm): 19.05 | W (mm): 5.537 | S (mm): 6.35 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP250075 CW40L (mm): 19.05 | W (mm): 6.350 | S (mm): 6.35 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP250075 CW80L (mm): 19.05 | W (mm): 6.350 | S (mm): 6.35 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP281075 CW40L (mm): 19.05 | W (mm): 7.137 | S (mm): 6.35 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP281075 CW80L (mm): 19.05 | W (mm): 7.137 | S (mm): 6.35 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP312100 CW40L (mm): 25.40 | W (mm): 7.925 | S (mm): 8.56 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP312100 CW80L (mm): 25.40 | W (mm): 7.925 | S (mm): 8.56 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
WRP375100 CW80L (mm): 25.40 | W (mm): 9.525 | S (mm): 8.56 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
