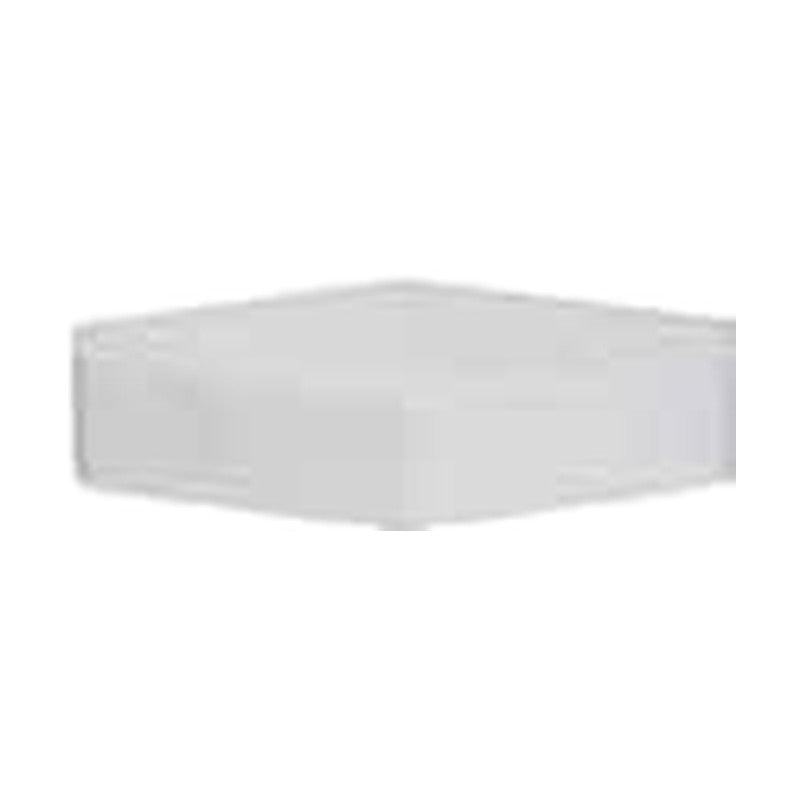

Korloy Ceramic Special Insert GVGN

Korloy Ceramic Special Insert GVGN

Special ceramic insert GVGN, for hardened steel and cast iron.

Key features

  • Grades offered: CA20
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel

Specifications

Material class Ceramic
Units mm
GVGN38320 CA20 L (mm): 32.00 | Angle: 38° | IC (mm): 13.46 | S (mm): 7.94 | W (mm): 3.22 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
GVGN38335 CA20 L (mm): 33.50 | Angle: 38° | IC (mm): 13.28 | S (mm): 8.00 | W (mm): 3.06 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
GVGN36340 CA20 L (mm): 34.00 | Angle: 36° | IC (mm): 13.59 | S (mm): 7.94 | W (mm): 3.25 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
GVGN38360 CA20 L (mm): 36.00 | Angle: 38° | IC (mm): 17.38 | S (mm): 7.94 | W (mm): 5.98 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
GVGN34360 CA20 L (mm): 36.00 | Angle: 34° | IC (mm): 17.42 | S (mm): 7.94 | W (mm): 7.22 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
Ceramic InsertsKorloy
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Special Insert GVGN

Brand Korloy·Ceramic Inserts

Available part numbers (5)

GVGN38320 CA20, GVGN38335 CA20, GVGN36340 CA20, GVGN38360 CA20, GVGN34360 CA20

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GVGN38320 CA20L (mm): 32.00 | Angle: 38° | IC (mm): 13.46 | S (mm): 7.94 | W (mm): 3.22 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
GVGN38335 CA20L (mm): 33.50 | Angle: 38° | IC (mm): 13.28 | S (mm): 8.00 | W (mm): 3.06 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
GVGN36340 CA20L (mm): 34.00 | Angle: 36° | IC (mm): 13.59 | S (mm): 7.94 | W (mm): 3.25 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
GVGN38360 CA20L (mm): 36.00 | Angle: 38° | IC (mm): 17.38 | S (mm): 7.94 | W (mm): 5.98 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
GVGN34360 CA20L (mm): 36.00 | Angle: 34° | IC (mm): 17.42 | S (mm): 7.94 | W (mm): 7.22 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
