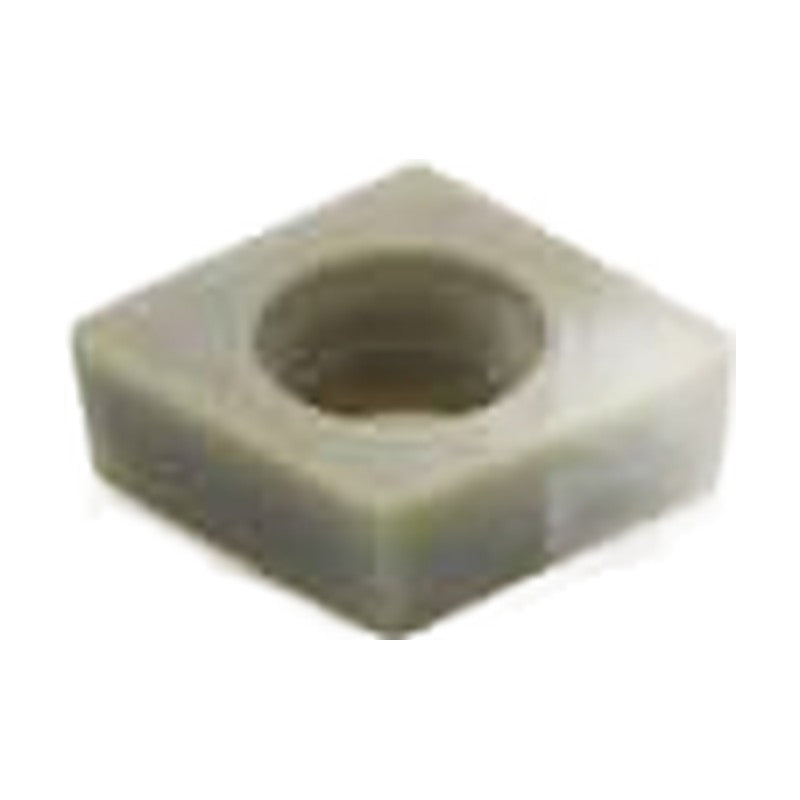

Korloy Ceramic Turning Insert CCGW

Korloy Ceramic Turning Insert CCGW

80° rhombic ceramic turning insert (ISO CCGW), positive 7° clearance, for hardened steel and cast iron.

Key features

  • Grades offered: CAT20, CSN30, CSN40, CSN60
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Si3N4 grades for roughing and high-speed machining of cast iron

Specifications

Material class Ceramic
Units mm
CCGW09T304 CAT20 IC (mm): 9.52 | S (mm): 3.97 | RE (mm): 0.4 | D1 (mm): 4.40 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
CCGW09T304 CSN30 IC (mm): 9.52 | S (mm): 3.97 | RE (mm): 0.4 | D1 (mm): 4.40 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CCGW09T304 CSN40 IC (mm): 9.52 | S (mm): 3.97 | RE (mm): 0.4 | D1 (mm): 4.40 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CCGW09T308 CAT20 IC (mm): 9.52 | S (mm): 3.97 | RE (mm): 0.8 | D1 (mm): 4.40 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
CCGW09T308 CSN30 IC (mm): 9.52 | S (mm): 3.97 | RE (mm): 0.8 | D1 (mm): 4.40 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CCGW09T308 CSN40 IC (mm): 9.52 | S (mm): 3.97 | RE (mm): 0.8 | D1 (mm): 4.40 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CCGW09T308 CSN60 IC (mm): 9.52 | S (mm): 3.97 | RE (mm): 0.8 | D1 (mm): 4.40 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
CCGW09T312 CSN30 IC (mm): 9.52 | S (mm): 3.97 | RE (mm): 1.2 | D1 (mm): 4.40 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CCGW09T312 CSN40 IC (mm): 9.52 | S (mm): 3.97 | RE (mm): 1.2 | D1 (mm): 4.40 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CCGW09T312 CSN60 IC (mm): 9.52 | S (mm): 3.97 | RE (mm): 1.2 | D1 (mm): 4.40 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
CCGW120408 CSN40 IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.50 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CCGW120412 CSN40 IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.50 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
Turning InsertsKorloy
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert CCGW

Brand Korloy·Turning Inserts

Available part numbers (12)

CCGW09T304 CAT20, CCGW09T304 CSN30, CCGW09T304 CSN40, CCGW09T308 CAT20, CCGW09T308 CSN30, CCGW09T308 CSN40, CCGW09T308 CSN60, CCGW09T312 CSN30, CCGW09T312 CSN40, CCGW09T312 CSN60 + 2 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CCGW09T304 CAT20IC (mm): 9.52 | S (mm): 3.97 | RE (mm): 0.4 | D1 (mm): 4.40 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
CCGW09T304 CSN30IC (mm): 9.52 | S (mm): 3.97 | RE (mm): 0.4 | D1 (mm): 4.40 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CCGW09T304 CSN40IC (mm): 9.52 | S (mm): 3.97 | RE (mm): 0.4 | D1 (mm): 4.40 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CCGW09T308 CAT20IC (mm): 9.52 | S (mm): 3.97 | RE (mm): 0.8 | D1 (mm): 4.40 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
CCGW09T308 CSN30IC (mm): 9.52 | S (mm): 3.97 | RE (mm): 0.8 | D1 (mm): 4.40 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CCGW09T308 CSN40IC (mm): 9.52 | S (mm): 3.97 | RE (mm): 0.8 | D1 (mm): 4.40 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CCGW09T308 CSN60IC (mm): 9.52 | S (mm): 3.97 | RE (mm): 0.8 | D1 (mm): 4.40 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
CCGW09T312 CSN30IC (mm): 9.52 | S (mm): 3.97 | RE (mm): 1.2 | D1 (mm): 4.40 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CCGW09T312 CSN40IC (mm): 9.52 | S (mm): 3.97 | RE (mm): 1.2 | D1 (mm): 4.40 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CCGW09T312 CSN60IC (mm): 9.52 | S (mm): 3.97 | RE (mm): 1.2 | D1 (mm): 4.40 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
CCGW120408 CSN40IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.50 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CCGW120412 CSN40IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.50 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
