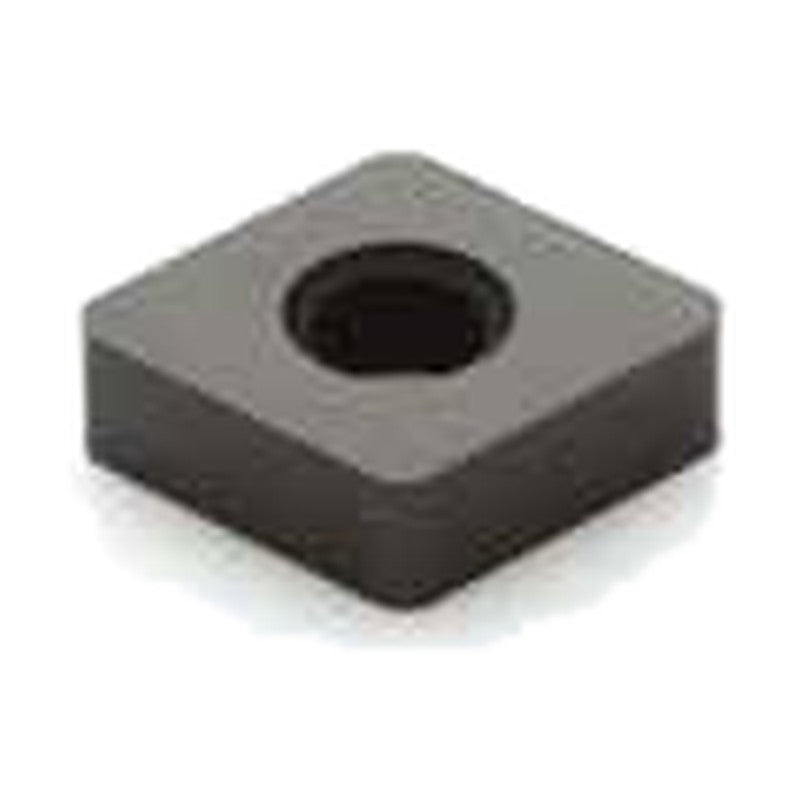

Korloy Ceramic Turning Insert CNGA

Korloy Ceramic Turning Insert CNGA

80° rhombic ceramic turning insert (ISO CNGA), negative (0° clearance), with hole, for hardened steel, cast iron and heat-resistant alloys.

Key features

  • Grades offered: CAT10, CAT20, CAT30, CAT50, CAT90, CAT10C, CAT30C, CA20, CA30, CSN20, CSN30, CSN40, CSN50, CSN60, CSN80, CW40, CW80
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • TiN-coated mixed ceramic grades for finishing hardened steel and cast iron
  • Al2O3+ZrO2 grades for finishing and semi-finishing cast iron and steel
  • Si3N4 grades for roughing and high-speed machining of cast iron
  • SiAlON grades for heat-resistant and nickel-based alloys

Specifications

Material class Ceramic
Units mm
CNGA120404 CAT10 ASA: CNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
CNGA120404 CAT20 ASA: CNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
CNGA120404 CAT30 ASA: CNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
CNGA120404 CAT50 ASA: CNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGA120404 CAT90 ASA: CNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGA120404 CSN20 ASA: CNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CNGA120404 CSN80 ASA: CNGA 431 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.4 | D1 (mm): 5.16 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
CNGA120408 CAT10 ASA: CNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
CNGA120408 CAT20 ASA: CNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
CNGA120408 CAT30 ASA: CNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
CNGA120408 CAT50 ASA: CNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGA120408 CAT90 ASA: CNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT90 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGA120408 CAT10C ASA: CNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT10C | Material: Al2O3+TiC, TiN coated | Stock: Yes (from material)
CNGA120408 CAT30C ASA: CNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT30C | Material: Al2O3+TiCN, TiN coated | Stock: Yes (from material)
CNGA120408 CA20 ASA: CNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
CNGA120408 CA30 ASA: CNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CA30 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
CNGA120408 CSN20 ASA: CNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CNGA120408 CSN30 ASA: CNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGA120408 CSN40 ASA: CNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes
CNGA120408 CSN50 ASA: CNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
CNGA120408 CSN60 ASA: CNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
CNGA120408 CSN80 ASA: CNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
CNGA120408 CW40 ASA: CNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGA120408 CW80 ASA: CNGA 432 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGA120412 CAT10 ASA: CNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes
CNGA120412 CAT20 ASA: CNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
CNGA120412 CAT30 ASA: CNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes
CNGA120412 CA20 ASA: CNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CA20 | Material: Al2O3+ZrO2 | Stock: Yes (from material)
CNGA120412 CSN20 ASA: CNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CNGA120412 CSN30 ASA: CNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGA120412 CSN40 ASA: CNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes
CNGA120412 CSN50 ASA: CNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
CNGA120412 CSN60 ASA: CNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
CNGA120412 CSN80 ASA: CNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
CNGA120412 CW40 ASA: CNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGA120412 CW80 ASA: CNGA 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGA120416 CAT10 ASA: CNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGA120416 CAT20 ASA: CNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CAT20 | Material: TiC+Al2O3 | Stock: Yes (from material)
CNGA120416 CAT30 ASA: CNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGA120416 CSN20 ASA: CNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CNGA120416 CSN30 ASA: CNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGA120416 CSN40 ASA: CNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNGA120416 CSN80 ASA: CNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
CNGA120416 CW40 ASA: CNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGA120416 CW80 ASA: CNGA 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGA120708 CAT10 ASA: CNGA 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGA120708 CAT30 ASA: CNGA 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGA120708 CSN20 ASA: CNGA 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CNGA120708 CSN30 ASA: CNGA 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGA120712 CAT10 ASA: CNGA 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGA120712 CAT30 ASA: CNGA 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGA120712 CAT50 ASA: CNGA 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CAT50 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGA120712 CSN20 ASA: CNGA 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CNGA120712 CSN30 ASA: CNGA 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGA120712 CSN80 ASA: CNGA 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
CNGA120712 CW40 ASA: CNGA 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGA120712 CW80 ASA: CNGA 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 5.16 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGA120716 CAT10 ASA: CNGA 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGA120716 CSN20 ASA: CNGA 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CNGA120716 CSN30 ASA: CNGA 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGA120716 CSN80 ASA: CNGA 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | D1 (mm): 5.16 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
CNGA160608 CSN20 ASA: CNGA 542 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 0.8 | D1 (mm): 6.35 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CNGA160612 CSN20 ASA: CNGA 543 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 6.35 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CNGA160612 CSN30 ASA: CNGA 543 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 6.35 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGA160612 CW40 ASA: CNGA 543 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 6.35 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGA160612 CW80 ASA: CNGA 543 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 6.35 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGA160616 CAT10 ASA: CNGA 544 | IC (mm): 15.87 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 6.35 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGA160708 CAT10 ASA: CNGA 552 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 0.8 | D1 (mm): 6.35 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGA160708 CAT30 ASA: CNGA 552 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 0.8 | D1 (mm): 6.35 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGA160712 CAT10 ASA: CNGA 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 6.35 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGA160712 CAT30 ASA: CNGA 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 6.35 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGA160712 CSN30 ASA: CNGA 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | D1 (mm): 6.35 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGA160716 CSN30 ASA: CNGA 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | D1 (mm): 6.35 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGA190608 CAT10 ASA: CNGA 642 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 0.8 | D1 (mm): 7.93 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGA190608 CSN20 ASA: CNGA 642 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 0.8 | D1 (mm): 7.93 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CNGA190608 CSN30 ASA: CNGA 642 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 0.8 | D1 (mm): 7.93 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGA190608 CSN80 ASA: CNGA 642 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 0.8 | D1 (mm): 7.93 | Grade: CSN80 | Material: SiAlON | Stock: Yes (from material)
CNGA190612 CSN20 ASA: CNGA 643 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 7.93 | Grade: CSN20 | Material: Si3N4 | Stock: Yes (from material)
CNGA190612 CW40 ASA: CNGA 643 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 7.93 | Grade: CW40 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGA190612 CW80 ASA: CNGA 643 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.2 | D1 (mm): 7.93 | Grade: CW80 | Material: Al2O3+SiC whisker | Stock: Yes (from material)
CNGA190616 CAT10 ASA: CNGA 644 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 7.93 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGA190616 CAT30 ASA: CNGA 644 | IC (mm): 19.05 | S (mm): 6.35 | RE (mm): 1.6 | D1 (mm): 7.93 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGA190716 CAT10 ASA: CNGA 654 | IC (mm): 19.05 | S (mm): 7.94 | RE (mm): 1.6 | D1 (mm): 7.93 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
