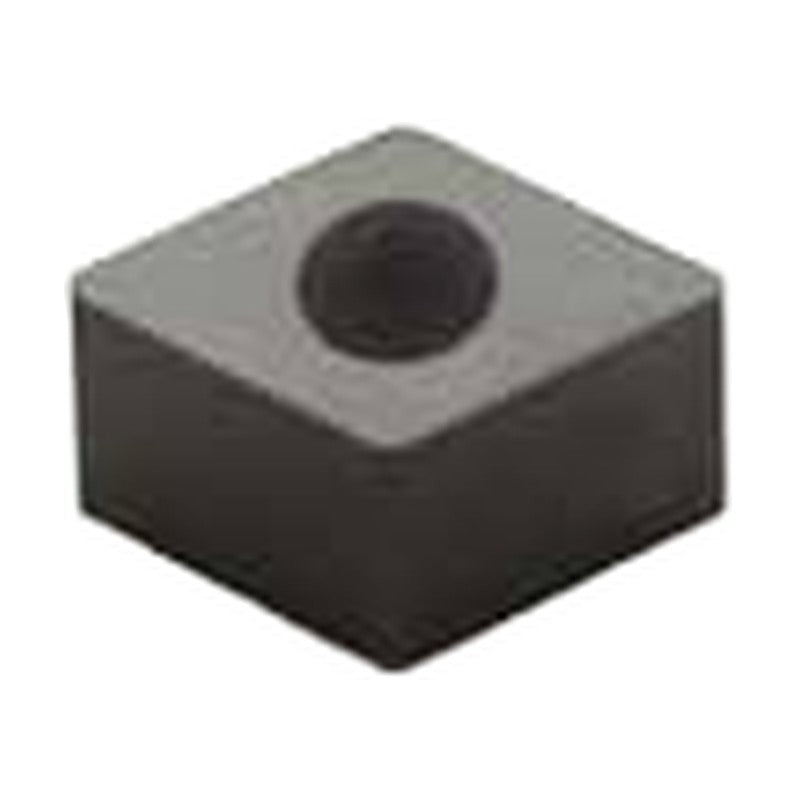

Korloy Ceramic Turning Insert CNGX

Korloy Ceramic Turning Insert CNGX

80° rhombic ceramic turning insert (ISO CNGX), negative (0° clearance), for hardened steel and cast iron.

Key features

  • Grades offered: CAT10, CAT30, CSN30, CSN40, CSN50, CSN60
  • Al2O3+TiC(N) mixed ceramic grades for hardened steel and cast iron
  • Si3N4 grades for roughing and high-speed machining of cast iron

Specifications

Material class Ceramic
Units mm
CNGX120412 CSN30 ASA: CNGX 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGX120412 CSN40 ASA: CNGX 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNGX120416 CSN40 ASA: CNGX 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNGX120708 CAT10 ASA: CNGX 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGX120708 CAT30 ASA: CNGX 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGX120708 CSN30 ASA: CNGX 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGX120712 CAT10 ASA: CNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGX120712 CAT30 ASA: CNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGX120712 CSN30 ASA: CNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGX120712 CSN40 ASA: CNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNGX120712 CSN50 ASA: CNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
CNGX120716 CAT10 ASA: CNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGX120716 CAT30 ASA: CNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGX120716 CSN30 ASA: CNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGX120716 CSN40 ASA: CNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNGX120716 CSN50 ASA: CNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
CNGX120716 CSN60 ASA: CNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
CNGX160708 CSN30 ASA: CNGX 552 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGX160712 CSN30 ASA: CNGX 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGX160712 CSN40 ASA: CNGX 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNGX160712 CSN50 ASA: CNGX 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
CNGX160716 CSN30 ASA: CNGX 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGX160716 CSN40 ASA: CNGX 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
Turning InsertsKorloy
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert CNGX

Brand Korloy·Turning Inserts

Available part numbers (23)

CNGX120412 CSN30, CNGX120412 CSN40, CNGX120416 CSN40, CNGX120708 CAT10, CNGX120708 CAT30, CNGX120708 CSN30, CNGX120712 CAT10, CNGX120712 CAT30, CNGX120712 CSN30, CNGX120712 CSN40 + 13 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CNGX120412 CSN30ASA: CNGX 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGX120412 CSN40ASA: CNGX 433 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNGX120416 CSN40ASA: CNGX 434 | IC (mm): 12.70 | S (mm): 4.76 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNGX120708 CAT10ASA: CNGX 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGX120708 CAT30ASA: CNGX 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGX120708 CSN30ASA: CNGX 452 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGX120712 CAT10ASA: CNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGX120712 CAT30ASA: CNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGX120712 CSN30ASA: CNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGX120712 CSN40ASA: CNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNGX120712 CSN50ASA: CNGX 453 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
CNGX120716 CAT10ASA: CNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT10 | Material: Al2O3+TiC | Stock: Yes (from material)
CNGX120716 CAT30ASA: CNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CAT30 | Material: Al2O3+TiCN | Stock: Yes (from material)
CNGX120716 CSN30ASA: CNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGX120716 CSN40ASA: CNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNGX120716 CSN50ASA: CNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
CNGX120716 CSN60ASA: CNGX 454 | IC (mm): 12.70 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN60 | Material: Si3N4 | Stock: Yes (from material)
CNGX160708 CSN30ASA: CNGX 552 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 0.8 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGX160712 CSN30ASA: CNGX 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGX160712 CSN40ASA: CNGX 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
CNGX160712 CSN50ASA: CNGX 553 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.2 | Grade: CSN50 | Material: Si3N4 | Stock: Yes (from material)
CNGX160716 CSN30ASA: CNGX 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN30 | Material: Si3N4 | Stock: Yes (from material)
CNGX160716 CSN40ASA: CNGX 554 | IC (mm): 15.87 | S (mm): 7.94 | RE (mm): 1.6 | Grade: CSN40 | Material: Si3N4 | Stock: Yes (from material)
