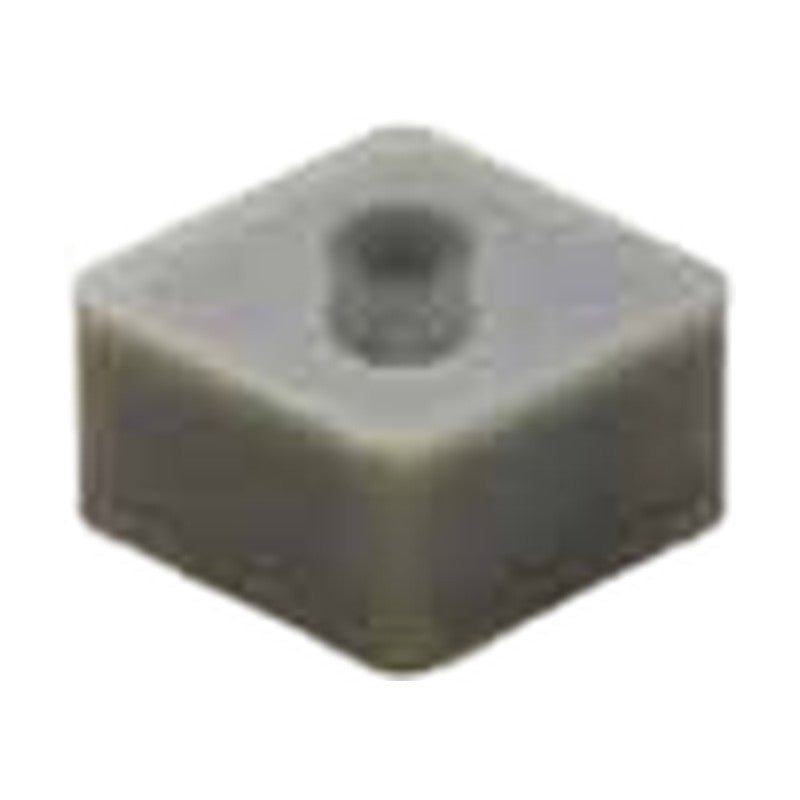

Korloy Ceramic Turning Insert CNMX

80° rhombic ceramic turning insert (ISO CNMX), negative (0° clearance), for cast iron and heat-resistant alloys.

Key features

Grades offered: CSN40, CSN50, CSN60, CSN80
Si3N4 grades for roughing and high-speed machining of cast iron
SiAlON grades for heat-resistant and nickel-based alloys

Specifications

Material class	Ceramic
Units	mm

CNMX120712 CSN40		ASA: CNMX 453 \| IC (mm): 12.70 \| S (mm): 7.94 \| RE (mm): 1.2 \| Grade: CSN40 \| Material: Si3N4 \| Stock: Yes (from material)
CNMX120712 CSN50		ASA: CNMX 453 \| IC (mm): 12.70 \| S (mm): 7.94 \| RE (mm): 1.2 \| Grade: CSN50 \| Material: Si3N4 \| Stock: Yes (from material)
CNMX120712 CSN60		ASA: CNMX 453 \| IC (mm): 12.70 \| S (mm): 7.94 \| RE (mm): 1.2 \| Grade: CSN60 \| Material: Si3N4 \| Stock: Yes (from material)
CNMX120716 CSN40		ASA: CNMX 454 \| IC (mm): 12.70 \| S (mm): 7.94 \| RE (mm): 1.6 \| Grade: CSN40 \| Material: Si3N4 \| Stock: Yes (from material)
CNMX120716 CSN50		ASA: CNMX 454 \| IC (mm): 12.70 \| S (mm): 7.94 \| RE (mm): 1.6 \| Grade: CSN50 \| Material: Si3N4 \| Stock: Yes (from material)
CNMX120716 CSN60		ASA: CNMX 454 \| IC (mm): 12.70 \| S (mm): 7.94 \| RE (mm): 1.6 \| Grade: CSN60 \| Material: Si3N4 \| Stock: Yes (from material)
CNMX120716 CSN80		ASA: CNMX 454 \| IC (mm): 12.70 \| S (mm): 7.94 \| RE (mm): 1.6 \| Grade: CSN80 \| Material: SiAlON \| Stock: Yes (from material)

Turning InsertsKorloy

7 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Ceramic Turning Insert CNMX

Brand Korloy·Turning Inserts

Available part numbers (7)

CNMX120712 CSN40, CNMX120712 CSN50, CNMX120712 CSN60, CNMX120716 CSN40, CNMX120716 CSN50, CNMX120716 CSN60, CNMX120716 CSN80

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CNMX120712 CSN40	ASA: CNMX 453 \| IC (mm): 12.70 \| S (mm): 7.94 \| RE (mm): 1.2 \| Grade: CSN40 \| Material: Si3N4 \| Stock: Yes (from material)
	CNMX120712 CSN50	ASA: CNMX 453 \| IC (mm): 12.70 \| S (mm): 7.94 \| RE (mm): 1.2 \| Grade: CSN50 \| Material: Si3N4 \| Stock: Yes (from material)
	CNMX120712 CSN60	ASA: CNMX 453 \| IC (mm): 12.70 \| S (mm): 7.94 \| RE (mm): 1.2 \| Grade: CSN60 \| Material: Si3N4 \| Stock: Yes (from material)
	CNMX120716 CSN40	ASA: CNMX 454 \| IC (mm): 12.70 \| S (mm): 7.94 \| RE (mm): 1.6 \| Grade: CSN40 \| Material: Si3N4 \| Stock: Yes (from material)
	CNMX120716 CSN50	ASA: CNMX 454 \| IC (mm): 12.70 \| S (mm): 7.94 \| RE (mm): 1.6 \| Grade: CSN50 \| Material: Si3N4 \| Stock: Yes (from material)
	CNMX120716 CSN60	ASA: CNMX 454 \| IC (mm): 12.70 \| S (mm): 7.94 \| RE (mm): 1.6 \| Grade: CSN60 \| Material: Si3N4 \| Stock: Yes (from material)
	CNMX120716 CSN80	ASA: CNMX 454 \| IC (mm): 12.70 \| S (mm): 7.94 \| RE (mm): 1.6 \| Grade: CSN80 \| Material: SiAlON \| Stock: Yes (from material)
